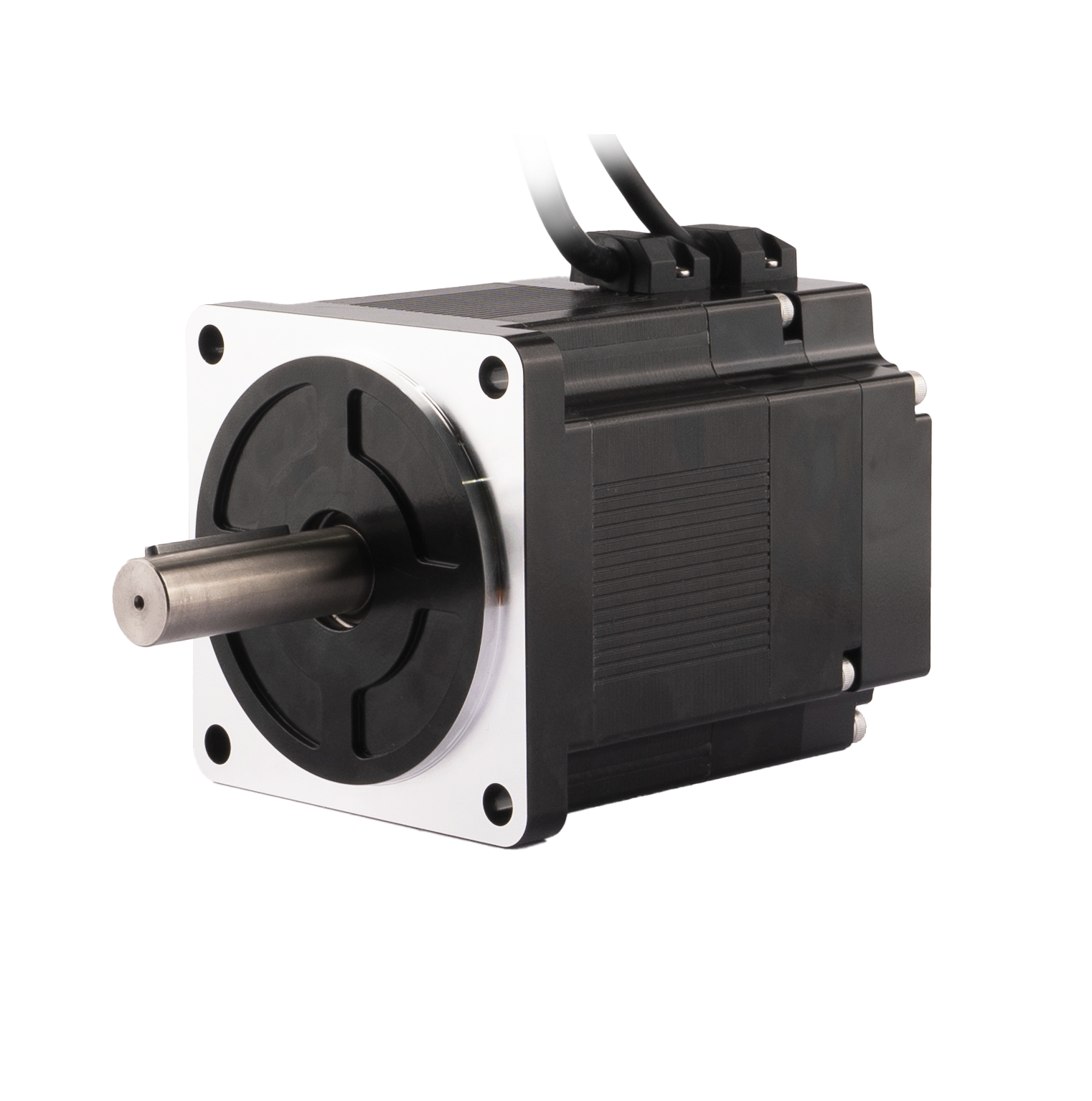

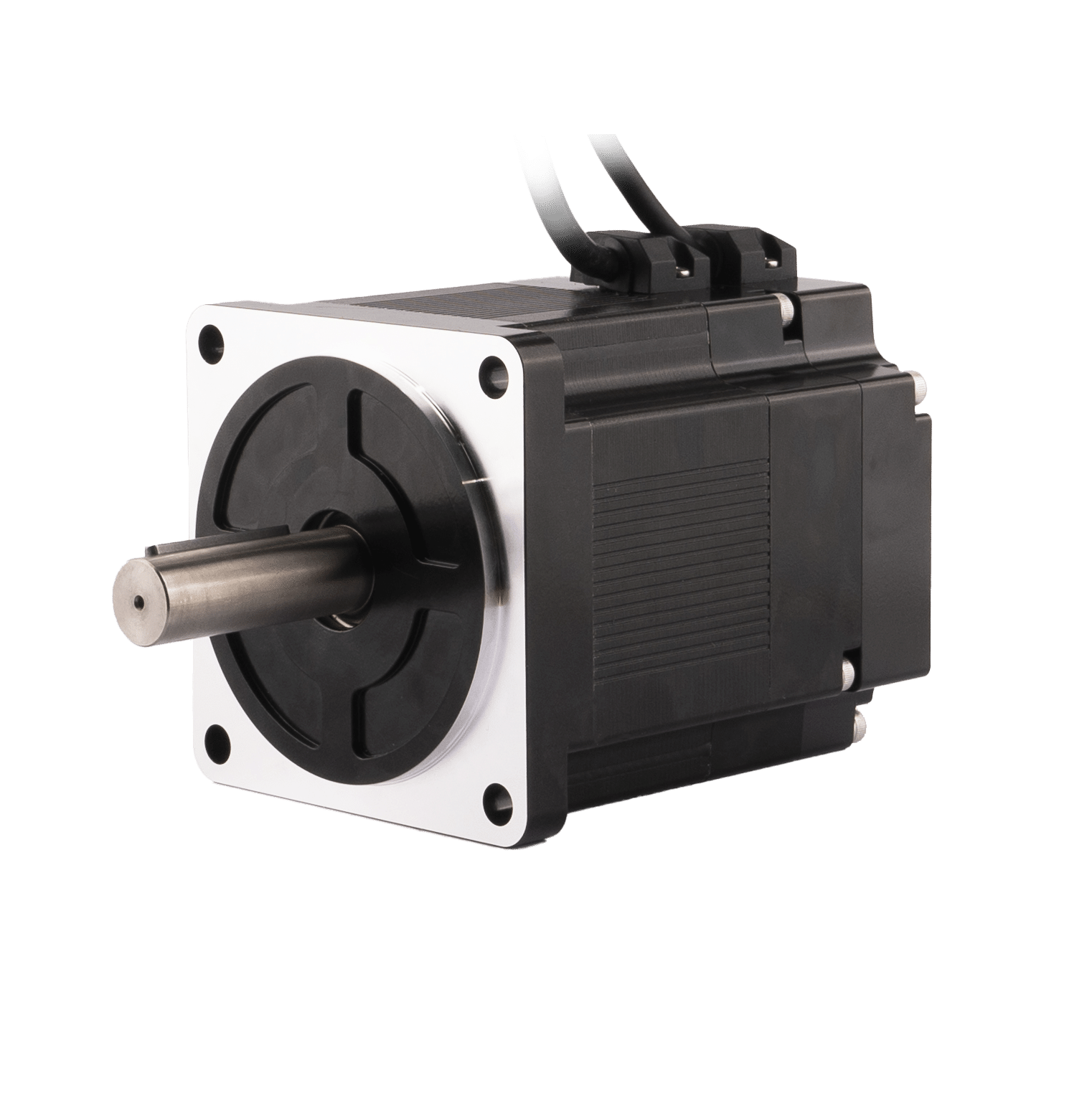

110mm Brushless DC Motor has Max. 4.6N·m rated torque and it can generate 710W capacity of rated power.
110mm motor has Star winding connection and 5 pole pairs motors with Hallsensors feed back method as standard.
In addition, gearbox and incremental encoder is available.

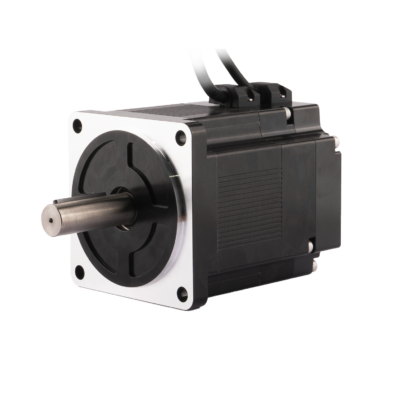

110mm Brushless DC Motor has Max. 4.6N·m rated torque and it can generate 710W capacity of rated power.
110mm motor has Star winding connection and 5 pole pairs motors with Hallsensors feed back method as standard.
In addition, gearbox and incremental encoder is available.

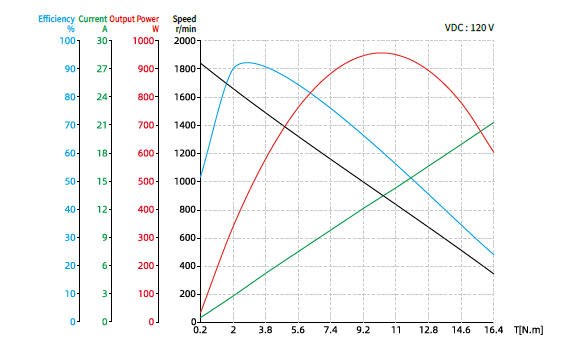

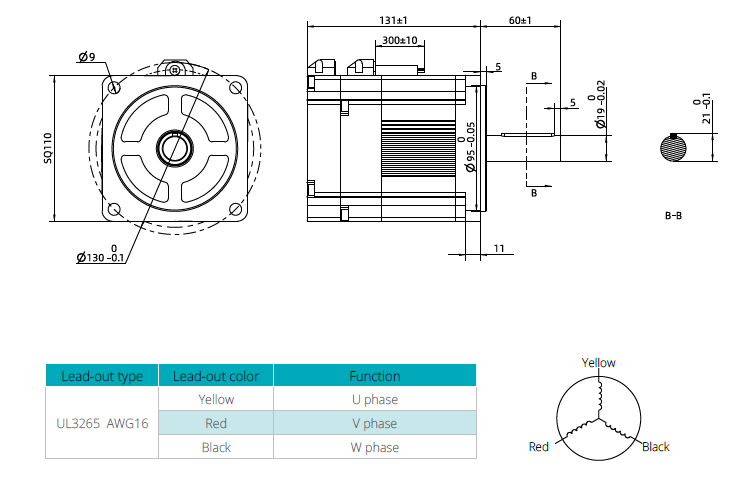

| Specification | 110ZWS132XE-1 |
|---|---|
| Pole pair | 5 mm |
| Phase resistance | 1.04 Ω |
| Phase inductance | 3.658 mH |
| Winding connection method | Star shape – |
| Insulation class | B – |
| Duty type | S1 – |
| Commutation angle | 120° – |
| Insulation strength (Withstand voltage) | 1000VAC/1KHz/1mA/1s – |
| Insulation resistance – 100 MOhm 20C | 100 MOhm 20C – |
| Weight | 3 g |
| Rated voltage | 120 V |
| Rated power | 710.0 W |
| Rated torque | 4.6 mN·m |
| Rated speed | 1500 RPM |
| Rated current | 9.6 A |
| No load speed | 1850 RPM |
| No load current | 0.65 A |
| Motor efficiency | 90 % |
| Noise(Ambient noise 20db, test distance 1m) | ＜50 dB |
| Enclosure – Ambient thermal resistance K/W 0.9 | 0.36 K/W |
| Ambient temperature | 20 °C |
| Maximum winding temperature | 88 °C |
| Torque constant | 0.479 N·m/A |
| Back-EMF constant / Effective value | 112.2 V/Krpm |
| Peak torque | 13.8 mN·m |
| Peak current | 28.8 A |
| Inertia moment | 10.2 kg·cm² |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
