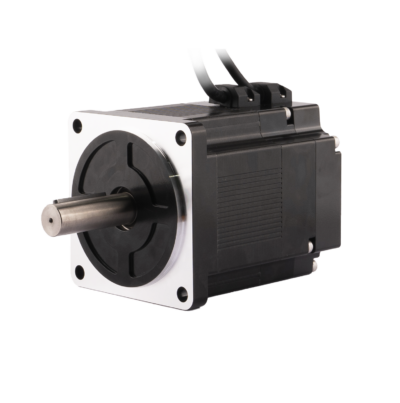

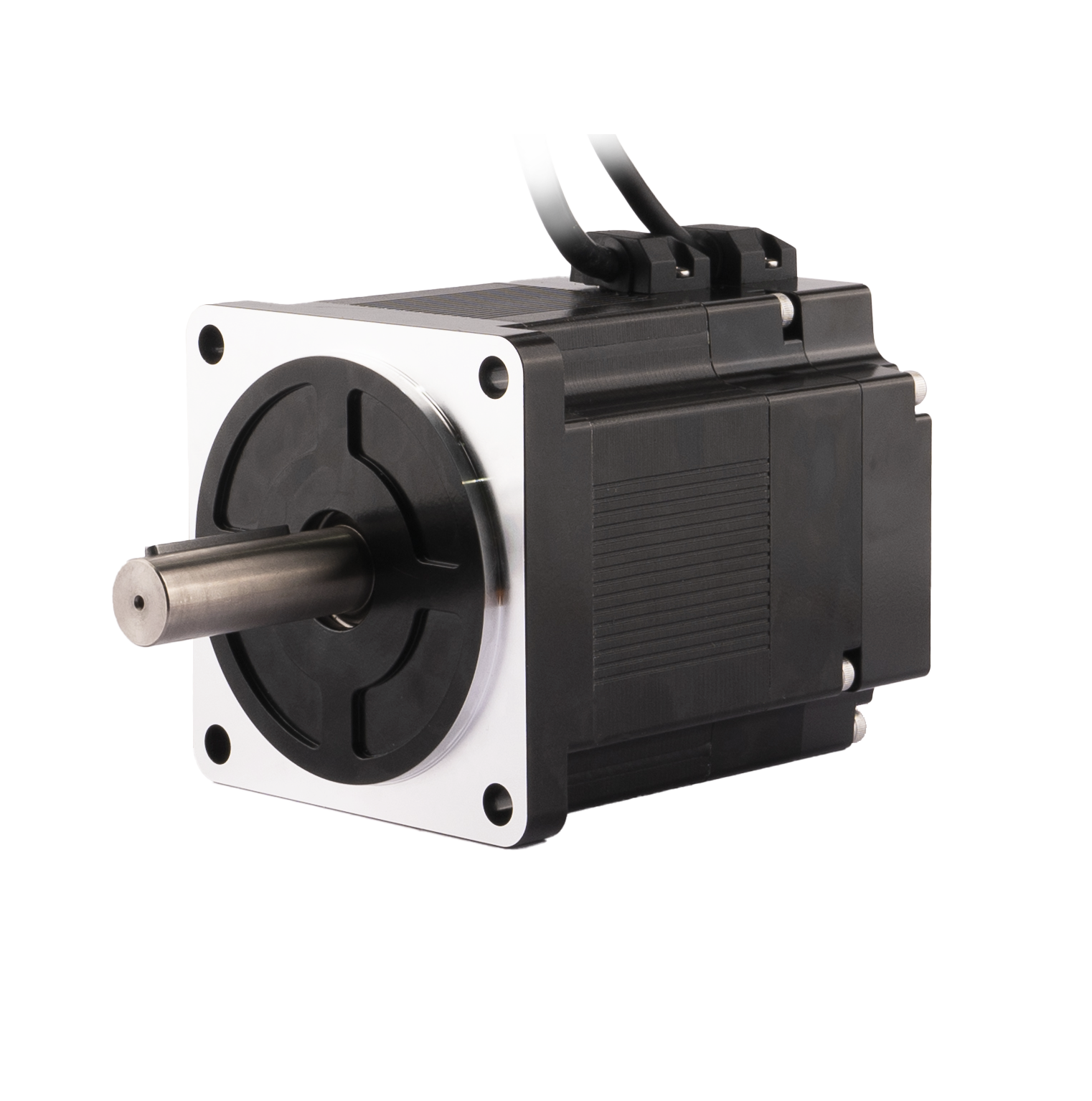

110 mm BLDC motor family for continuous-duty industrial drives requiring high torque and efficient operation. It delivers 710 W rated power at 1500 rpm with 4.6 N·m rated torque, using a star winding, 5 pole pairs, and standard Hall sensor feedback. Gearbox and incremental encoder options are available.

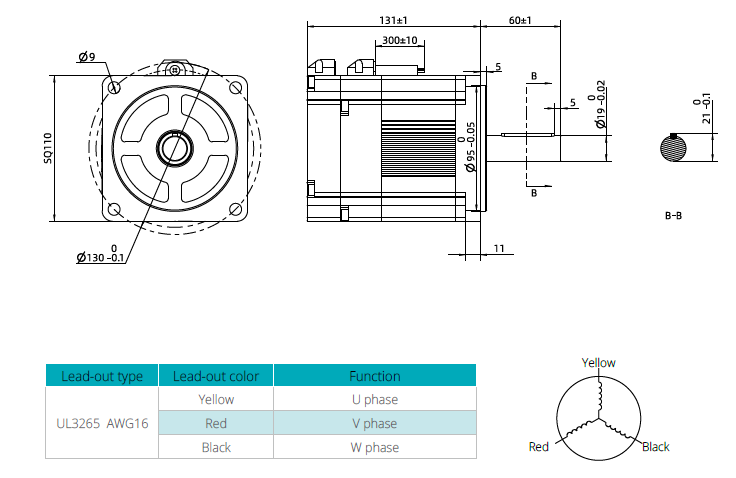

| Parameter | Unit | 110ZWS132XE-1 |
|---|---|---|
| Pole pair | mm | 5 |
| Weight | kg | 3 |
| Rated voltage | V | 120 |
| Nominal power | W | 710.0 |
| Nominal torque | mN·m | 4.6 |
| Nominal speed | RPM | 1500 |
| Nominal current | A | 9.6 |
| No-load speed | RPM | 1850 |
| No-load current | A | 0.65 |
| Motor efficiency | % | 90 |
| Noise(Ambient noise 20db, test distance 1m) | dB | ＜50 |
| Phase resistance | Ω | 1.04 |
| Enclosure – Ambient thermal resistance K/W 0.9 | K/W | 0.36 |
| Ambient temperature | °C | 20 |
| Maximum winding temperature | °C | 88 |
| Torque constant | N·m/A | 0.479 |
| Back-EMF constant (RMS) | V/Krpm | 112.2 |
| Peak torque | mN·m | 13.8 |
| Peak current | A | 28.8 |
| Rotor inertia | kg·cm² | 10.2 |
| Outer diameter | mm | 110 |
| Motor length | mm | 131 +/- 1 |
| Phase inductance | mH | 3.658 |
| Winding connection method | – | Star shape |
| Insulation class | – | B |
| Duty type | – | S1 |
| Commutation angle | – | 120° |
| Insulation strength (withstand voltage) | – | 1000VAC/1KHz/1mA/1s |
| Insulation resistance – 100 MOhm 20C | – | 100 MOhm 20C |

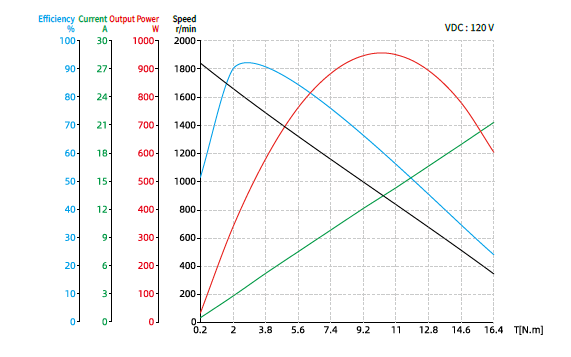

Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
