VL0716N5M
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. MwSt.

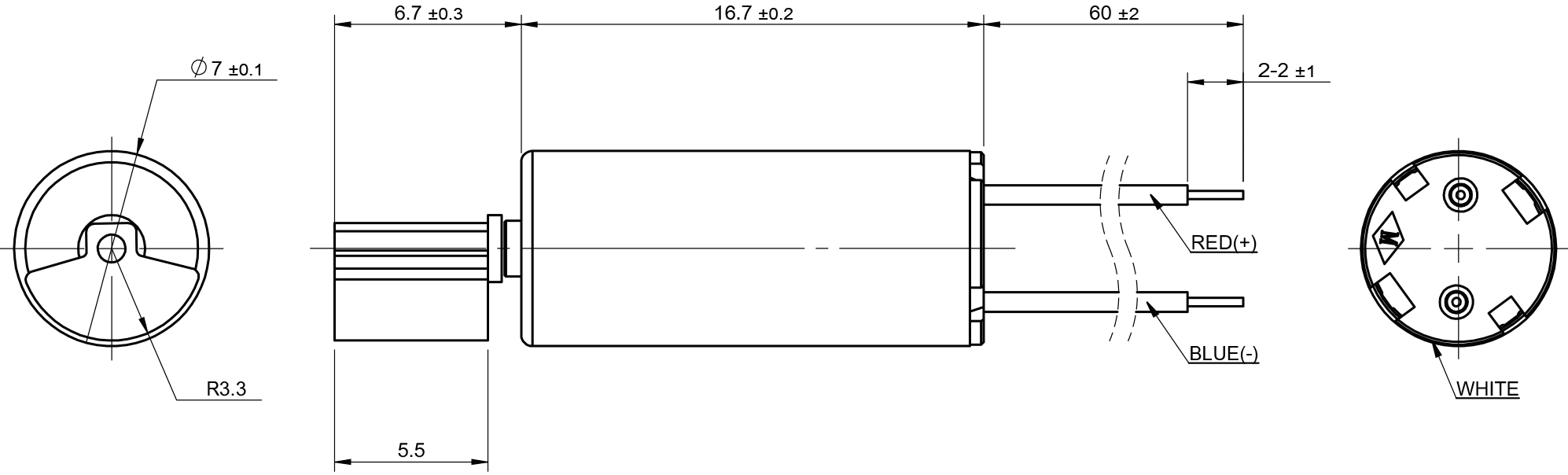

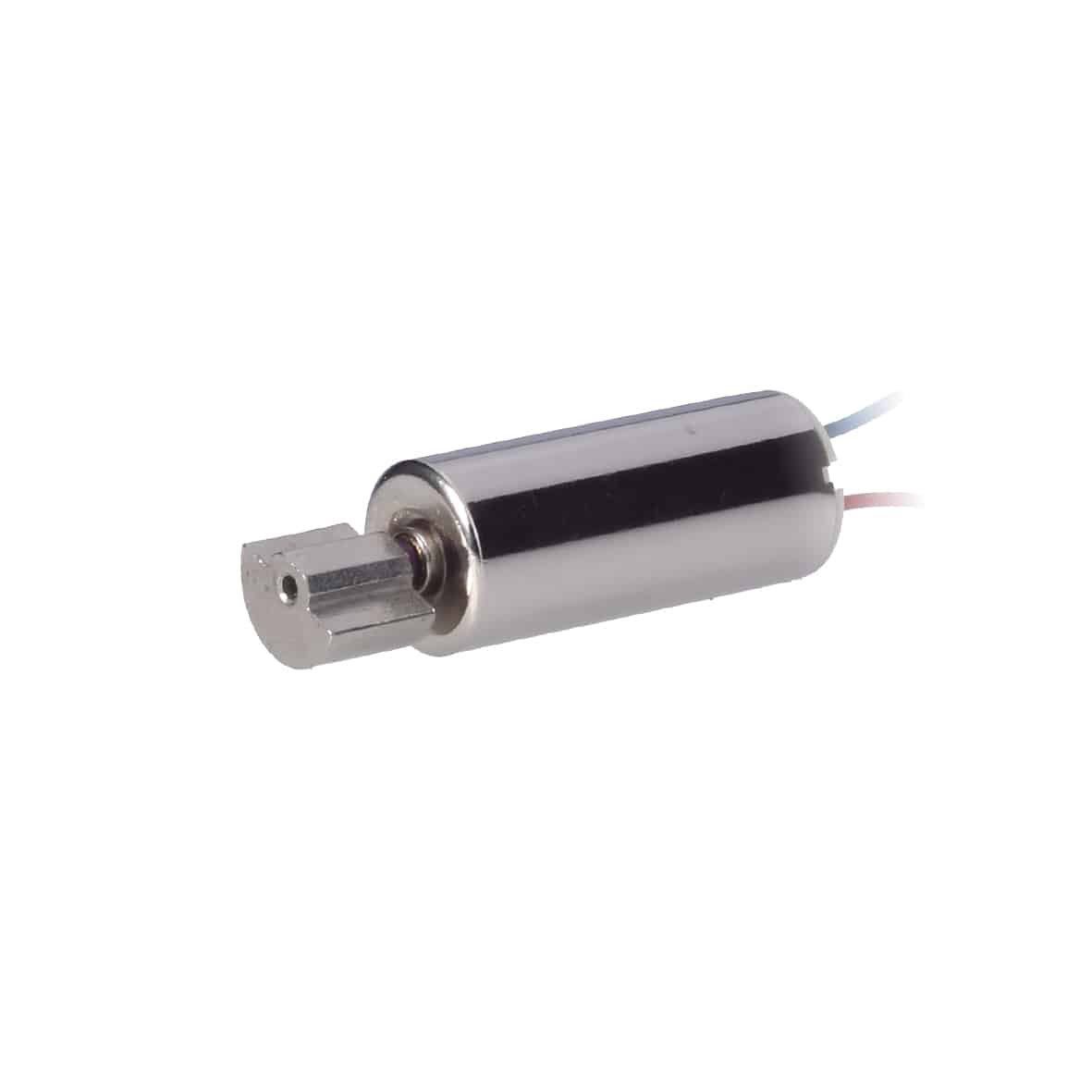

7mm micro coreless vibration motor
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. MwSt.
7mm micro coreless vibration motor
Characteristics | VL0716N5M12-105-3.0 | VL0716N5M61-130-3.0 | VL0716N5M91-140-3.7 |
---|---|---|---|
Voltage | 3.0 V | 3.0 V | 3.7 V |
Terminal resistance | 9.7 Ω | 5.6 Ω | 5.4 Ω |
Speed | 10500 rpm | 13000 rpm | 14000 rpm |
Current | 110 mA | 180 mA | 260 mA |
Starting voltage | 0.8 V | 0.8 V | 0.8 V |
Stall current | 300 mA | 500 mA | 600 mA |
Weight | 4 g | 4 g | 4 g |
Operating temperature range | -10~+80 | -10~+80 | -10~+80 |
Specification | VL0716N5M12-105-3.0 |
---|---|
Voltage | 3.0 V |
Terminal resistance | 9.7 Ω |
Speed | 10500 rpm |
Current | 110 mA |
Starting voltage | 0.8 V |
Stall current | 300 mA |
Weight | 4 g |
Operating temperature range | -10~+80 °C |
Specification | VL0716N5M61-130-3.0 |
---|---|
Voltage | 3.0 V |
Terminal resistance | 5.6 Ω |
Speed | 13000 rpm |
Current | 180 mA |
Starting voltage | 0.8 V |
Stall current | 500 mA |
Weight | 4 g |
Operating temperature range | -10~+80 °C |
Specification | VL0716N5M91-140-3.7 |
---|---|
Voltage | 3.7 V |
Terminal resistance | 5.4 Ω |
Speed | 14000 rpm |
Current | 260 mA |
Starting voltage | 0.8 V |
Stall current | 600 mA |
Weight | 4 g |
Operating temperature range | -10~+80 °C |
