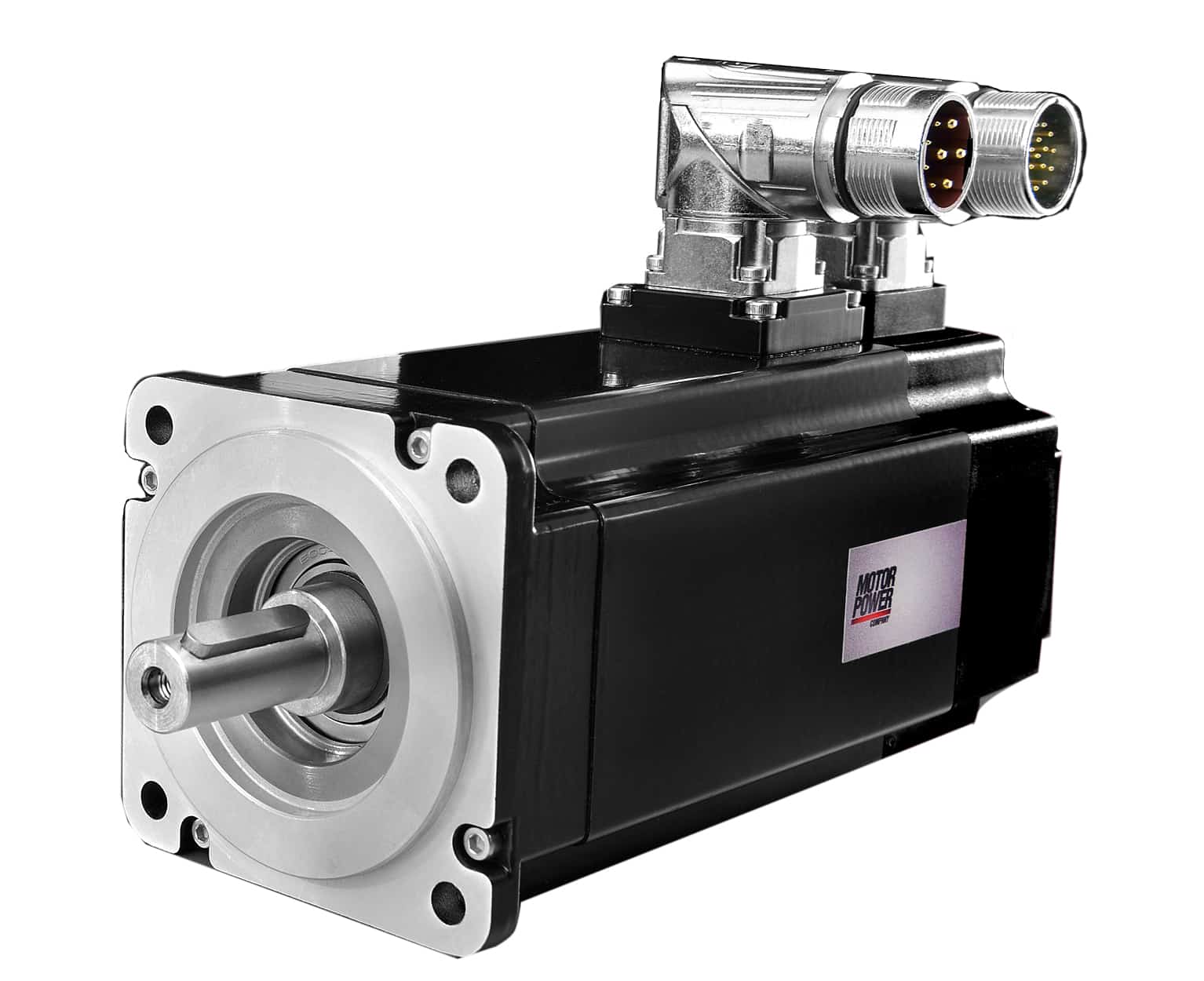

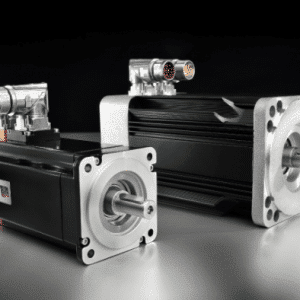

Name: TC-X 80 - KOCO MOTION
SKU: TC-X 80

Specification

Parameter	Unit	TC-X 80 1,5 21	TC-X 80 1,5 15	TC-X 80 2,8 21	TC-X 80 2,8 15	TC-X 80 4 15	TC-X 80 4 17
Continous Stall Torque (ambient temperature 0 to +40°C)	Nm	1.74	1.74	2.96	2.96	4	4
Peak Torque (ambient temperature 0 to +40°C)	Nm	4.5	4.5	8.4	8.4	12	12
Nominal Torque (ambient temperature 0 to +40°C)	Nm	1.53	1.53	2.55	2.55	3.4	3.4
Rated Voltage (ambient temperature 0 to +40°C)	Vdc	230	400	230	400	230	400
Nominal power (ambient temperature 0 to +40°C)	W	480	480	800	800	1068	1068
Continuous stall Current (ambient temperature 0 to +40°C)	Arms	3.31	1.91	5.36	3.25	4.4	2.5
Maximun Current (ambient temperature 0 to +40°C)	Arms	8.55	4.95	15.97	9.23	13.19	7.5
Nominal Current (ambient temperature 0 to +40°C)	Arms	2.99	1.73	4.99	2.88	3.85	2.19
Nominal working Speed (ambient temperature 0 to +40°C)	rpm	3000	3000	3000	3000	3000	3000
Maximum working speed 230VAC (ambient temperature 0 to +40°C)	rpm	5000	3900	5000	3900	3900	–
Maximum working speed 400VAC (ambient temperature 0 to +40°C)		–	5000	–	5000	5000	3900
Torque Constant (ambient temperature 0 to +40°C)	Nm/Arms	0.526	0.91	0.526	0.91	0.91	1.6
Voltage Constant (ambient temperature 0 to +40°C)	Vrms/Krpm	31.8	55	31.8	55	55	96
Winding resistance (ambient temperature 0 to +40°C)	Ohm	2.3	6.5	0.99	3	1.9	6.5
Winding inductance (ambient temperature 0 to +40°C)	mH	7.4	22.2	4.4	13.2	8.9	28.6
Electrical time constant (ambient temperature 0 to +40°C)	ms	3.2	3.4	4.4	4.4	4.7	4.4
Thermal Resistance (ambient temperature 0 to +40°C)	°C/W	1.67	1.67	1.32	1.32	1	1
Mechanical time constant (ambient temperature 0 to +40°C)	ms	0.8	0.75	0.62	0.63	0.54	0.6
Rotor Inertia without feedback (ambient temperature 0 to +40°C)	kg·cm²	0.64	0.64	1.16	1.16	1.58	1.58
Mass (ambient temperature 0 to +40°C)	Kg	2.25	2.25	3.05	3.05	4.1	4.1
Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	110	110	110	110	110	110
Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C)	N	350	350	350	350	350	350

Family Specification

Family Specification	Unit	TC-X 80
Time Rating		Continous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Insulation System UL/CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	-40 to 80
Ambient Humidity		5 to 85% (non-condensing)
Poles		8
Thermal Protection		PT1000
Certification		CE

Family Overview

Family Overview	Unit	TC-X 80
Flange dimensions	mm	80
Rated Output Power	Watt	480 – 1068
Rated Torque	Nm	1,53 – 3,4
Rated Speed	rpm	3000

Optionen

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Feedback

R1 – Resolver 2 poles

Brake

0 = without brake

Connection

D0 – 300mm cable lenght with AMP connectors, without thermal protection (For TC40 only) G2 – 90° M23 turnable connectors – PT 1000 on power connector H2 – 90° M23 turnable connectors – PT 1000 on signal connector
