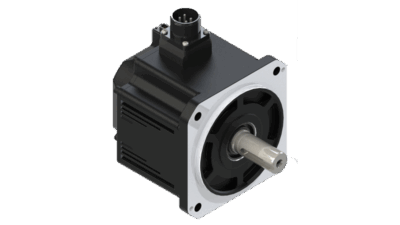

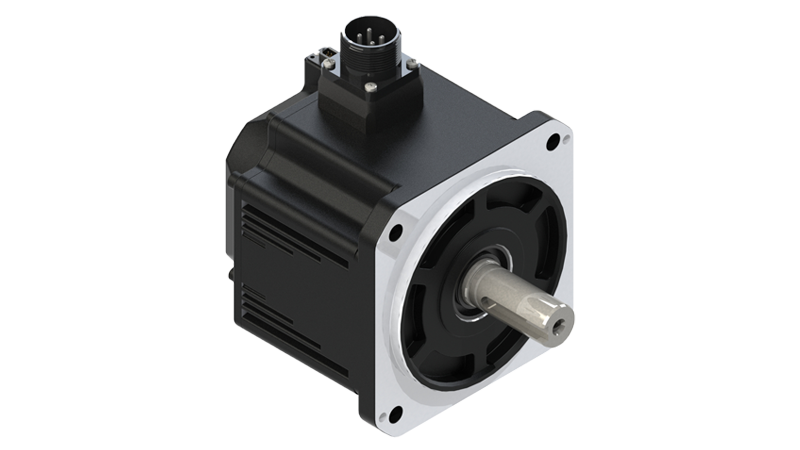

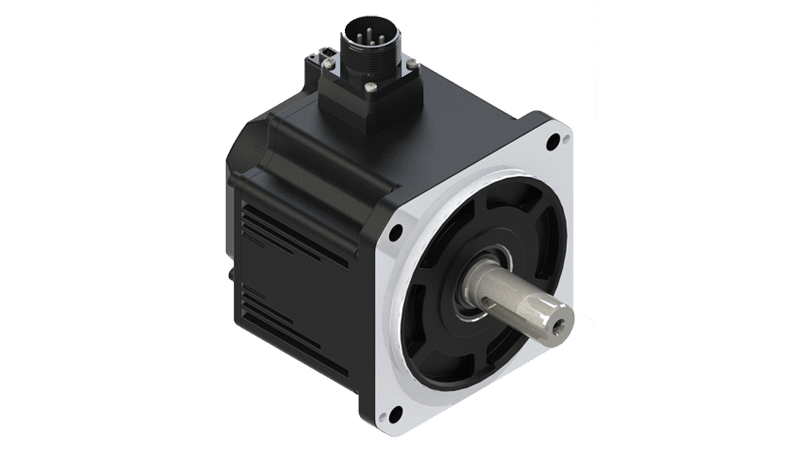

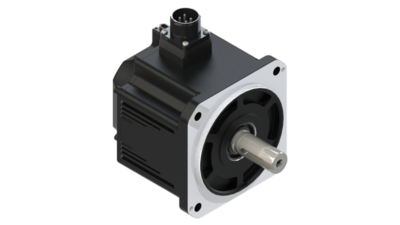

ELM1H-1300MD130E-H

Name: ELM1H-1300MD130E-H - KOCO MOTION
SKU: ELM1H-1300MD130E-H

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. 19 % MwSt.

Servo Motors

Artikelnummer: ELM1H-1300MD130E-H Kategorie: Servo Motors

Beschreibung

Beschreibung

The AC servo motors are designed by KOCO with own intellectual property rights. The servo motors use rare earth neodymium-iron-boron permanent magnet rotors, provide features of high torque density, high peak torques, low noise, low temperature rising, lower current consumption. The motors power range from 50W to 1800W, frame size range from 40mm to 130mm.

Specification	ELM1H-1300MD130E-H
Frame size	130 mm
Rated Power	1300 W
Rated Voltage	220 V
Rated Torque	8.34 N.m
Rated Speed	1500 rpm
Encoder	23-bit
Brake	Yes
Peak Speed	4500 rpm
Rated Current	9.3 Arms
Peak Current	27.9 Amp
Torque Constant	0.86 N.m/Amp
Back EMF Constant	52.4 N.m/Amp
Resistance	0.58±10% Ω
Inductance	5.8±20% mH
Inertia	21 kgm²10^(-4)
Poles	10
Encoder Type	23bit Magnetic
IP Rating	IP65
Weight	8.4 kg

Features

Rated voltage 220VAC Rated power 50W~1800W Frame size 40mm~130mm 23-bit magnetic abs encoder IP65/IP67 All series oil seal Direct connector/Aviation connector Lower noise and lower temperature rise Strong overload capacity up to 3.5times at most

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
