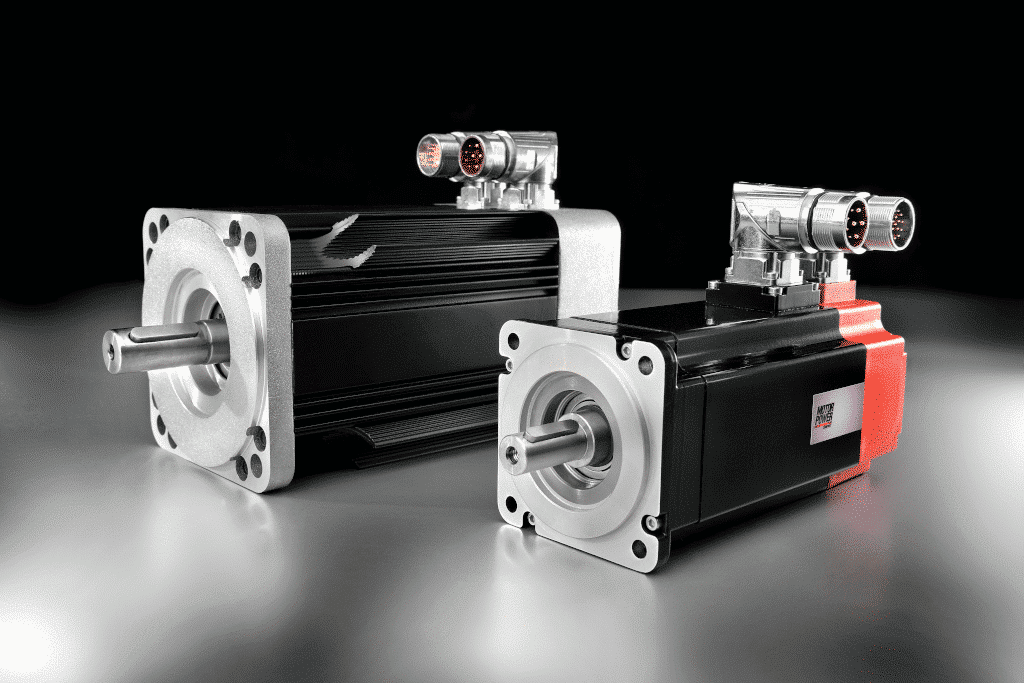

Beschreibung
Flange dimensions: 130 mm
Rated Output Power: 500 – 2000 W
Rated Torque: 2,39 – 9,55 Nm
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. MwSt.
Flange dimensions: 130 mm
Rated Output Power: 500 – 2000 W
Rated Torque: 2,39 – 9,55 Nm
Flange dimensions: 130 mm
Rated Output Power: 500 – 2000 W
Rated Torque: 2,39 – 9,55 Nm
Specification | TC-E 130 5A F1 2 | TC-E 130 5B L1 2 | TC-E 130 5C F1 2 | TC-E 130 5D F4 2 | TC-E 130 5E L1 2 | TC-E 130 5F L1 2 | TC-E 130 5G H1 2 | TC-E 130 5H F4 2 | TC-E 130 5A F1 4 | TC-E 130 5B L1 4 | TC-E 130 5C F1 4 | TC-E 130 5D F4 4 | TC-E 130 5D L3 4 | TC-E 130 5E L1 4 | TC-E 130 5F L1 4 | TC-E 130 5G H1 4 | TC-E 130 5H F4 4 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Continuous Stall Torque | 2.39 Nm | 2.86 Nm | 4.77 Nm | 5.39 Nm | 5.73 Nm | 8.59 Nm | 7.16 Nm | 9.55 Nm | 2.39 Nm | 2.86 Nm | 4.77 Nm | 5.39 Nm | 5.39 Nm | 5.73 Nm | 8.59 Nm | 7.16 Nm | 9.55 Nm |
Peak Torque | 7.16 Nm | 8.59 Nm | 14.3 Nm | 13.8 Nm | 17.19 Nm | 25.77 Nm | 21.48 Nm | 28.65 Nm | 7.16 Nm | 8.59 Nm | 14.3 Nm | 13.8 Nm | 13.8 Nm | 17.19 Nm | 25.77 Nm | 21.48 Nm | 28.65 Nm |
Nominal working Speed | 2000 rpm | 1000 rpm | 2000 rpm | 1500 rpm | 1000 rpm | 1000 rpm | 2000 rpm | 2000 rpm | 2000 rpm | 1000 rpm | 2000 rpm | 1500 rpm | 1500 rpm | 1000 rpm | 1000 rpm | 2000 rpm | 2000 rpm |
Maximum working speed | 3000 rpm | 2000 rpm | 3000 rpm | 3000 rpm | 2000 rpm | 2000 rpm | 3000 rpm | 3000 rpm | 3000 rpm | 2000 rpm | 4000 rpm | 3000 rpm | 3000 rpm | 2000 rpm | 2000 rpm | 3000 rpm | 5000 rpm |
Nominal Torque | 2.39 Nm | 2.86 Nm | 4.77 Nm | 5.39 Nm | 5.73 Nm | 8.59 Nm | 7.16 Nm | 9.55 Nm | 2.39 Nm | 2.86 Nm | 4.77 Nm | 5.39 Nm | 5.39 Nm | 5.73 Nm | 8.59 Nm | 7.16 Nm | 9.55 Nm |
Nominal Current | 3.24 Arms | 2.09 Arms | 6.29 Arms | 6.29 Arms | 4.1 Arms | 6.15 Arms | 6.74 Arms | 11.25 Arms | 3.24 Arms | 2.09 Arms | 6.29 Arms | 6.29 Arms | 2.95 Arms | 4.1 Arms | 6.15 Arms | 6.74 Arms | 11.25 Arms |
Nominal Power | 0.5 kW | 0.3 kW | 1 kW | 0.85 kW | 0.6 kW | 0.9 kW | 1.5 kW | 2 kW | 0.5 kW | 0.3 kW | 1 kW | 0.85 kW | 0.85 kW | 0.6 kW | 0.9 kW | 1.5 kW | 2 kW |
Rated winding voltage | 230 Vac | 230 Vac | 230 Vac | 230 Vac | 230 Vac | 230 Vac | 230 Vac | 230 Vac | 400 Vac | 400 Vac | 400 Vac | 400 Vac | 400 Vac | 400 Vac | 400 Vac | 400 Vac | 400 Vac |
Maximum winding voltage | 360 Vdc | 360 Vdc | 360 Vdc | 360 Vdc | 360 Vdc | 360 Vdc | 360 Vdc | 360 Vdc | 650 Vdc | 650 Vdc | 650 Vdc | 650 Vdc | 650 Vdc | 650 Vdc | 650 Vdc | 650 Vdc | 650 Vdc |
Maximum voltage to ground | 255 Vac | 255 Vac | 255 Vac | 255 Vac | 255 Vac | 255 Vac | 255 Vac | 255 Vac | 265 Vac | 265 Vac | 265 Vac | 265 Vac | 265 Vac | 265 Vac | 265 Vac | 265 Vac | 265 Vac |
Maximum current | 9.5 Arms | 6 Arms | 20 Arms | 15 Arms | 13.5 Arms | 20 Arms | 21 Arms | 33 Arms | 9.5 Arms | 6 Arms | 20 Arms | 15 Arms | 7 Arms | 13.5 Arms | 20 Arms | 21 Arms | 33 Arms |
Continuous Stall current | 2.89 Arms | 1.88 Arms | 5.77 Arms | 5.62 Arms | 3.77 Arms | 5.64 Arms | 6.18 Arms | 9.95 Arms | 2.89 Arms | 1.88 Arms | 5.77 Arms | 5.62 Arms | 2.63 Arms | 3.77 Arms | 5.64 Arms | 6.18 Arms | 9.95 Arms |
Voltage Constant | 50 Vrms/Krpm | 92 Vrms/Krpm | 50 Vrms/Krpm | 58 Vrms/Krpm | 92 Vrms/Krpm | 92 Vrms/Krpm | 70 Vrms/Krpm | 58 Vrms/Krpm | 50 Vrms/Krpm | 92 Vrms/Krpm | 50 Vrms/Krpm | 58 Vrms/Krpm | 129 Vrms/Krpm | 92 Vrms/Krpm | 92 Vrms/Krpm | 70 Vrms/Krpm | 58 Vrms/Krpm |
Torque Constant | 0.83 Nm/Arms | 1.52 Nm/Arms | 0.83 Nm/Arms | 0.96 Nm/Arms | 1.52 Nm/Arms | 1.52 Nm/Arms | 1.16 Nm/Arms | 0.96 Nm/Arms | 0.83 Nm/Arms | 1.52 Nm/Arms | 0.83 Nm/Arms | 0.96 Nm/Arms | 2.13 Nm/Arms | 1.52 Nm/Arms | 1.52 Nm/Arms | 1.16 Nm/Arms | 0.96 Nm/Arms |
Winding resistance | 0.74 Ω | 2.08 Ω | 0.74 Ω | 0.42 Ω | 2.08 Ω | 1.22 Ω | 0.64 Ω | 0.42 Ω | 0.74 Ω | 2.08 Ω | 0.74 Ω | 0.42 Ω | 1.78 Ω | 2.08 Ω | 1.22 Ω | 0.64 Ω | 0.42 Ω |
Winding inductance qu-v | 7.84 mH | 26.25 mH | 7.84 mH | 4.7 mH | 26.25 mH | 16.4 mH | 7.2 mH | 4.7 mH | 7.84 mH | 26.25 mH | 7.84 mH | 4.7 mH | 21.19 mH | 26.25 mH | 16.4 mH | 7.2 mH | 4.7 mH |
Winding inductance du-v | 7.14 mH | 23.91 mH | 7.14 mH | 4.3 mH | 23.91 mH | 14.9 mH | 6.4 mH | 4.3 mH | 7.14 mH | 23.91 mH | 7.14 mH | 4.3 mH | 19.25 mH | 23.91 mH | 14.9 mH | 6.4 mH | 4.3 mH |
Rotor inertia without holding brake | 6.62 kg·cm² | 6.62 kg·cm² | 6.62 kg·cm² | 13.49 kg·cm² | 6.62 kg·cm² | 9.69 kg·cm² | 9.69 kg·cm² | 13.49 kg·cm² | 6.62 kg·cm² | 6.62 kg·cm² | 6.62 kg·cm² | 13.49 kg·cm² | 13.49 kg·cm² | 6.62 kg·cm² | 9.69 kg·cm² | 9.69 kg·cm² | 13.49 kg·cm² |
Rotor inertia with holding brake | 6.9 kg·cm² | 6.9 kg·cm² | 6.9 kg·cm² | 14.09 kg·cm² | 6.9 kg·cm² | 9.99 kg·cm² | 9.99 kg·cm² | 14.09 kg·cm² | 6.9 kg·cm² | 6.9 kg·cm² | 6.9 kg·cm² | 14.09 kg·cm² | 14.09 kg·cm² | 6.9 kg·cm² | 9.99 kg·cm² | 9.99 kg·cm² | 14.09 kg·cm² |
Rotor high inertia without holding brake | – | – | 8.4 | – | – | – | – | – | – | – | 8.4 | – | – | – | – | – | – |
Rotor high inertia with holding brake | – | – | 8.53 | – | – | – | – | – | – | – | 8.53 | – | – | – | – | – | – |
Mass without holding brake | 7 Kg | 7 Kg | 7 Kg | 9.6 Kg | 7 Kg | 7.6 Kg | 7.6 Kg | 9.7 Kg | 7 Kg | 7 Kg | 7 Kg | 9.6 Kg | 9.6 Kg | 7 Kg | 7.6 Kg | 7.6 Kg | 9.7 Kg |
Mass with holding brake | 8.2 Kg | 8.2 Kg | 8.2 Kg | 10.9 Kg | 8.2 Kg | 8.8 Kg | 8.8 Kg | 11 Kg | 8.2 Kg | 8.2 Kg | 8.2 Kg | 10.9 Kg | 10.9 Kg | 8.2 Kg | 8.8 Kg | 8.8 Kg | 11 Kg |
High inertia mass without holding brake | – | – | 7.1 | – | – | – | – | – | – | – | 7.1 | – | – | – | – | – | – |
High inertia mass with holding brake | – | – | 8.3 | – | – | – | – | – | – | – | 8.2 | – | – | – | – | – | – |
Thermal time constant | 30 min | 30 min | 33 min | 35 min | 33 min | 35 min | 35 min | 35 min | 30 min | 30 min | 33 min | 35 min | 35 min | 33 min | 35 min | 35 min | 35 min |
Maximum radial shaft load | 670 N | 670 N | 670 N | 670 N | 670 N | 670 N | 670 N | 670 N | 670 N | 670 N | 670 N | 670 N | 670 N | 670 N | 670 N | 670 N | 670 N |
Maximum axial shaft load | 200 N | 200 N | 200 N | 200 N | 200 N | 200 N | 200 N | 200 N | 200 N | 200 N | 200 N | 200 N | 200 N | 200 N | 200 N | 200 N | 200 N |
Family Specification | TC-E 130 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5A F1 2 |
---|---|
Continuous Stall Torque | 2.39 Nm |
Peak Torque | 7.16 Nm |
Nominal working Speed | 2000 rpm |
Maximum working speed | 3000 rpm |
Nominal Torque | 2.39 Nm |
Nominal Current | 3.24 Arms |
Nominal Power | 0.5 kW |
Rated winding voltage | 230 Vac |
Maximum winding voltage | 360 Vdc |
Maximum voltage to ground | 255 Vac |
Maximum current | 9.5 Arms |
Continuous Stall current | 2.89 Arms |
Voltage Constant | 50 Vrms/Krpm |
Torque Constant | 0.83 Nm/Arms |
Winding resistance | 0.74 Ω |
Winding inductance qu-v | 7.84 mH |
Winding inductance du-v | 7.14 mH |
Rotor inertia without holding brake | 6.62 kg·cm² |
Rotor inertia with holding brake | 6.9 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 7 Kg |
Mass with holding brake | 8.2 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 30 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5A F1 2 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5A F1 2 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5B L1 2 |
---|---|
Continuous Stall Torque | 2.86 Nm |
Peak Torque | 8.59 Nm |
Nominal working Speed | 1000 rpm |
Maximum working speed | 2000 rpm |
Nominal Torque | 2.86 Nm |
Nominal Current | 2.09 Arms |
Nominal Power | 0.3 kW |
Rated winding voltage | 230 Vac |
Maximum winding voltage | 360 Vdc |
Maximum voltage to ground | 255 Vac |
Maximum current | 6 Arms |
Continuous Stall current | 1.88 Arms |
Voltage Constant | 92 Vrms/Krpm |
Torque Constant | 1.52 Nm/Arms |
Winding resistance | 2.08 Ω |
Winding inductance qu-v | 26.25 mH |
Winding inductance du-v | 23.91 mH |
Rotor inertia without holding brake | 6.62 kg·cm² |
Rotor inertia with holding brake | 6.9 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 7 Kg |
Mass with holding brake | 8.2 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 30 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5B L1 2 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5B L1 2 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5C F1 2 |
---|---|
Continuous Stall Torque | 4.77 Nm |
Peak Torque | 14.3 Nm |
Nominal working Speed | 2000 rpm |
Maximum working speed | 3000 rpm |
Nominal Torque | 4.77 Nm |
Nominal Current | 6.29 Arms |
Nominal Power | 1 kW |
Rated winding voltage | 230 Vac |
Maximum winding voltage | 360 Vdc |
Maximum voltage to ground | 255 Vac |
Maximum current | 20 Arms |
Continuous Stall current | 5.77 Arms |
Voltage Constant | 50 Vrms/Krpm |
Torque Constant | 0.83 Nm/Arms |
Winding resistance | 0.74 Ω |
Winding inductance qu-v | 7.84 mH |
Winding inductance du-v | 7.14 mH |
Rotor inertia without holding brake | 6.62 kg·cm² |
Rotor inertia with holding brake | 6.9 kg·cm² |
Rotor high inertia without holding brake | 8.4 |
Rotor high inertia with holding brake | 8.53 |
Mass without holding brake | 7 Kg |
Mass with holding brake | 8.2 Kg |
High inertia mass without holding brake | 7.1 |
High inertia mass with holding brake | 8.3 |
Thermal time constant | 33 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5C F1 2 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5C F1 2 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5D F4 2 |
---|---|
Continuous Stall Torque | 5.39 Nm |
Peak Torque | 13.8 Nm |
Nominal working Speed | 1500 rpm |
Maximum working speed | 3000 rpm |
Nominal Torque | 5.39 Nm |
Nominal Current | 6.29 Arms |
Nominal Power | 0.85 kW |
Rated winding voltage | 230 Vac |
Maximum winding voltage | 360 Vdc |
Maximum voltage to ground | 255 Vac |
Maximum current | 15 Arms |
Continuous Stall current | 5.62 Arms |
Voltage Constant | 58 Vrms/Krpm |
Torque Constant | 0.96 Nm/Arms |
Winding resistance | 0.42 Ω |
Winding inductance qu-v | 4.7 mH |
Winding inductance du-v | 4.3 mH |
Rotor inertia without holding brake | 13.49 kg·cm² |
Rotor inertia with holding brake | 14.09 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 9.6 Kg |
Mass with holding brake | 10.9 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 35 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5D F4 2 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5D F4 2 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5E L1 2 |
---|---|
Continuous Stall Torque | 5.73 Nm |
Peak Torque | 17.19 Nm |
Nominal working Speed | 1000 rpm |
Maximum working speed | 2000 rpm |
Nominal Torque | 5.73 Nm |
Nominal Current | 4.1 Arms |
Nominal Power | 0.6 kW |
Rated winding voltage | 230 Vac |
Maximum winding voltage | 360 Vdc |
Maximum voltage to ground | 255 Vac |
Maximum current | 13.5 Arms |
Continuous Stall current | 3.77 Arms |
Voltage Constant | 92 Vrms/Krpm |
Torque Constant | 1.52 Nm/Arms |
Winding resistance | 2.08 Ω |
Winding inductance qu-v | 26.25 mH |
Winding inductance du-v | 23.91 mH |
Rotor inertia without holding brake | 6.62 kg·cm² |
Rotor inertia with holding brake | 6.9 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 7 Kg |
Mass with holding brake | 8.2 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 33 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5E L1 2 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5E L1 2 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5F L1 2 |
---|---|
Continuous Stall Torque | 8.59 Nm |
Peak Torque | 25.77 Nm |
Nominal working Speed | 1000 rpm |
Maximum working speed | 2000 rpm |
Nominal Torque | 8.59 Nm |
Nominal Current | 6.15 Arms |
Nominal Power | 0.9 kW |
Rated winding voltage | 230 Vac |
Maximum winding voltage | 360 Vdc |
Maximum voltage to ground | 255 Vac |
Maximum current | 20 Arms |
Continuous Stall current | 5.64 Arms |
Voltage Constant | 92 Vrms/Krpm |
Torque Constant | 1.52 Nm/Arms |
Winding resistance | 1.22 Ω |
Winding inductance qu-v | 16.4 mH |
Winding inductance du-v | 14.9 mH |
Rotor inertia without holding brake | 9.69 kg·cm² |
Rotor inertia with holding brake | 9.99 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 7.6 Kg |
Mass with holding brake | 8.8 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 35 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5F L1 2 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5F L1 2 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5G H1 2 |
---|---|
Continuous Stall Torque | 7.16 Nm |
Peak Torque | 21.48 Nm |
Nominal working Speed | 2000 rpm |
Maximum working speed | 3000 rpm |
Nominal Torque | 7.16 Nm |
Nominal Current | 6.74 Arms |
Nominal Power | 1.5 kW |
Rated winding voltage | 230 Vac |
Maximum winding voltage | 360 Vdc |
Maximum voltage to ground | 255 Vac |
Maximum current | 21 Arms |
Continuous Stall current | 6.18 Arms |
Voltage Constant | 70 Vrms/Krpm |
Torque Constant | 1.16 Nm/Arms |
Winding resistance | 0.64 Ω |
Winding inductance qu-v | 7.2 mH |
Winding inductance du-v | 6.4 mH |
Rotor inertia without holding brake | 9.69 kg·cm² |
Rotor inertia with holding brake | 9.99 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 7.6 Kg |
Mass with holding brake | 8.8 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 35 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5G H1 2 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5G H1 2 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5H F4 2 |
---|---|
Continuous Stall Torque | 9.55 Nm |
Peak Torque | 28.65 Nm |
Nominal working Speed | 2000 rpm |
Maximum working speed | 3000 rpm |
Nominal Torque | 9.55 Nm |
Nominal Current | 11.25 Arms |
Nominal Power | 2 kW |
Rated winding voltage | 230 Vac |
Maximum winding voltage | 360 Vdc |
Maximum voltage to ground | 255 Vac |
Maximum current | 33 Arms |
Continuous Stall current | 9.95 Arms |
Voltage Constant | 58 Vrms/Krpm |
Torque Constant | 0.96 Nm/Arms |
Winding resistance | 0.42 Ω |
Winding inductance qu-v | 4.7 mH |
Winding inductance du-v | 4.3 mH |
Rotor inertia without holding brake | 13.49 kg·cm² |
Rotor inertia with holding brake | 14.09 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 9.7 Kg |
Mass with holding brake | 11 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 35 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5H F4 2 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5H F4 2 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5A F1 4 |
---|---|
Continuous Stall Torque | 2.39 Nm |
Peak Torque | 7.16 Nm |
Nominal working Speed | 2000 rpm |
Maximum working speed | 3000 rpm |
Nominal Torque | 2.39 Nm |
Nominal Current | 3.24 Arms |
Nominal Power | 0.5 kW |
Rated winding voltage | 400 Vac |
Maximum winding voltage | 650 Vdc |
Maximum voltage to ground | 265 Vac |
Maximum current | 9.5 Arms |
Continuous Stall current | 2.89 Arms |
Voltage Constant | 50 Vrms/Krpm |
Torque Constant | 0.83 Nm/Arms |
Winding resistance | 0.74 Ω |
Winding inductance qu-v | 7.84 mH |
Winding inductance du-v | 7.14 mH |
Rotor inertia without holding brake | 6.62 kg·cm² |
Rotor inertia with holding brake | 6.9 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 7 Kg |
Mass with holding brake | 8.2 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 30 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5A F1 4 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5A F1 4 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5B L1 4 |
---|---|
Continuous Stall Torque | 2.86 Nm |
Peak Torque | 8.59 Nm |
Nominal working Speed | 1000 rpm |
Maximum working speed | 2000 rpm |
Nominal Torque | 2.86 Nm |
Nominal Current | 2.09 Arms |
Nominal Power | 0.3 kW |
Rated winding voltage | 400 Vac |
Maximum winding voltage | 650 Vdc |
Maximum voltage to ground | 265 Vac |
Maximum current | 6 Arms |
Continuous Stall current | 1.88 Arms |
Voltage Constant | 92 Vrms/Krpm |
Torque Constant | 1.52 Nm/Arms |
Winding resistance | 2.08 Ω |
Winding inductance qu-v | 26.25 mH |
Winding inductance du-v | 23.91 mH |
Rotor inertia without holding brake | 6.62 kg·cm² |
Rotor inertia with holding brake | 6.9 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 7 Kg |
Mass with holding brake | 8.2 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 30 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5B L1 4 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5B L1 4 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5C F1 4 |
---|---|
Continuous Stall Torque | 4.77 Nm |
Peak Torque | 14.3 Nm |
Nominal working Speed | 2000 rpm |
Maximum working speed | 4000 rpm |
Nominal Torque | 4.77 Nm |
Nominal Current | 6.29 Arms |
Nominal Power | 1 kW |
Rated winding voltage | 400 Vac |
Maximum winding voltage | 650 Vdc |
Maximum voltage to ground | 265 Vac |
Maximum current | 20 Arms |
Continuous Stall current | 5.77 Arms |
Voltage Constant | 50 Vrms/Krpm |
Torque Constant | 0.83 Nm/Arms |
Winding resistance | 0.74 Ω |
Winding inductance qu-v | 7.84 mH |
Winding inductance du-v | 7.14 mH |
Rotor inertia without holding brake | 6.62 kg·cm² |
Rotor inertia with holding brake | 6.9 kg·cm² |
Rotor high inertia without holding brake | 8.4 |
Rotor high inertia with holding brake | 8.53 |
Mass without holding brake | 7 Kg |
Mass with holding brake | 8.2 Kg |
High inertia mass without holding brake | 7.1 |
High inertia mass with holding brake | 8.2 |
Thermal time constant | 33 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5C F1 4 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5C F1 4 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5D F4 4 |
---|---|
Continuous Stall Torque | 5.39 Nm |
Peak Torque | 13.8 Nm |
Nominal working Speed | 1500 rpm |
Maximum working speed | 3000 rpm |
Nominal Torque | 5.39 Nm |
Nominal Current | 6.29 Arms |
Nominal Power | 0.85 kW |
Rated winding voltage | 400 Vac |
Maximum winding voltage | 650 Vdc |
Maximum voltage to ground | 265 Vac |
Maximum current | 15 Arms |
Continuous Stall current | 5.62 Arms |
Voltage Constant | 58 Vrms/Krpm |
Torque Constant | 0.96 Nm/Arms |
Winding resistance | 0.42 Ω |
Winding inductance qu-v | 4.7 mH |
Winding inductance du-v | 4.3 mH |
Rotor inertia without holding brake | 13.49 kg·cm² |
Rotor inertia with holding brake | 14.09 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 9.6 Kg |
Mass with holding brake | 10.9 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 35 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5D F4 4 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5D F4 4 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5D L3 4 |
---|---|
Continuous Stall Torque | 5.39 Nm |
Peak Torque | 13.8 Nm |
Nominal working Speed | 1500 rpm |
Maximum working speed | 3000 rpm |
Nominal Torque | 5.39 Nm |
Nominal Current | 2.95 Arms |
Nominal Power | 0.85 kW |
Rated winding voltage | 400 Vac |
Maximum winding voltage | 650 Vdc |
Maximum voltage to ground | 265 Vac |
Maximum current | 7 Arms |
Continuous Stall current | 2.63 Arms |
Voltage Constant | 129 Vrms/Krpm |
Torque Constant | 2.13 Nm/Arms |
Winding resistance | 1.78 Ω |
Winding inductance qu-v | 21.19 mH |
Winding inductance du-v | 19.25 mH |
Rotor inertia without holding brake | 13.49 kg·cm² |
Rotor inertia with holding brake | 14.09 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 9.6 Kg |
Mass with holding brake | 10.9 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 35 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5D L3 4 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5D L3 4 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5E L1 4 |
---|---|
Continuous Stall Torque | 5.73 Nm |
Peak Torque | 17.19 Nm |
Nominal working Speed | 1000 rpm |
Maximum working speed | 2000 rpm |
Nominal Torque | 5.73 Nm |
Nominal Current | 4.1 Arms |
Nominal Power | 0.6 kW |
Rated winding voltage | 400 Vac |
Maximum winding voltage | 650 Vdc |
Maximum voltage to ground | 265 Vac |
Maximum current | 13.5 Arms |
Continuous Stall current | 3.77 Arms |
Voltage Constant | 92 Vrms/Krpm |
Torque Constant | 1.52 Nm/Arms |
Winding resistance | 2.08 Ω |
Winding inductance qu-v | 26.25 mH |
Winding inductance du-v | 23.91 mH |
Rotor inertia without holding brake | 6.62 kg·cm² |
Rotor inertia with holding brake | 6.9 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 7 Kg |
Mass with holding brake | 8.2 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 33 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5E L1 4 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5E L1 4 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5F L1 4 |
---|---|
Continuous Stall Torque | 8.59 Nm |
Peak Torque | 25.77 Nm |
Nominal working Speed | 1000 rpm |
Maximum working speed | 2000 rpm |
Nominal Torque | 8.59 Nm |
Nominal Current | 6.15 Arms |
Nominal Power | 0.9 kW |
Rated winding voltage | 400 Vac |
Maximum winding voltage | 650 Vdc |
Maximum voltage to ground | 265 Vac |
Maximum current | 20 Arms |
Continuous Stall current | 5.64 Arms |
Voltage Constant | 92 Vrms/Krpm |
Torque Constant | 1.52 Nm/Arms |
Winding resistance | 1.22 Ω |
Winding inductance qu-v | 16.4 mH |
Winding inductance du-v | 14.9 mH |
Rotor inertia without holding brake | 9.69 kg·cm² |
Rotor inertia with holding brake | 9.99 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 7.6 Kg |
Mass with holding brake | 8.8 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 35 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5F L1 4 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5F L1 4 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5G H1 4 |
---|---|
Continuous Stall Torque | 7.16 Nm |
Peak Torque | 21.48 Nm |
Nominal working Speed | 2000 rpm |
Maximum working speed | 3000 rpm |
Nominal Torque | 7.16 Nm |
Nominal Current | 6.74 Arms |
Nominal Power | 1.5 kW |
Rated winding voltage | 400 Vac |
Maximum winding voltage | 650 Vdc |
Maximum voltage to ground | 265 Vac |
Maximum current | 21 Arms |
Continuous Stall current | 6.18 Arms |
Voltage Constant | 70 Vrms/Krpm |
Torque Constant | 1.16 Nm/Arms |
Winding resistance | 0.64 Ω |
Winding inductance qu-v | 7.2 mH |
Winding inductance du-v | 6.4 mH |
Rotor inertia without holding brake | 9.69 kg·cm² |
Rotor inertia with holding brake | 9.99 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 7.6 Kg |
Mass with holding brake | 8.8 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 35 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5G H1 4 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5G H1 4 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Specification | TC-E 130 5H F4 4 |
---|---|
Continuous Stall Torque | 9.55 Nm |
Peak Torque | 28.65 Nm |
Nominal working Speed | 2000 rpm |
Maximum working speed | 5000 rpm |
Nominal Torque | 9.55 Nm |
Nominal Current | 11.25 Arms |
Nominal Power | 2 kW |
Rated winding voltage | 400 Vac |
Maximum winding voltage | 650 Vdc |
Maximum voltage to ground | 265 Vac |
Maximum current | 33 Arms |
Continuous Stall current | 9.95 Arms |
Voltage Constant | 58 Vrms/Krpm |
Torque Constant | 0.96 Nm/Arms |
Winding resistance | 0.42 Ω |
Winding inductance qu-v | 4.7 mH |
Winding inductance du-v | 4.3 mH |
Rotor inertia without holding brake | 13.49 kg·cm² |
Rotor inertia with holding brake | 14.09 kg·cm² |
Rotor high inertia without holding brake | – |
Rotor high inertia with holding brake | – |
Mass without holding brake | 9.7 Kg |
Mass with holding brake | 11 Kg |
High inertia mass without holding brake | – |
High inertia mass with holding brake | – |
Thermal time constant | 35 min |
Maximum radial shaft load | 670 N |
Maximum axial shaft load | 200 N |
Family Specification | TC-E 130 5H F4 4 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 54 Standard IP 65 with shaft sealing |
Ambient Temperature | -20 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 10 |
Certification | UL 1004, CSA, CE, RoHS, Reach compliance |
Recommendation | Rated output with 400x400x20mm steel heat sink flange coupling – Ambient temperature 40°C – Derating must be considered if the oil seal is applied |
Family Overview | TC-E 130 5H F4 4 |
---|---|
Flange dimensions | 130 mm |
Rated Output Power | 500 – 2000 Watt |
Rated Torque | 2,39 – 9,55 Nm |
Rated Speed | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
