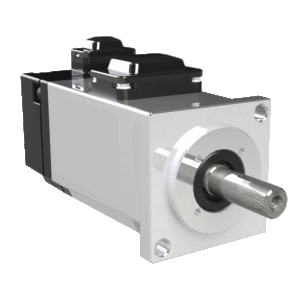

Beschreibung
Flange dimensions: 80 mm
Rated Output Power: 480 – 1068 W
Rated Torque: 1,53 – 3,4 Nm
Rated Speed: 3000 rpm
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. 19 % MwSt.
Flange dimensions: 80 mm
Rated Output Power: 480 – 1068 W
Rated Torque: 1,53 – 3,4 Nm
Rated Speed: 3000 rpm
Flange dimensions: 80 mm
Rated Output Power: 480 – 1068 W
Rated Torque: 1,53 – 3,4 Nm
Rated Speed: 3000 rpm
Specification | TC 80 1,5 21 |
---|---|
Continous Stall Torque | 1.74 Nm |
Peak Torque | 4.5 Nm |
Nominal Torque | 1.53 Nm |
Rated Voltage | 230 V |
Nominal power | 480 W |
Continuous stall Current | 3.31 Arms |
Maximun Current | 8.55 Arms |
Nominal Current | 2.99 Arms |
Nominal working Speed | 3000 rpm |
Maximum working speed 230VAC | 5000 rpm |
Maximum working speed 400VAC | – |
Torque Constant | 0.526 Nm/Arms |
Voltage Constant | 31.8 Vrms/Krpm |
Winding resistance | 2.3 Ω |
Winding inductance | 7.4 mH |
Electrical time constant | 3.2 ms |
Thermal Resistance | 1.67 °C/W |
Mechanical time constant | 0.8 ms |
Rotor Inertia without brake and without feedback | 0.64 kg·cm² |
Mass without holding brake | 2.25 Kg |
Mass with holding brake | 2.97 Kg |
Maximum axial shaft load applied on the shaft’s center | 110 N |
Maximun radial shaft load applied on the shaft’s center | 350 N |
Family Specification | TC 80 1,5 21 |
---|---|
Time Rating | Continuous |
Insulation Class | F |
Enclosure | Totally enclosed. Self-cooled |
Protection Class | IP 65 standard on the body |
Insulation System UL/CSA | cURus , DV155J File nr. : E216686 |
Ambient Temperature | 0 to 40 °C |
Ambient Humidity | 5 to 85% (non-condensing) % |
Poles | 8 |
Thermal Protection | PT 1000 |
Certification | CE |
Recommendation | Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing |
Family Overview | TC 80 1,5 21 |
---|---|
Flange dimensions | 80 mm |
Rated Output Power | 480 – 1068 Watt |
Rated Torque | 1,53 – 3,4 Nm |
Rated Speed | 3000 rpm |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
