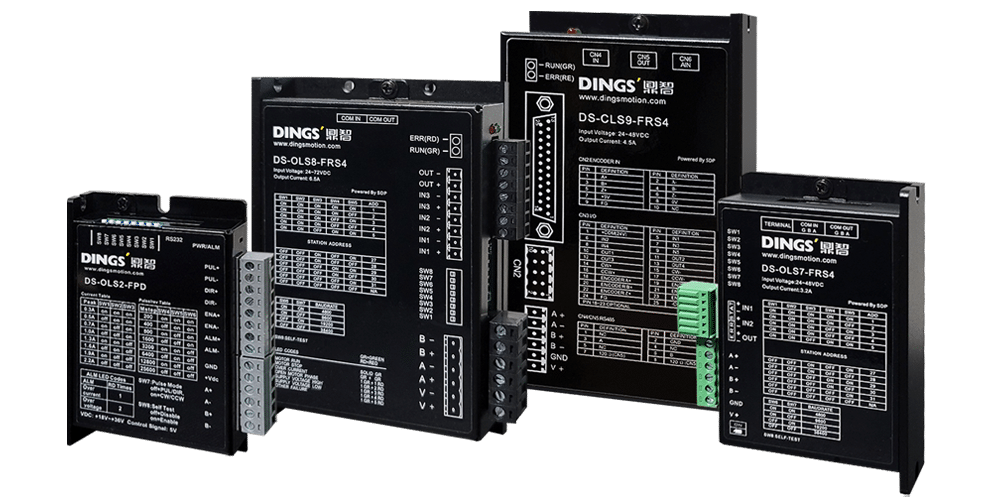

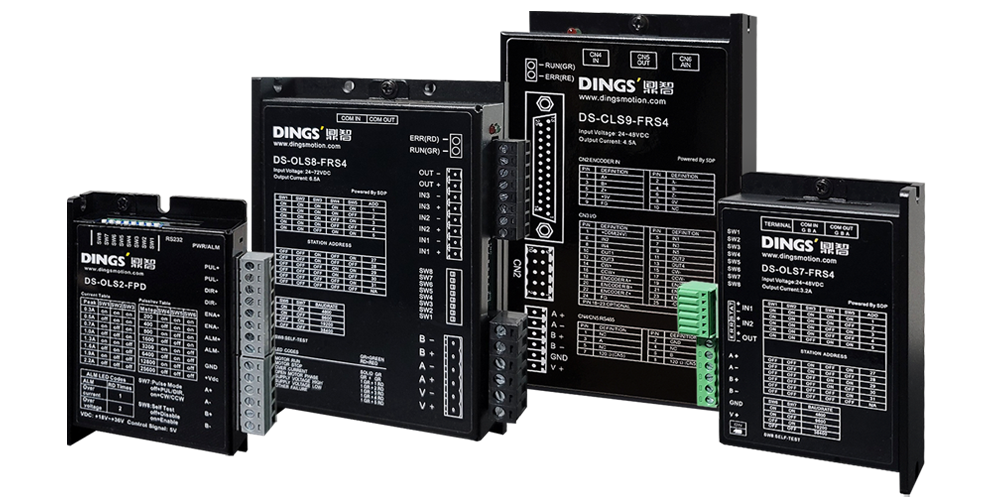

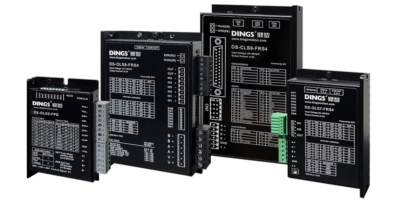

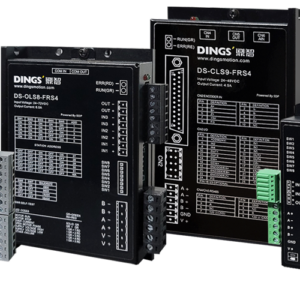

KOCO offers 3 different microstepping drivers which is pulse and direction mode based. And also dynamic closed loop stand alone electronic is available.
From Min. 2.2A [up to NEMA17 Stepper size] to Max. 7.6A [up to NEMA34 Stepper size], convenient drivers can be chosen. Pulse/RS485 supported closed loop driver and Pulse/RS485/CC-Link supported open loop electronics are available.
KOCO offers 3 different microstepping drivers which is pulse and direction mode based. And also dynamic closed loop stand alone electronic is available.
From Min. 2.2A [up to NEMA17 Stepper size] to Max. 7.6A [up to NEMA34 Stepper size], convenient drivers can be chosen. Pulse/RS485 supported closed loop driver and Pulse/RS485/CC-Link supported open loop electronics are available.
| Parameter | Unit | DS-OLS22-FPD | DS-CLS9-FCAO |
|---|---|---|---|
| Adapted Motor | 2-phase hybrid stepping motor | 2-phase hybrid stepping motor | |
| Weight | g | About 96 | About 500 |
| Operating temperature/Pulse Signal | Avoid dust, oil mist and corrosive gas | Avoid dust, oil mist and corrosive gas | |
| Humidity | <85% RH, no condensation | <85% RH, no condensation | |
| Temperature | °C | 0 ~ 40 | 0 ~ 40 |
| Heat Dissipation | Install in a ventilated environment | Install in a ventilated environment | |
| Power Supply | V | DC 12 – 48 | DC 24 – 48 |
| Output Current | A | 0.3 – 3 | 0.1 – 6.5 |
| Driving Method | Full-bridge bipolar PWM | Full-bridge Bipolar PWM | |
| Size | mm | 92.5 × 21 × 56 | 156 × 97 × 33.5 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

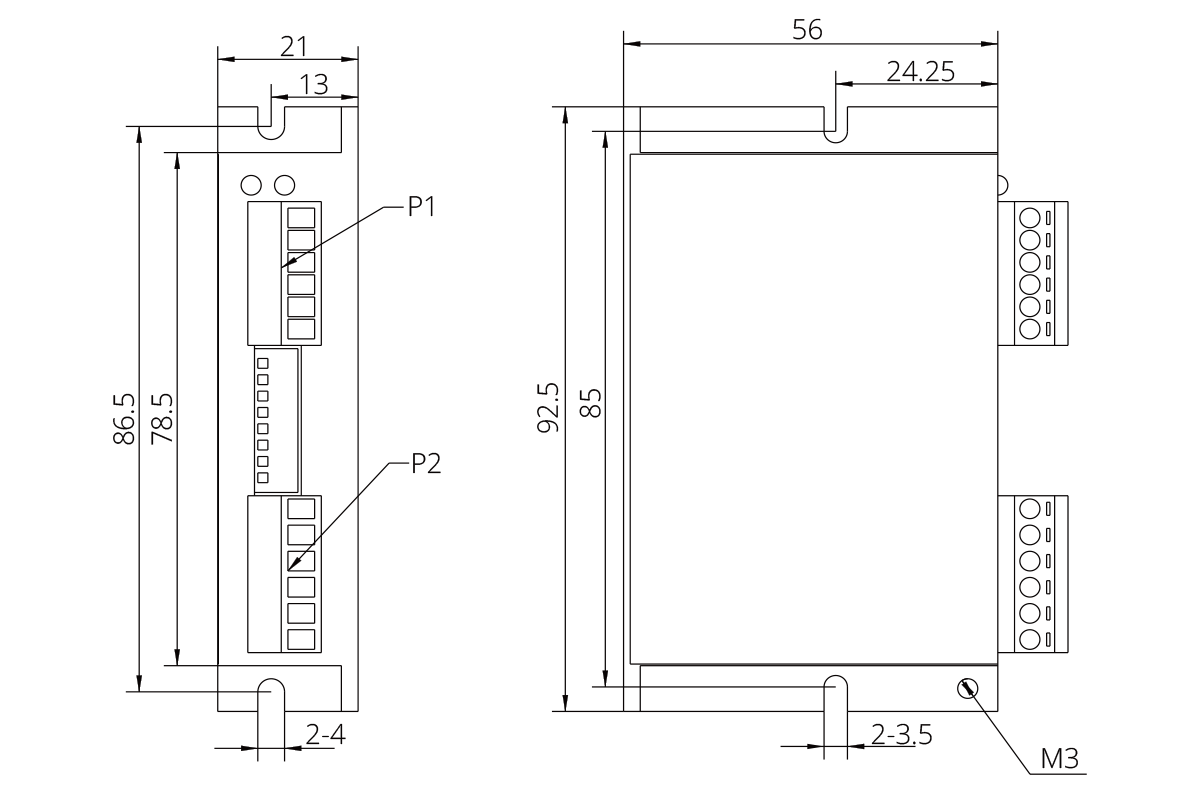

DS-OLS22-FPD-Installation.png1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.

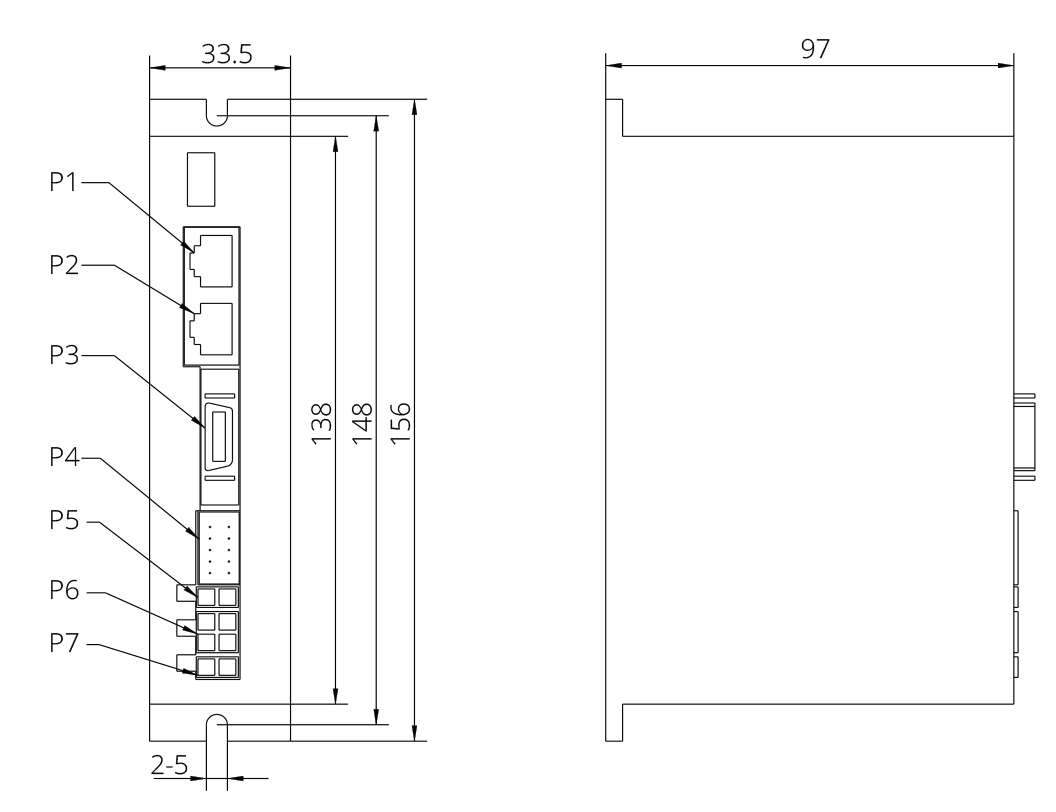

DS-CLS9-FCAO-Installation.png1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.
| Parameter | Unit | DS-OLS22-FPD |
|---|---|---|
| Adapted Motor | 2-phase hybrid stepping motor | |
| Weight | g | About 96 |
| Operating temperature/Pulse Signal | Avoid dust, oil mist and corrosive gas | |
| Humidity | <85% RH, no condensation | |
| Temperature | °C | 0 ~ 40 |
| Heat Dissipation | Install in a ventilated environment | |
| Power Supply | V | DC 12 – 48 |
| Output Current | A | 0.3 – 3 |
| Driving Method | Full-bridge bipolar PWM | |
| Size | mm | 92.5 × 21 × 56 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
DS-OLS22-FPD-Installation.png1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.
DS-CLS9-FCAO-Installation.png1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.

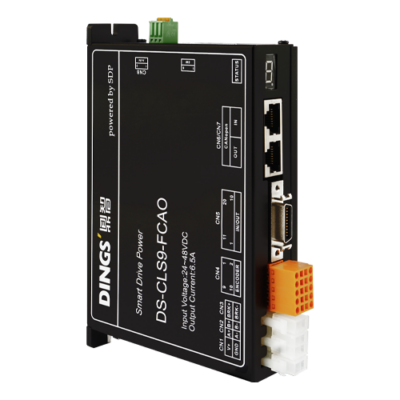

| Parameter | Unit | DS-CLS9-FCAO |
|---|---|---|
| Adapted Motor | 2-phase hybrid stepping motor | |
| Weight | g | About 500 |
| Operating temperature/Pulse Signal | Avoid dust, oil mist and corrosive gas | |
| Humidity | <85% RH, no condensation | |
| Temperature | °C | 0 ~ 40 |
| Heat Dissipation | Install in a ventilated environment | |
| Power Supply | V | DC 24 – 48 |
| Output Current | A | 0.1 – 6.5 |
| Driving Method | Full-bridge Bipolar PWM | |
| Initialization Time | 2s | |
| Input Signal ( 1 probe input, 3 universal input signal) | Optocoupler input voltage H = 3.5 – 26 V , L = 0 – 0.8 V , Current 5 – 8 mA | |
| Output Signal ( 2 universal output signal) | Optocoupler input voltage H = 24 V , L = 0 – 0.8 V , Current 5 – 8 mA | |
| Output Signals ( 1 circuit brake output ) | Optocoupler output, withstand voltage up to 30VDC maximum saturation current 50mA | |
| Size | mm | 156 × 97 × 33.5 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
DS-OLS22-FPD-Installation.png1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.
DS-CLS9-FCAO-Installation.png1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.
