SKA RT 148

Name: SKA RT 148 - KOCO MOTION
SKU: SKA RT 148

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. MwSt.

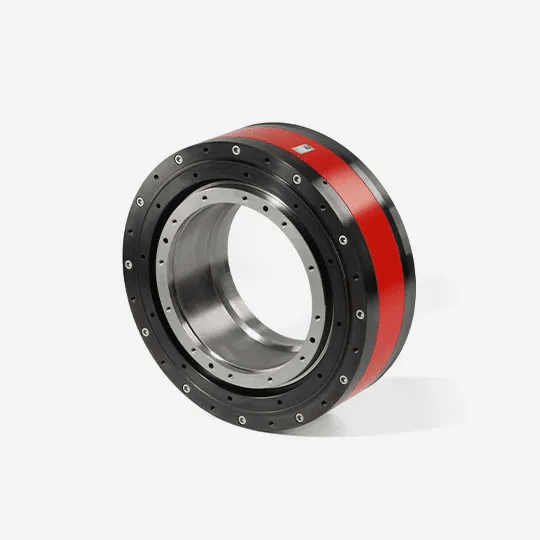

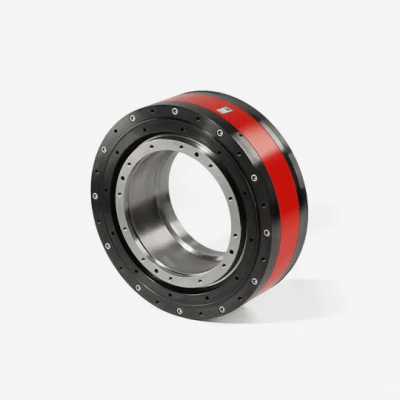

SKA Rotary Table
Stall Torque: 8 – 26 Nm
Peak Torque: 35 – 141 Nm
Rated Speed: 400 rpm
Rated Volatage: 230 Vac
External Diameter (D): 179 mm
Hole Diameter (d): 60 mm

Artikelnummer: SKA RT 148 Kategorie: Unkategorisiert

Beschreibung

Beschreibung

SKA Rotary Table
Stall Torque: 8 – 26 Nm
Peak Torque: 35 – 141 Nm
Rated Speed: 400 rpm
Rated Volatage: 230 Vac
External Diameter (D): 179 mm
Hole Diameter (d): 60 mm

Produktvergleich

Specification	SKA RT 148.30 19	SKA RT 148.60 19	SKA RT 148.90 19	SKA RT 148.120 50
Stall torque	8 Nm	14 Nm	20 Nm	26 Nm
Peak torque	35 Nm	68 Nm	103 Nm	141 Nm
Rated torque	6.8 Nm	11.6 Nm	16.3 Nm	21 Nm
Rated voltage	230 Vac	230 Vac	230 Vac	230 Vac
Stall current	2.02 Arms	3.53 Arms	5.04 Arms	4.62 Arms
Peak current	10.8 Arms	20 Arms	32 Arms	31 Arms
Rated current	1.76 Arms	3.01 Arms	4.23 Arms	3.85 Arms
Rated speed	400 rpm	400 rpm	400 rpm	400 rpm
Maximum speed	600 rpm	600 rpm	600 rpm	600 rpm
Torque constant	3.97 Nm/Arms	3.97 Nm/Arms	3.97 Nm/Arms	5.62 Nm/Arms
Voltage constant	240 Vrms/krpm	240 Vrms/krpm	240 Vrms/krpm	340 Vrms/krpm
Phase/phase resistance	6.4 Ω	2.9 Ω	1.88 Ω	2.8 Ω
Phase/phase inductance	20 mH	12.3 mH	9.5 mH	14.8 mH
Electrical time constant	3.1 msec	4.2 msec	5.1 msec	5.3 msec
Thermal resistance	1.75 °C/W	1.26 °C/W	0.95 °C/W	0.76 °C/W
Mechanical time constant	4.17 ms	2.52 ms	2.04 ms	1.82 ms
Max. theoretical acceleration	5109 rad/s2	7440 rad/s2	9019 rad/s2	10284 rad/s2
Rotor inertia	68.5 kg·cm²	91.4 kg·cm²	114.2 kg·cm²	137.1 kg·cm²
Motor height H	127.5 mm	157.5 mm	187.5 mm	217.5 mm
Motor weight	15.3 Kg	18.1 Kg	22 Kg	26.1 Kg
Radial load	4680 N(@30rpm)	4680 N(@30rpm)	4680 N(@30rpm)	4680 N(@30rpm)
Axial load	4370 N(@60rpm)	4370 N(@60rpm)	4370 N(@60rpm)	4370 N(@60rpm)
Tilt moment	150 N(@15rpm)	150 N(@15rpm)	150 N(@15rpm)	150 N(@15rpm)

Family Specification	SKA RT 148
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	14
Thermal protection	PT 1000

Family Overview	SKA RT 148
Stall Torque	2026-08-01 00:00:00 Nm
Peak Torque	35 – 141 Nm
Rated Speed	400 rpm
Rated Voltage	230 Vac
External Diameter (D)	179 mm
Hole Diameter (d)	60 mm

Optionen

Feedback

10- for incremental SinCos encoder 30- for absolute EnDat encoder

Mechanical Arrangement

00- for IP 42 Standard version Flanges not sealed 01- for IP65 top flange (view A) 19- M23 connectors – PT 1000 on power connector 20- M23 connectors – PT 1000 on signal connector

SKA RT 148

Datenblatt

Dimensions (pdf, 678.47K)

Torque-Speed-Chart (pdf, 536.33K)

Flexi-Pro-Drive (pdf, 1.65M)

Load-Feedback-Specifications (pdf, 602.27K)

Wiring-Cables (pdf, 648.23K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 148.30 19
Stall torque	8 Nm
Peak torque	35 Nm
Rated torque	6.8 Nm
Rated voltage	230 Vac
Stall current	2.02 Arms
Peak current	10.8 Arms
Rated current	1.76 Arms
Rated speed	400 rpm
Maximum speed	600 rpm
Torque constant	3.97 Nm/Arms
Voltage constant	240 Vrms/krpm
Phase/phase resistance	6.4 Ω
Phase/phase inductance	20 mH
Electrical time constant	3.1 msec
Thermal resistance	1.75 °C/W
Mechanical time constant	4.17 ms
Max. theoretical acceleration	5109 rad/s2
Rotor inertia	68.5 kg·cm²
Motor height H	127.5 mm
Motor weight	15.3 Kg
Radial load	4680 N(@30rpm)
Axial load	4370 N(@60rpm)
Tilt moment	150 N(@15rpm)

Family Specification	SKA RT 148.30 19
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	14
Thermal protection	PT 1000

Family Overview	SKA RT 148.30 19
Stall Torque	2026-08-01 00:00:00 Nm
Peak Torque	35 – 141 Nm
Rated Speed	400 rpm
Rated Voltage	230 Vac
External Diameter (D)	179 mm
Hole Diameter (d)	60 mm

Optionen

Feedback

10- for incremental SinCos encoder 30- for absolute EnDat encoder

Mechanical Arrangement

00- for IP 42 Standard version Flanges not sealed 01- for IP65 top flange (view A) 19- M23 connectors – PT 1000 on power connector 20- M23 connectors – PT 1000 on signal connector

SKA RT 148

Datenblatt

Dimensions (pdf, 678.47K)

Torque-Speed-Chart (pdf, 536.33K)

Flexi-Pro-Drive (pdf, 1.65M)

Load-Feedback-Specifications (pdf, 602.27K)

Wiring-Cables (pdf, 648.23K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 148.60 19
Stall torque	14 Nm
Peak torque	68 Nm
Rated torque	11.6 Nm
Rated voltage	230 Vac
Stall current	3.53 Arms
Peak current	20 Arms
Rated current	3.01 Arms
Rated speed	400 rpm
Maximum speed	600 rpm
Torque constant	3.97 Nm/Arms
Voltage constant	240 Vrms/krpm
Phase/phase resistance	2.9 Ω
Phase/phase inductance	12.3 mH
Electrical time constant	4.2 msec
Thermal resistance	1.26 °C/W
Mechanical time constant	2.52 ms
Max. theoretical acceleration	7440 rad/s2
Rotor inertia	91.4 kg·cm²
Motor height H	157.5 mm
Motor weight	18.1 Kg
Radial load	4680 N(@30rpm)
Axial load	4370 N(@60rpm)
Tilt moment	150 N(@15rpm)

Family Specification	SKA RT 148.60 19
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	14
Thermal protection	PT 1000

Family Overview	SKA RT 148.60 19
Stall Torque	2026-08-01 00:00:00 Nm
Peak Torque	35 – 141 Nm
Rated Speed	400 rpm
Rated Voltage	230 Vac
External Diameter (D)	179 mm
Hole Diameter (d)	60 mm

Optionen

Feedback

10- for incremental SinCos encoder 30- for absolute EnDat encoder

Mechanical Arrangement

00- for IP 42 Standard version Flanges not sealed 01- for IP65 top flange (view A) 19- M23 connectors – PT 1000 on power connector 20- M23 connectors – PT 1000 on signal connector

SKA RT 148

Datenblatt

Dimensions (pdf, 678.47K)

Torque-Speed-Chart (pdf, 536.33K)

Flexi-Pro-Drive (pdf, 1.65M)

Load-Feedback-Specifications (pdf, 602.27K)

Wiring-Cables (pdf, 648.23K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 148.90 19
Stall torque	20 Nm
Peak torque	103 Nm
Rated torque	16.3 Nm
Rated voltage	230 Vac
Stall current	5.04 Arms
Peak current	32 Arms
Rated current	4.23 Arms
Rated speed	400 rpm
Maximum speed	600 rpm
Torque constant	3.97 Nm/Arms
Voltage constant	240 Vrms/krpm
Phase/phase resistance	1.88 Ω
Phase/phase inductance	9.5 mH
Electrical time constant	5.1 msec
Thermal resistance	0.95 °C/W
Mechanical time constant	2.04 ms
Max. theoretical acceleration	9019 rad/s2
Rotor inertia	114.2 kg·cm²
Motor height H	187.5 mm
Motor weight	22 Kg
Radial load	4680 N(@30rpm)
Axial load	4370 N(@60rpm)
Tilt moment	150 N(@15rpm)

Family Specification	SKA RT 148.90 19
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	14
Thermal protection	PT 1000

Family Overview	SKA RT 148.90 19
Stall Torque	2026-08-01 00:00:00 Nm
Peak Torque	35 – 141 Nm
Rated Speed	400 rpm
Rated Voltage	230 Vac
External Diameter (D)	179 mm
Hole Diameter (d)	60 mm

Optionen

Feedback

10- for incremental SinCos encoder 30- for absolute EnDat encoder

Mechanical Arrangement

00- for IP 42 Standard version Flanges not sealed 01- for IP65 top flange (view A) 19- M23 connectors – PT 1000 on power connector 20- M23 connectors – PT 1000 on signal connector

SKA RT 148

Datenblatt

Dimensions (pdf, 678.47K)

Torque-Speed-Chart (pdf, 536.33K)

Flexi-Pro-Drive (pdf, 1.65M)

Load-Feedback-Specifications (pdf, 602.27K)

Wiring-Cables (pdf, 648.23K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	SKA RT 148.120 50
Stall torque	26 Nm
Peak torque	141 Nm
Rated torque	21 Nm
Rated voltage	230 Vac
Stall current	4.62 Arms
Peak current	31 Arms
Rated current	3.85 Arms
Rated speed	400 rpm
Maximum speed	600 rpm
Torque constant	5.62 Nm/Arms
Voltage constant	340 Vrms/krpm
Phase/phase resistance	2.8 Ω
Phase/phase inductance	14.8 mH
Electrical time constant	5.3 msec
Thermal resistance	0.76 °C/W
Mechanical time constant	1.82 ms
Max. theoretical acceleration	10284 rad/s2
Rotor inertia	137.1 kg·cm²
Motor height H	217.5 mm
Motor weight	26.1 Kg
Radial load	4680 N(@30rpm)
Axial load	4370 N(@60rpm)
Tilt moment	150 N(@15rpm)

Family Specification	SKA RT 148.120 50
Time Rating	Continuous
Insulation Class	F
Enclosure	Totally enclosed, self-cooled
Enclosure Rating	IP 42 (standard)
Ambient temperature	0 to 40 °C °C
Ambient humidity	20 to 80% RH (non condensing)
Poles	14
Thermal protection	PT 1000

Family Overview	SKA RT 148.120 50
Stall Torque	2026-08-01 00:00:00 Nm
Peak Torque	35 – 141 Nm
Rated Speed	400 rpm
Rated Voltage	230 Vac
External Diameter (D)	179 mm
Hole Diameter (d)	60 mm

Optionen

Feedback

10- for incremental SinCos encoder 30- for absolute EnDat encoder

Mechanical Arrangement

00- for IP 42 Standard version Flanges not sealed 01- for IP65 top flange (view A) 19- M23 connectors – PT 1000 on power connector 20- M23 connectors – PT 1000 on signal connector

SKA RT 148

Datenblatt

Dimensions (pdf, 678.47K)

Torque-Speed-Chart (pdf, 536.33K)

Flexi-Pro-Drive (pdf, 1.65M)

Load-Feedback-Specifications (pdf, 602.27K)

Wiring-Cables (pdf, 648.23K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de
