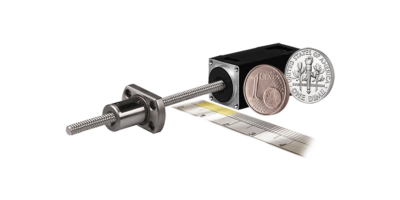

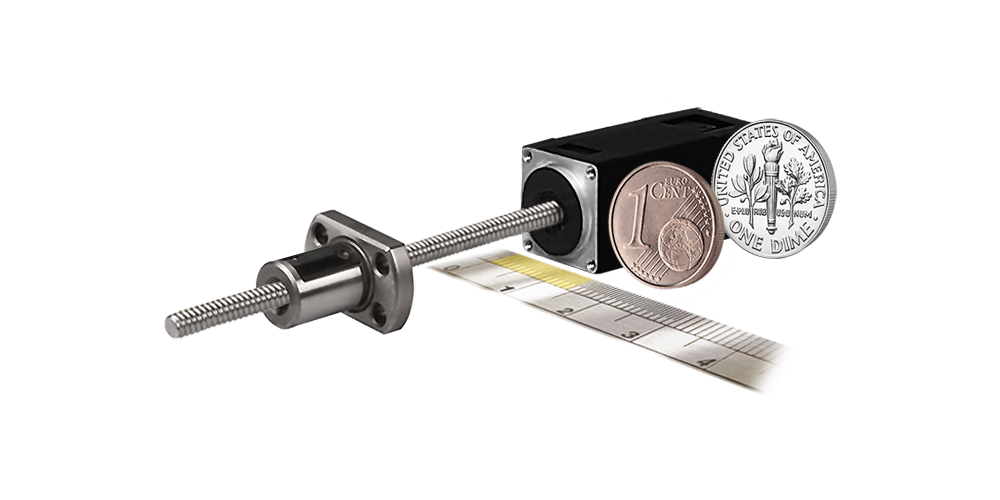

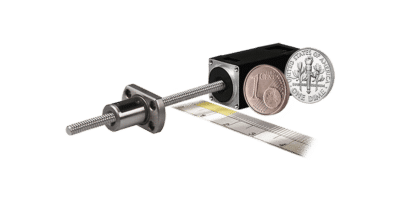

SBSLA – Size 6 [14mm]

Name: SBSLA - Size 6 [14mm] - KOCO MOTION
SKU: SBSLA - Size 6 [14mm]

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. MwSt.

The size 6 is our smallest Stepper Ball Screw Linear Actuators.
External version is available.
Various screw end machining and encoder options are available.

Artikelnummer: SBSLA – Size 6 [14mm] Kategorie: Hybrid Steppers

Beschreibung

Beschreibung

The size 6 is our smallest Stepper Ball Screw Linear Actuators.
External version is available.
Various screw end machining and encoder options are available.

Motor Characteristics	6E2103
Voltage	6.6 V
Current	0.3 A
Resistance	22 Ω
Inductance	3.6 mH
Lead Wire No.	4
Motor Length	30 mm
Size	6 Nema
Flange size	14 mm

Ball screw type	0401	0402
Ball size	Ø0.8	Ø0.8
Number of threads	1	1
Right	Right	Right
Ø3.3	Ø3.3	Ø3.3
Number of circuits	3.7×1	2.7×1
Shaft nut material	SCM415H	SCM415H
Surface hardness	HRC58~62	HRC58~62
Anti-rust treatment	Anti-rust oil	Anti-rust oil
Grade	C7	C7

Nut size	A	B	C	D	H	W	X	Position accuracy	Total run out	Axial play	Dynamic load[N]	Static load[N]
BS0401	23	4	17	11	15	17	3.4	±0.05	0.12	≤0.03	560	790
BS0402	23	4	19	11	15	17	3.4	±0.05	0.12	≤0.03	420	570

Optionen

Encoder

EK6

Screw End Machining

Threaded End Smooth End None Customize

SBSLA – Size 6 [14mm]

External (jpeg, 182.24K)

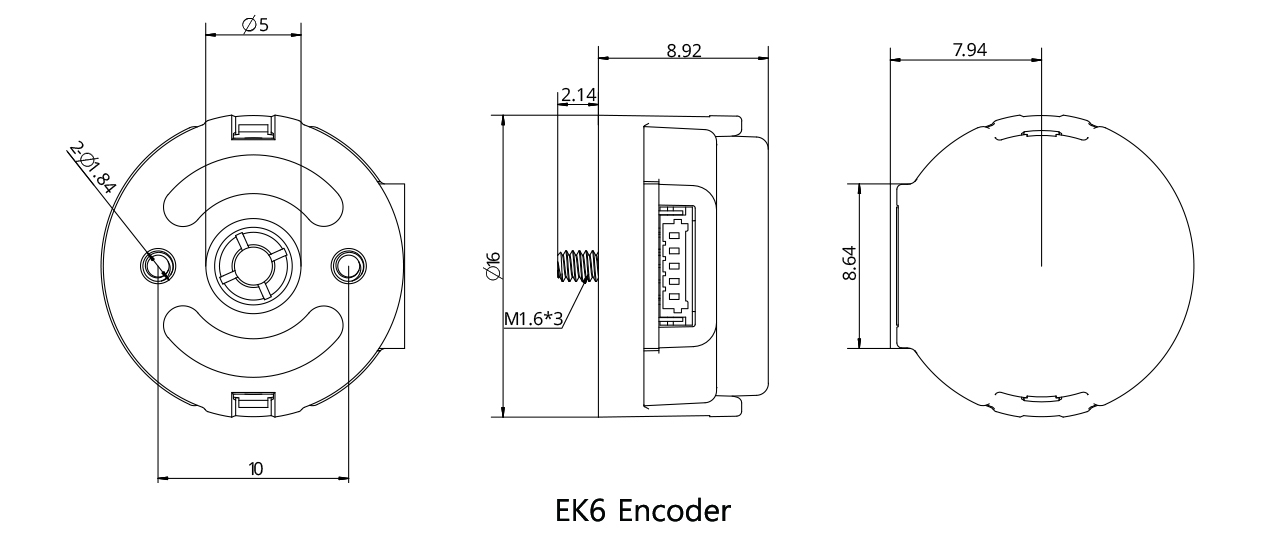

EK6-Encoder (jpeg, 706.07K)

SBSLA – Size 6 [14mm]

Speed-Thrust-Curves (jpeg, 419.33K)
