MLM5 NEMA 17

Name: MLM5 NEMA 17 - KOCO MOTION
SKU: MLM5 NEMA 17

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. MwSt.

MLM5 NEMA 17 with

Pulse/Direction
Motion Control (RS485)
CANopen
Ethernet (MCode, Modbus TCP, Ethernet IP, Profinet I/O)

Artikelnummer: MLM5 NEMA 17 Kategorie: Liberty/MDrives

Beschreibung

Beschreibung

MLM5 NEMA 17 with

Pulse/Direction
Motion Control (RS485)
CANopen
Ethernet (MCode, Modbus TCP, Ethernet IP, Profinet I/O)

Produktvergleich

General Specifications	MLM5 NEMA 17 External Linear Step/direction input IP20	MLM5 NEMA 17 Non-captive Linear Step/direction input IP20
Control type	Step/direction input	Step/direction input
Control method	–	–
P1 connector options	Flying Leads, Pluggable, Wire Crimp	Flying Leads, Pluggable, Wire Crimp
P2 connector options	IDC, None	IDC, None
Communications interface	SPI	SPI
NEMA size	17 (42×42 mm)	17 (42×42 mm)
Holding torque range	0.23 … 0.53	0.23 … 0.53
Temperature heatsink (short-time)	max. 85	max. 85
IP rating	IP20	IP20
Input voltage	+12 to +48	+12 to +48
Power supply current requirement	2.0 A	2.0 A

Parameter settings	MLM5 NEMA 17 External Linear Step/direction input IP20	MLM5 NEMA 17 Non-captive Linear Step/direction input IP20
Input Step, Direction & Enable voltage	–	–
Current	–	–
Digital Filter Range	10 … 38.8	10 … 38.8
Step Frequency	5 MHz Max	5 MHz Max
Microstep Resolutions	200 … 51200	200 … 51200
Clock Types	–	–

MLM5 NEMA 17 External Linear Step/direction input IP20

Datenblatt

MLM-NEMA-17-Step-Direction-Product-Overview-PDF (pdf, 359.07K)

Software

SPI-Interface (zip, 1.31M)

MLM5 NEMA 17 Non-captive Linear Step/direction input IP20

Datenblatt

MLM-NEMA-17-Step-Direction-Product-Overview-PDF (pdf, 359.07K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

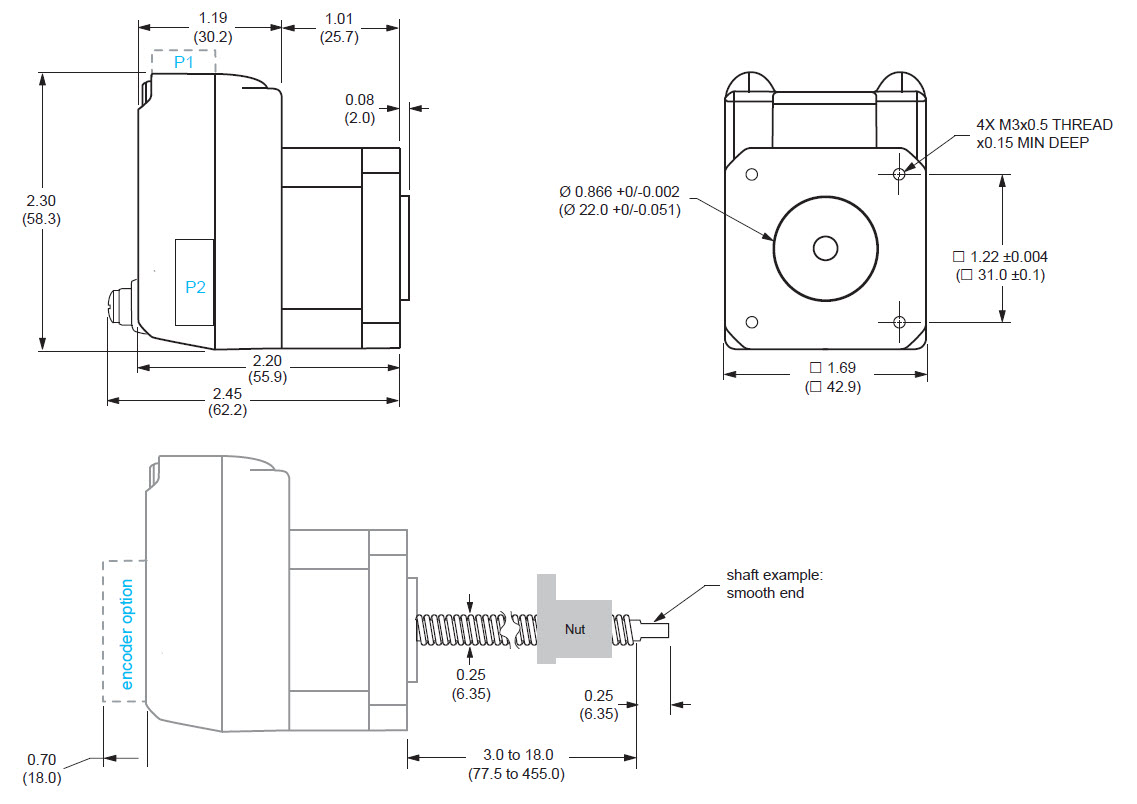

Specification	MLM5 NEMA 17 External Linear Step/direction input IP20
Control type	Step/direction input
Control method	–
P1 connector options	Flying Leads, Pluggable, Wire Crimp Power & I/O
P2 connector options	IDC, None Comm
Communications interface	SPI
NEMA size	17 (42×42 mm)
Holding torque range	0.23 … 0.53 Nm
Temperature heatsink (short-time)	max. 85 °C
IP rating	IP20
Input voltage	+12 to +48 +VDC
Power supply current requirement	2.0 A

Parameter settings	MLM5 NEMA 17 External Linear Step/direction input IP20
Input Step, Direction & Enable voltage	–
Current	–
Digital Filter Range	10 … 38.8 MHz … kHz
Step Frequency	5 MHz Max
Microstep Resolutions	200 … 51200 Steps/Rev
Clock Types	–

MLM5 NEMA 17 External Linear Step/direction input IP20


MLM5 NEMA 17 External Linear Step/direction input IP20

ML-NEMA-17-with-Standard-Connectors-ZIP-Archive (zip, 1.82M)

MLM5 NEMA 17 External Linear Step/direction input IP20

Datenblatt

MLM-NEMA-17-Step-Direction-Product-Overview-PDF (pdf, 359.07K)

Software

SPI-Interface (zip, 1.31M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

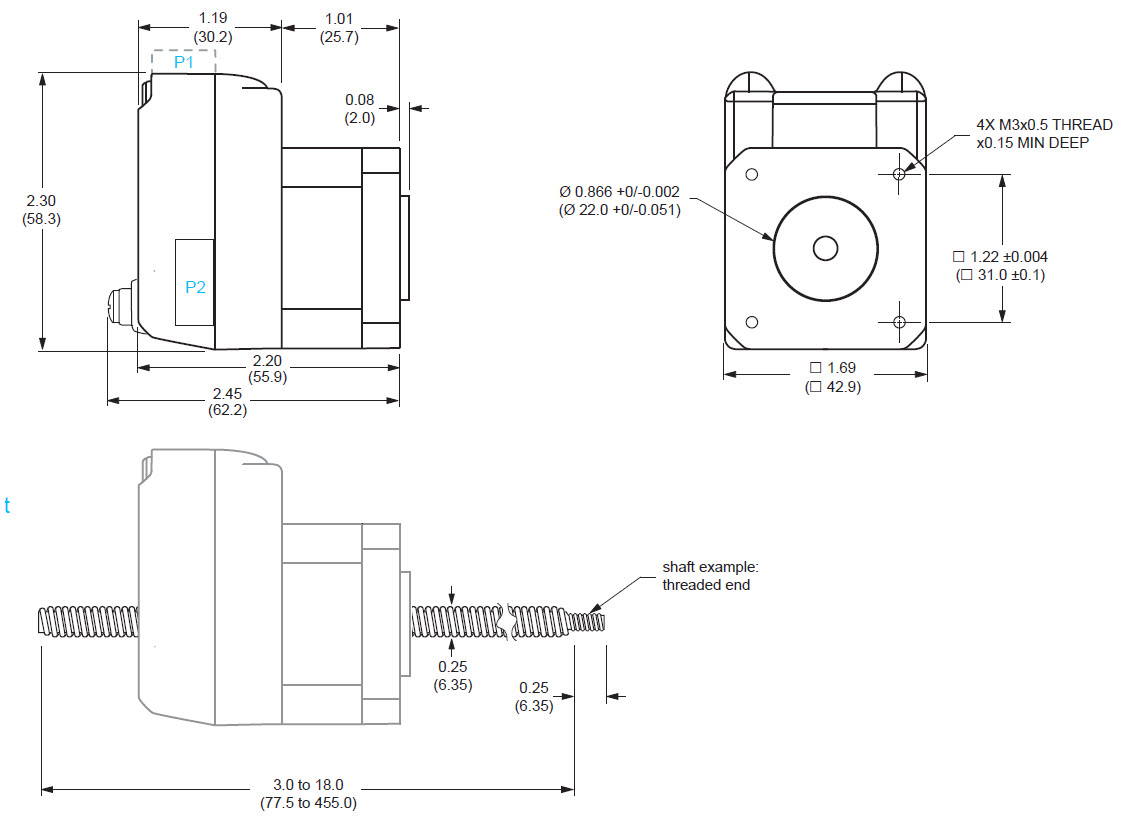

Specification	MLM5 NEMA 17 Non-captive Linear Step/direction input IP20
Control type	Step/direction input
Control method	–
P1 connector options	Flying Leads, Pluggable, Wire Crimp Power & I/O
P2 connector options	IDC, None Comm
Communications interface	SPI
NEMA size	17 (42×42 mm)
Holding torque range	0.23 … 0.53 Nm
Temperature heatsink (short-time)	max. 85 °C
IP rating	IP20
Input voltage	+12 to +48 +VDC
Power supply current requirement	2.0 A

Parameter settings	MLM5 NEMA 17 Non-captive Linear Step/direction input IP20
Input Step, Direction & Enable voltage	–
Current	–
Digital Filter Range	10 … 38.8 MHz … kHz
Step Frequency	5 MHz Max
Microstep Resolutions	200 … 51200 Steps/Rev
Clock Types	–

MLM5 NEMA 17 Non-captive Linear Step/direction input IP20


MLM5 NEMA 17 Non-captive Linear Step/direction input IP20

ML-NEMA-17-with-Standard-Connectors-ZIP-Archive (zip, 1.82M)

MLM5 NEMA 17 Non-captive Linear Step/direction input IP20

Datenblatt

MLM-NEMA-17-Step-Direction-Product-Overview-PDF (pdf, 359.07K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de
