General Specifications
| Parameter | Unit | MLM5 NEMA 17 External Linear Step/direction input IP20 | MLM5 NEMA 17 Non-captive Linear Step/direction input IP20 |
|---|---|---|---|
| Control type | Step/direction input | Step/direction input | |
| Input voltage | +VDC | +12 to +48 | +12 to +48 |
| Power supply current | A | 2.0 | 2.0 |
| Control method | – | – | |
| P1 connector options | Power & I/O | Flying Leads, Pluggable, Wire Crimp | Flying Leads, Pluggable, Wire Crimp |
| P2 connector options | Comm | IDC, None | IDC, None |
| Communications interface | SPI | SPI | |
| NEMA size | 17 (42×42 mm) | 17 (42×42 mm) | |
| Holding torque | Nm | 0.23 … 0.53 | 0.23 … 0.53 |
| Temperature heatsink (short-time) | °C | max. 85 | max. 85 |
| IP rating | IP20 | IP20 |
Parameter settings
| Parameter | Unit | MLM5 NEMA 17 External Linear Step/direction input IP20 | MLM5 NEMA 17 Non-captive Linear Step/direction input IP20 |
|---|---|---|---|
| Input Step, Direction & Enable voltage | + VDC | – | – |
| Current | mA Max | – | – |
| Digital Filter Range | MHz … kHz | 10 … 38.8 | 10 … 38.8 |
| Step Frequency | MHz Max | 5 | 5 |
| Microstep Resolutions | Steps/Rev | 200 … 51200 | 200 … 51200 |
| Clock Types | Step/Direction, Step Up/Step Down, Quadrature | – | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
| Parameter | Unit | MLM5 NEMA 17 External Linear Step/direction input IP20 |
|---|---|---|
| Control type | Step/direction input | |
| Input voltage | +VDC | +12 to +48 |
| Power supply current | A | 2.0 |
| Control method | – | |
| P1 connector options | Power & I/O | Flying Leads, Pluggable, Wire Crimp |
| P2 connector options | Comm | IDC, None |
| Communications interface | SPI | |
| NEMA size | 17 (42×42 mm) | |
| Holding torque | Nm | 0.23 … 0.53 |
| Temperature heatsink (short-time) | °C | max. 85 |
| IP rating | IP20 |
Parameter settings
| Parameter settings | Unit | MLM5 NEMA 17 External Linear Step/direction input IP20 |
|---|---|---|
| Input Step, Direction & Enable voltage | + VDC | – |
| Current | mA Max | – |
| Digital Filter Range | MHz … kHz | 10 … 38.8 |
| Step Frequency | MHz Max | 5 |
| Microstep Resolutions | Steps/Rev | 200 … 51200 |
| Clock Types | Step/Direction, Step Up/Step Down, Quadrature | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads

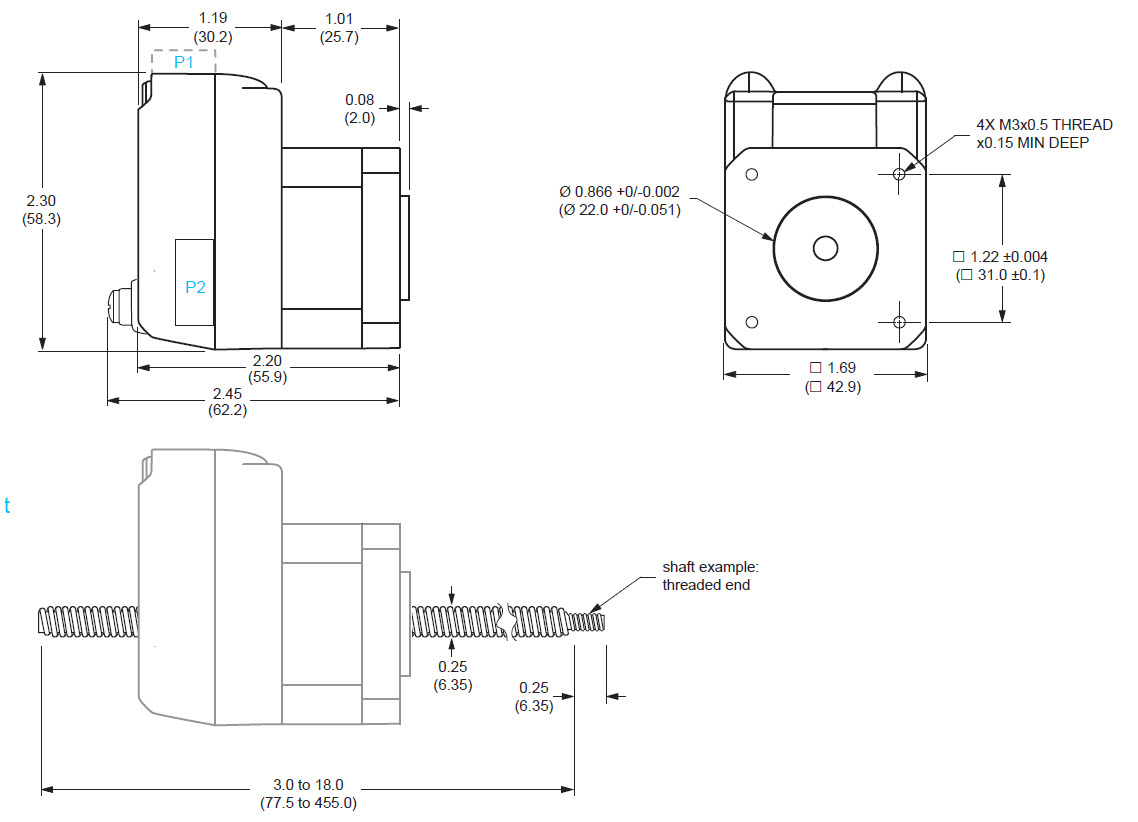

| Parameter | Unit | MLM5 NEMA 17 Non-captive Linear Step/direction input IP20 |
|---|---|---|
| Control type | Step/direction input | |
| Input voltage | +VDC | +12 to +48 |
| Power supply current | A | 2.0 |
| Control method | – | |
| P1 connector options | Power & I/O | Flying Leads, Pluggable, Wire Crimp |
| P2 connector options | Comm | IDC, None |
| Communications interface | SPI | |
| NEMA size | 17 (42×42 mm) | |
| Holding torque | Nm | 0.23 … 0.53 |
| Temperature heatsink (short-time) | °C | max. 85 |
| IP rating | IP20 |
Parameter settings
| Parameter settings | Unit | MLM5 NEMA 17 Non-captive Linear Step/direction input IP20 |
|---|---|---|
| Input Step, Direction & Enable voltage | + VDC | – |
| Current | mA Max | – |
| Digital Filter Range | MHz … kHz | 10 … 38.8 |
| Step Frequency | MHz Max | 5 |
| Microstep Resolutions | Steps/Rev | 200 … 51200 |
| Clock Types | Step/Direction, Step Up/Step Down, Quadrature | – |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
