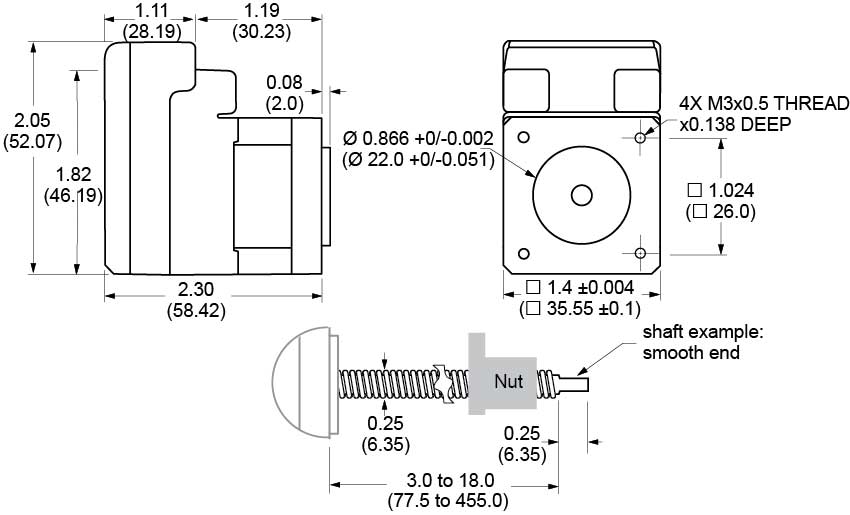

MDrive Plus NEMA size 14 (36 mm) integrated stepper motor linear actuator. This is a Step/direction input with SPI interface for parameterization.
Holding torque range oz-in (N-cm): 18…36 (13 … 25)
I/O connector options: Wire Crimp
Com connector: IDC, Wire Crimp
| Parameter | Unit | MLM5 NEMA 14 External Linear Step/direction input IP20 |
|---|---|---|
| Control type | Step/direction input | |
| Feature set | – | |
| P1 connector options | Power & I/O | Wire Crimp |
| P2 connector options | Comm | IDC, Wire Crimp |
| Communications interface | SPI | |
| NEMA size | 14 (36×36 mm) | |
| Holding torque range | Nm | 0.13 … 0.25 |
| Temperature heatsink (short-time) | °C | max. 85 |
| IP rating | IP20 | |
| Input voltage | +VDC | +12 to +48 |
| Power supply current requirement | A | 1.0 |
| Parameter settings | Unit | MLM5 NEMA 14 External Linear Step/direction input IP20 |
|---|---|---|
| Input Step, Direction & Enable voltage | + VDC | – |
| Current | mA Max | – |
| Digital Filter Range | MHz … kHz | 10 … 38.8 |
| Step Frequency | MHz Max | 5 |
| Microstep Resolutions | Steps/Rev | 200 … 51200 |
| Clock Types | Step/Direction, Step Up/Step Down, Quadrature | – |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
