LMD17 NEMA 17 with
Compact programmable integrated motor with RS-422/485 communications interface. Feedback options include open loop, or closed loop with an incremental or multi-turn absolute encoder with hMTechnology.
Motor size: NEMA 17 (42 mm)
Holding Torque range:
Input voltage: +12 to +48 VDC
inkl. 19 % MwSt.
Weiterlesen
inkl. 19 % MwSt.
Weiterlesen
inkl. 19 % MwSt.
Weiterlesen
inkl. 19 % MwSt.

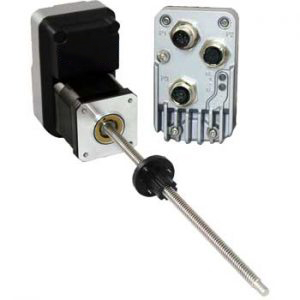

Weiterlesen| Specification | LMD17 NEMA 17 Motion Control External Linear Actuator with M12 Connectors |
|---|---|
| Control type | Programmable Motion |
| Communications interface | RS-422/485 |
| Communications features | MCode OS |
| NEMA size | 17 (42x42mm) |
| Temperature heatsink (short-time) | max. 85 °C |
| IP rating | IP65 |
| Input voltage | +12 to +48 +VDC |
| Power supply current requirement | 2.0 A |
| Aux-logic supply voltage | 12 … 24 +VDC |
| Aux-Logic Supply Current | 194 mA max |
| I/O functions | Programmable I/Os |
| Signal input voltage range | 5 … 24 +VDC |
| Signal input current | 8.7 mA @ +5 VDC |
| Signal input current | 14.6 mA @ +24 VDC |
| Signal input frequency | 5 kHz |
| Signal input isolation | Galvanic |
| Signal input protection class | III |
| Signal output current | 1 … 5.5 mA |
| Signal output voltage open-collector | 60 +VDC |
| Signal output voltage open-emitter | 7 +VDC |
| Signal output current open-collector | 5.5 mA |
| Signal output current open-emitter | 5.5 mA |
| Signal output isolation | Galvanic |
| Analog input availability | Not available on LMD models with absolute encoder |
| Analog input voltage mode | 0 … 5 0 … 5 VDC |
| Analog input voltage mode | 0 … 10 0 … 10 VDC |
| Analog input current loop mode | 0 … 20 mA |
| Analog input resolution | 12 Bits |
| Analog input isolation | None |
| Microstep resolution | 20 # of settings |
| Microstep resolution | 200 … 51200 Range steps/rev |
| Counter type | Position 32-bit |
| Counter edge rate | 5 MHz (max.) |
| Velocity range | ± 2560000 | ± 3000 steps/sec | RPM |
| Velocity resolution | 0.5961 steps/sec |
| Accel/Decel range | 1.5 X 10^9 steps/sec2 |
| Accel/Decel resolution | 90.9 steps/sec2 |
| Encoder type | Internal, magnetic |
| Encoder resolution | 1000 / 4000 Lines / Edges |
| Absolute encoder: data retention on internal power | max. 30 days |
| Absolute encoder: data retention on internal power with battery pack | 5 years |
| Counter resolution | 32 bit |
| hMTechnology OFF, encoder ON | Position maintenance, find index, stall detect |
| hMTechnology ON, encoder OFF | Anti-stall, variable current control, torque mode |
| MCode OS program storage | Type Flash |
| MCode OS program storage | 11,120 Bytes |
| Multidrop addresses | 62 |
| User registers (Integer) | 4 |
| User registers (Floating point) | 8 |
| User registers Length | 32 bits |
| Math | +, -, x, ÷, >, <, =, <=, >= |
| Logic | AND, OR, XOR, NOT |
| Trigonometric | ABS, COS, ACOS, LOG2, LOG10, PI, SIN, ASIN, SQRT, TAN, ATAN |
| Branch functions | Branch & call |
| Input functions | Home, limit plus, limit minus, go, stop, pause, jog plus, jog minus, general purpose, capture |
| Output functions | Moving, error, velocity change, stall, locked rotor, moving position, hMT active, make-up active, encoder A, encoder B, trip, attention. general purpose, |
| Trip functions | Trip on input, trip on position, trip on time, trip capture, trip on relative position, trip on main power loss |
| Encoder functions1 | hMTechnology, stall detection, position maintenance, find index |
