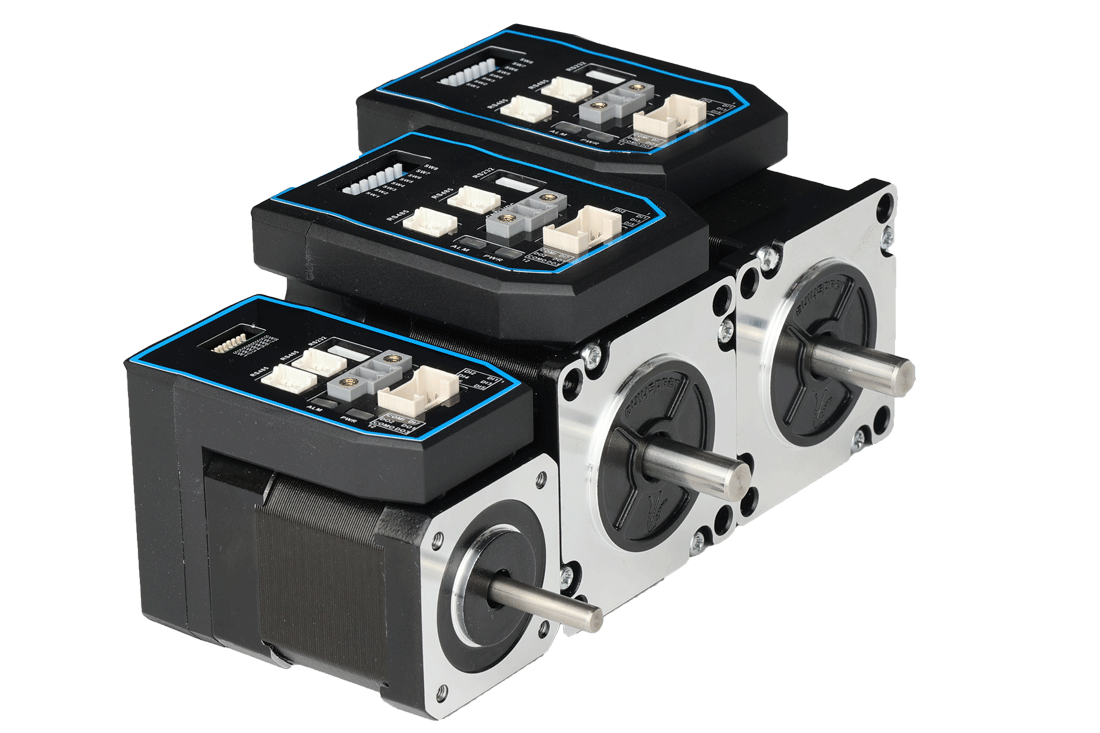

Name: iEM-RS Series - KOCO MOTION
SKU: iEM-RS Series

Motor charactistics	iEM-RS1706	iEM-RS1708	iEM-RS2313	iEM-RS2323
Frame size	17 Nema	17 Nema	23 Nema	23 Nema
Length	73 mm	86 mm	78 mm	99 mm
Holding torque	0.6 Nm	0.8 Nm	1.3 Nm	–
Communication	Modbus-RTU	Modbus-RTU	Modbus-RTU	Modbus-RTU
Operation voltage	24 VDC	24 VDC	24…36 VDC	24…36 VDC
Input frequency	10 KHz, Max.	10 KHz, Max.	10 KHz, Max.	10 KHz, Max.
Logical voltage	12…24 VDC	12…24 VDC	12…24 VDC	12…24 VDC
# of inputs	3	3	3	3
# of outputs	1	1	1	1

Features

Low noise and vibration, smooth motion Support Modbus RTU protocol, Internal 16-segment position Commands Motion can be started by External IO or RS485 or HMI Support operation modes: Profile Position, Profile Velocity, Homing 7 configurable digital inputs, 3 optically isolated digital outputs iEM-RS17xx: 20-36VDC supply voltage, max output current 3.0A peak iEM-RS23xx: 20-50VDC supply voltage, max output current 7.0A peak RS232 port for tuning software connection, RS485 port for motion control Protections for over voltage, over current, etc. Compare with Step/Direction

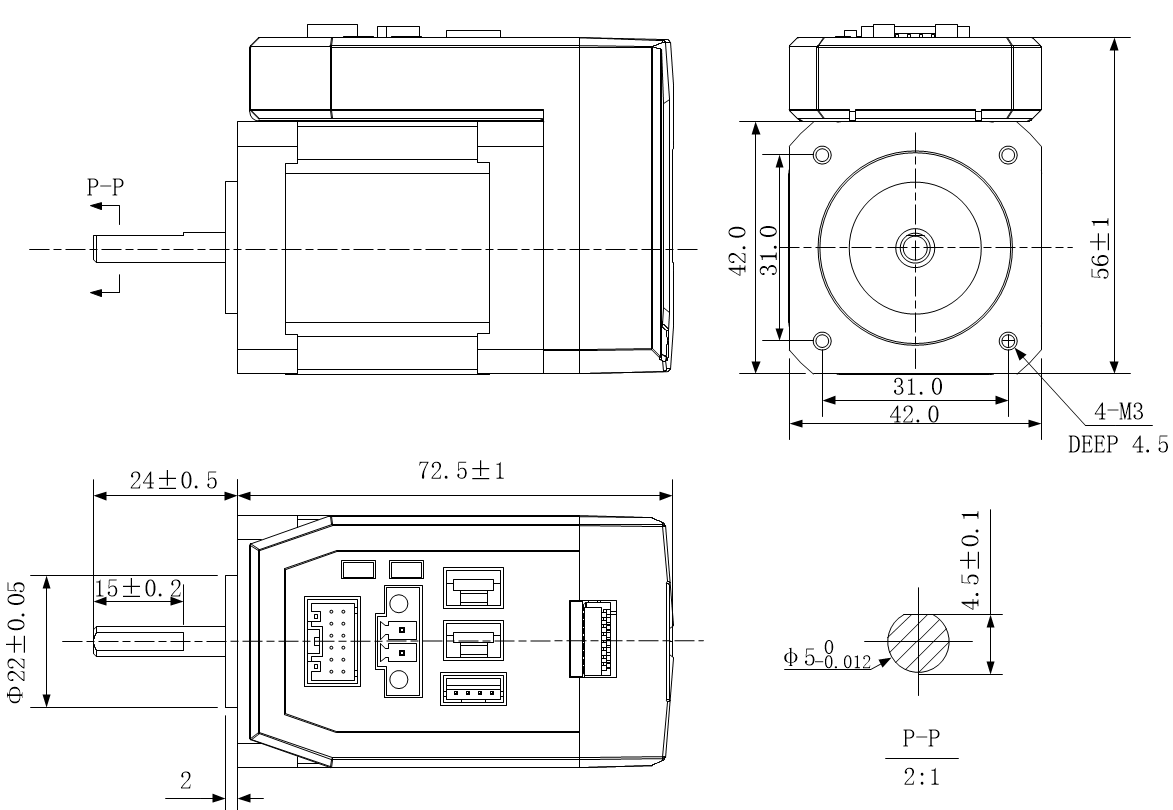

iEM-RS1706

iEM-RS Series

Datenblatt

8f280354419f57b27bd332a6d8fb24bc_1666341937987.pdf (pdf, 635.81K)

Handbuch

iEM-RS_Series_User_Manual_V1.0 (pdf, 2.56M)

Motion_Studio_Stepper_Software_Quick_Start (pdf, 2.74M)

Software

Motion_Studio_Stepper_V1.3.10 (zip, 28.98M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	iEM-RS1706
Frame size	17 Nema
Length	73 mm
Holding torque	0.6 Nm
Communication	Modbus-RTU
Operation voltage	24 VDC
Input frequency	10 KHz, Max.
Logical voltage	12…24 VDC
# of inputs	3
# of outputs	1

Features

Low noise and vibration, smooth motion Support Modbus RTU protocol, Internal 16-segment position Commands Motion can be started by External IO or RS485 or HMI Support operation modes: Profile Position, Profile Velocity, Homing 7 configurable digital inputs, 3 optically isolated digital outputs iEM-RS17xx: 20-36VDC supply voltage, max output current 3.0A peak iEM-RS23xx: 20-50VDC supply voltage, max output current 7.0A peak RS232 port for tuning software connection, RS485 port for motion control Protections for over voltage, over current, etc. Compare with Step/Direction

iEM-RS1706

e4adefa5b5a655eed12f3186c47bf56b_1650879607945.zip (zip, 211.51K)

0479c019b1c44333937c515fa145eb70_1650879595771.zip (zip, 970.31K)


iEM-RS Series

Datenblatt

8f280354419f57b27bd332a6d8fb24bc_1666341937987.pdf (pdf, 635.81K)

Handbuch

iEM-RS_Series_User_Manual_V1.0 (pdf, 2.56M)

Motion_Studio_Stepper_Software_Quick_Start (pdf, 2.74M)

Software

Motion_Studio_Stepper_V1.3.10 (zip, 28.98M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	iEM-RS1708
Frame size	17 Nema
Length	86 mm
Holding torque	0.8 Nm
Communication	Modbus-RTU
Operation voltage	24 VDC
Input frequency	10 KHz, Max.
Logical voltage	12…24 VDC
# of inputs	3
# of outputs	1

Features

Low noise and vibration, smooth motion Support Modbus RTU protocol, Internal 16-segment position Commands Motion can be started by External IO or RS485 or HMI Support operation modes: Profile Position, Profile Velocity, Homing 7 configurable digital inputs, 3 optically isolated digital outputs iEM-RS17xx: 20-36VDC supply voltage, max output current 3.0A peak iEM-RS23xx: 20-50VDC supply voltage, max output current 7.0A peak RS232 port for tuning software connection, RS485 port for motion control Protections for over voltage, over current, etc. Compare with Step/Direction

iEM-RS1708

41f01a585f453440365deb3f374f9719_1650879622841.zip (zip, 157.25K)


iEM-RS Series

Datenblatt

8f280354419f57b27bd332a6d8fb24bc_1666341937987.pdf (pdf, 635.81K)

Handbuch

iEM-RS_Series_User_Manual_V1.0 (pdf, 2.56M)

Motion_Studio_Stepper_Software_Quick_Start (pdf, 2.74M)

Software

Motion_Studio_Stepper_V1.3.10 (zip, 28.98M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

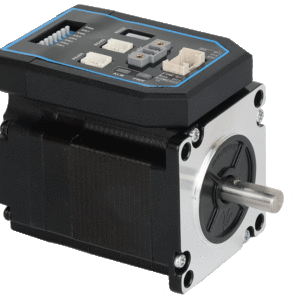

Specification	iEM-RS2313
Frame size	23 Nema
Length	78 mm
Holding torque	1.3 Nm
Communication	Modbus-RTU
Operation voltage	24…36 VDC
Input frequency	10 KHz, Max.
Logical voltage	12…24 VDC
# of inputs	3
# of outputs	1

Features

Low noise and vibration, smooth motion Support Modbus RTU protocol, Internal 16-segment position Commands Motion can be started by External IO or RS485 or HMI Support operation modes: Profile Position, Profile Velocity, Homing 7 configurable digital inputs, 3 optically isolated digital outputs iEM-RS17xx: 20-36VDC supply voltage, max output current 3.0A peak iEM-RS23xx: 20-50VDC supply voltage, max output current 7.0A peak RS232 port for tuning software connection, RS485 port for motion control Protections for over voltage, over current, etc. Compare with Step/Direction

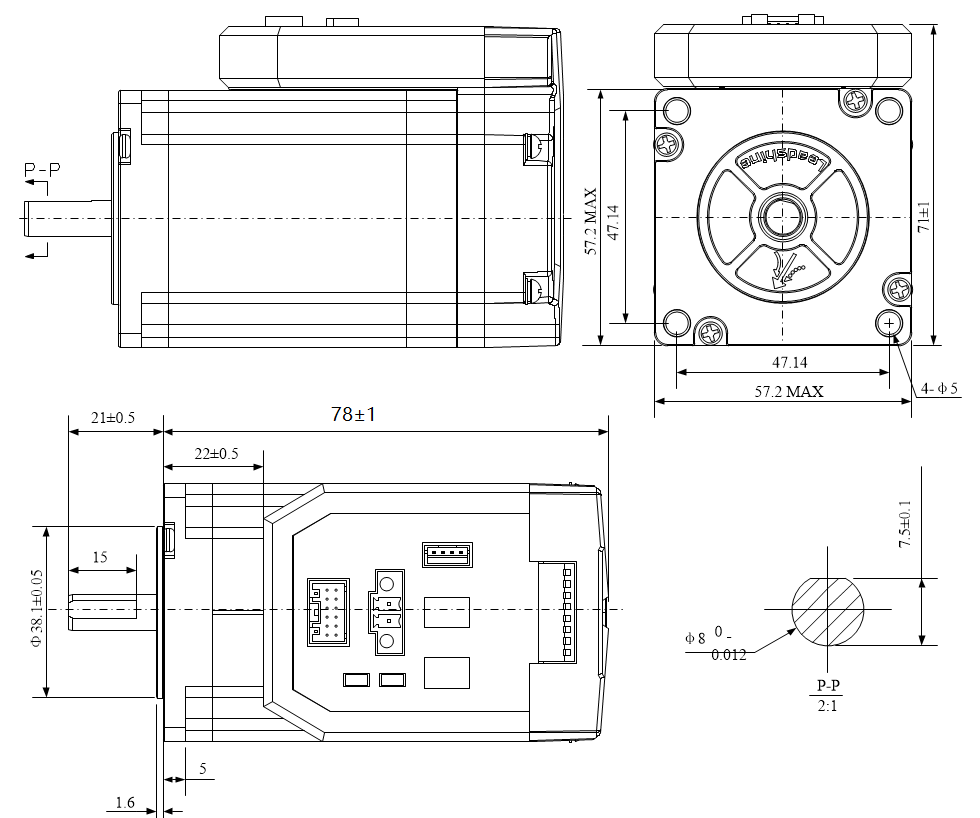

iEM-RS2313

5378435e37e7d75f87df3561fe1ab1be_1650879653622.zip (zip, 166.13K)

98d627fed2a829dc97f2fd721c9e064a_1650879636464.zip (zip, 1.52M)


iEM-RS Series

Datenblatt

8f280354419f57b27bd332a6d8fb24bc_1666341937987.pdf (pdf, 635.81K)

Handbuch

iEM-RS_Series_User_Manual_V1.0 (pdf, 2.56M)

Motion_Studio_Stepper_Software_Quick_Start (pdf, 2.74M)

Software

Motion_Studio_Stepper_V1.3.10 (zip, 28.98M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

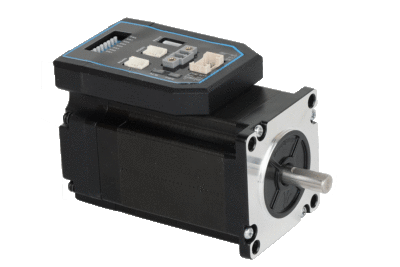

Specification	iEM-RS2323
Frame size	23 Nema
Length	99 mm
Holding torque	–
Communication	Modbus-RTU
Operation voltage	24…36 VDC
Input frequency	10 KHz, Max.
Logical voltage	12…24 VDC
# of inputs	3
# of outputs	1

Features

Low noise and vibration, smooth motion Support Modbus RTU protocol, Internal 16-segment position Commands Motion can be started by External IO or RS485 or HMI Support operation modes: Profile Position, Profile Velocity, Homing 7 configurable digital inputs, 3 optically isolated digital outputs iEM-RS17xx: 20-36VDC supply voltage, max output current 3.0A peak iEM-RS23xx: 20-50VDC supply voltage, max output current 7.0A peak RS232 port for tuning software connection, RS485 port for motion control Protections for over voltage, over current, etc. Compare with Step/Direction

iEM-RS2323

a5a5cdb72bf65ae2d1d96d7fc85adb5a_1650879689314.zip (zip, 164.21K)

efe26a16c06252e12e9a2321f7ab7c90_1650879665100.zip (zip, 1.7M)


iEM-RS Series

Datenblatt

8f280354419f57b27bd332a6d8fb24bc_1666341937987.pdf (pdf, 635.81K)

Handbuch

iEM-RS_Series_User_Manual_V1.0 (pdf, 2.56M)

Motion_Studio_Stepper_Software_Quick_Start (pdf, 2.74M)

Software

Motion_Studio_Stepper_V1.3.10 (zip, 28.98M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Weiterlesen	iEM-RS1706	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	iEM-RS1708	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	iEM-RS2313	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	iEM-RS2323	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.

Brushless DC Motors

Brushed DC Motors

Stepper Motors

Linear Actuators

Controller

Industrieautomation / Maschinenbau

Sicherheitstechnik / Schließtechnik

Smart Home und Gebäudetechnik

Medizintechnik

Akkutools

Automotive

iEM-RS Series

Ähnliche Produkte

iEM-2323

iCS-1703

iCS-1706

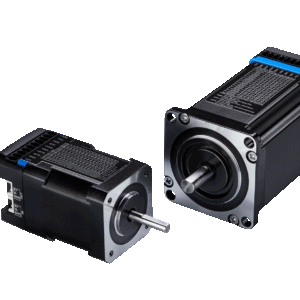

iEM Series
