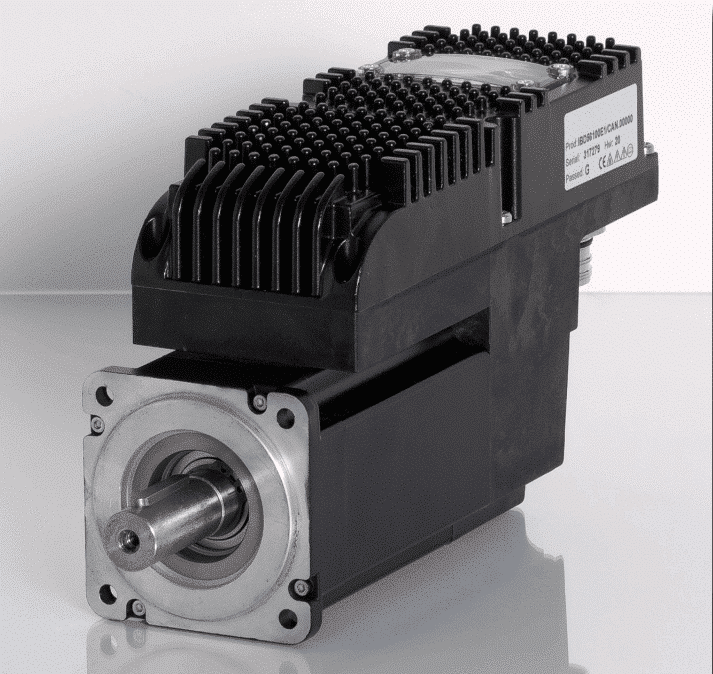

DUET HV 80

Name: DUET HV 80 - KOCO MOTION
SKU: DUET HV 80

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. MwSt.

Flange dimensions: 80 mm
Rated Output Power: 800 – 1068 W
Rated Torque: 2,55 . 3,4 Nm
Rated Speed: 3000 rpm
Fieldbus: Ethercat

Artikelnummer: DUET HV 80 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 80 mm
Rated Output Power: 800 – 1068 W
Rated Torque: 2,55 . 3,4 Nm
Rated Speed: 3000 rpm
Fieldbus: Ethercat

Produktvergleich

Specification	DUET HV 80 2,8 17	DUET HV 80 4 17
Rated Voltage	560 Vdc	560 Vdc
Auxiliary Voltage (+6% -10%)	24 Vdc	24 Vdc
Minimum Voltage	275 Vdc	275 Vdc
Maximum Voltage	740 Vdc	740 Vdc
Stall Torque	2.96 Nm	4 Nm
Peak Torque	8.4 Nm	12 Nm
Rated Torque	2.55 Nm	3.4 Nm
Rated Output Power	800 W	1068 W
Stall Current	1.75 Arms	2.5 Arms
Peak Current	5.8 Arms	7.5 Arms
Rated Current	1.64 Arms	2.19 Arms
Rated Speed @560Vdc	3000 rpm	3000 rpm
Maximum Speed @560Vdc	4000 rpm	4000 rpm
Torque Constant (± 5%)	1.6 Nm/Arms	1.6 Nm/Arms
Voltage Constant (± 5%)	97 Vrms/Krpm	96 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	7.9 Ω	6.5 Ω
Phase/phase inductance (± 10%)	35.4 mH	28.6 mH
Electrical time constant	4.48 ms	4.4 ms
Thermal Resistance	1.32 °C/W	1 °C/W
Mechanical time constant	0.53 ms	0.56 ms
Rotor Inertia without brake and without feedback	1.16 kg·cm²	1.58 kg·cm²
Duet weight	4.1 Kg	5.1 Kg
Duet weight with brake	4.8 Kg	6.5 Kg
Axial Load applied on the shaft’s center	110 N	110 N
Radial Load applied on the shaft’s center	350 N	350 N

Family Specification	DUET HV 80
Time Rating	Coninuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL /CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	5 to 85% (non-condensing)
Poles	8
Certification	CE
Recommendation	Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview	DUET HV 80
Flange dimensions	80 mm
Rated Output Power	800 – 1068 Watt
Rated Torque	2,55 . 3,4 Nm
Rated Speed	3000 rpm
Fieldbus	Ethercat

Optionen

Feedback

A1 = Absolute MultiturnEncoder 12+12 Bits 128 Sin/Cos revolution A3 = Absolute MultiturnEncoder 9+12 Bits 16 Sin/Cos revolution A5 = Absolute SingleturnEncoder 9 Bits 16 Sin/Cos revolution

Brake

0 = without brake 1 = with brake

Fieldbus

Ethercat

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

DUET HV 80

Datenblatt

Dimensions (pdf, 845.78K)

Torque-Speed-Chart (pdf, 530.48K)

DUET-Connectors (pdf, 715.57K)

DUET-Brake-Features (pdf, 202.73K)

DUET-Feedback-Features (pdf, 273.64K)

DUET-Wiring-Cables (pdf, 1.26M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	DUET HV 80 2,8 17
Rated Voltage	560 Vdc
Auxiliary Voltage (+6% -10%)	24 Vdc
Minimum Voltage	275 Vdc
Maximum Voltage	740 Vdc
Stall Torque	2.96 Nm
Peak Torque	8.4 Nm
Rated Torque	2.55 Nm
Rated Output Power	800 W
Stall Current	1.75 Arms
Peak Current	5.8 Arms
Rated Current	1.64 Arms
Rated Speed @560Vdc	3000 rpm
Maximum Speed @560Vdc	4000 rpm
Torque Constant (± 5%)	1.6 Nm/Arms
Voltage Constant (± 5%)	97 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	7.9 Ω
Phase/phase inductance (± 10%)	35.4 mH
Electrical time constant	4.48 ms
Thermal Resistance	1.32 °C/W
Mechanical time constant	0.53 ms
Rotor Inertia without brake and without feedback	1.16 kg·cm²
Duet weight	4.1 Kg
Duet weight with brake	4.8 Kg
Axial Load applied on the shaft’s center	110 N
Radial Load applied on the shaft’s center	350 N

Family Specification	DUET HV 80 2,8 17
Time Rating	Coninuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL /CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	5 to 85% (non-condensing)
Poles	8
Certification	CE
Recommendation	Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview	DUET HV 80 2,8 17
Flange dimensions	80 mm
Rated Output Power	800 – 1068 Watt
Rated Torque	2,55 . 3,4 Nm
Rated Speed	3000 rpm
Fieldbus	Ethercat

Optionen

Feedback

A1 = Absolute MultiturnEncoder 12+12 Bits 128 Sin/Cos revolution A3 = Absolute MultiturnEncoder 9+12 Bits 16 Sin/Cos revolution A5 = Absolute SingleturnEncoder 9 Bits 16 Sin/Cos revolution

Brake

0 = without brake 1 = with brake

Fieldbus

Ethercat

Mechanical Arrangement

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

DUET HV 80

Datenblatt

Dimensions (pdf, 845.78K)

Torque-Speed-Chart (pdf, 530.48K)

DUET-Connectors (pdf, 715.57K)

DUET-Brake-Features (pdf, 202.73K)

DUET-Feedback-Features (pdf, 273.64K)

DUET-Wiring-Cables (pdf, 1.26M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	DUET HV 80 4 17
Rated Voltage	560 Vdc
Auxiliary Voltage (+6% -10%)	24 Vdc
Minimum Voltage	275 Vdc
Maximum Voltage	740 Vdc
Stall Torque	4 Nm
Peak Torque	12 Nm
Rated Torque	3.4 Nm
Rated Output Power	1068 W
Stall Current	2.5 Arms
Peak Current	7.5 Arms
Rated Current	2.19 Arms
Rated Speed @560Vdc	3000 rpm
Maximum Speed @560Vdc	4000 rpm
Torque Constant (± 5%)	1.6 Nm/Arms
Voltage Constant (± 5%)	96 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	6.5 Ω
Phase/phase inductance (± 10%)	28.6 mH
Electrical time constant	4.4 ms
Thermal Resistance	1 °C/W
Mechanical time constant	0.56 ms
Rotor Inertia without brake and without feedback	1.58 kg·cm²
Duet weight	5.1 Kg
Duet weight with brake	6.5 Kg
Axial Load applied on the shaft’s center	110 N
Radial Load applied on the shaft’s center	350 N

Family Specification	DUET HV 80 4 17
Time Rating	Coninuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL /CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	5 to 85% (non-condensing)
Poles	8
Certification	CE
Recommendation	Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview	DUET HV 80 4 17
Flange dimensions	80 mm
Rated Output Power	800 – 1068 Watt
Rated Torque	2,55 . 3,4 Nm
Rated Speed	3000 rpm
Fieldbus	Ethercat

Optionen

Feedback

A1 = Absolute MultiturnEncoder 12+12 Bits 128 Sin/Cos revolution A3 = Absolute MultiturnEncoder 9+12 Bits 16 Sin/Cos revolution A5 = Absolute SingleturnEncoder 9 Bits 16 Sin/Cos revolution

Brake

0 = without brake 1 = with brake

Fieldbus

Ethercat

Mechanical Arrangement

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

DUET HV 80

Datenblatt

Dimensions (pdf, 845.78K)

Torque-Speed-Chart (pdf, 530.48K)

DUET-Connectors (pdf, 715.57K)

DUET-Brake-Features (pdf, 202.73K)

DUET-Feedback-Features (pdf, 273.64K)

DUET-Wiring-Cables (pdf, 1.26M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de
