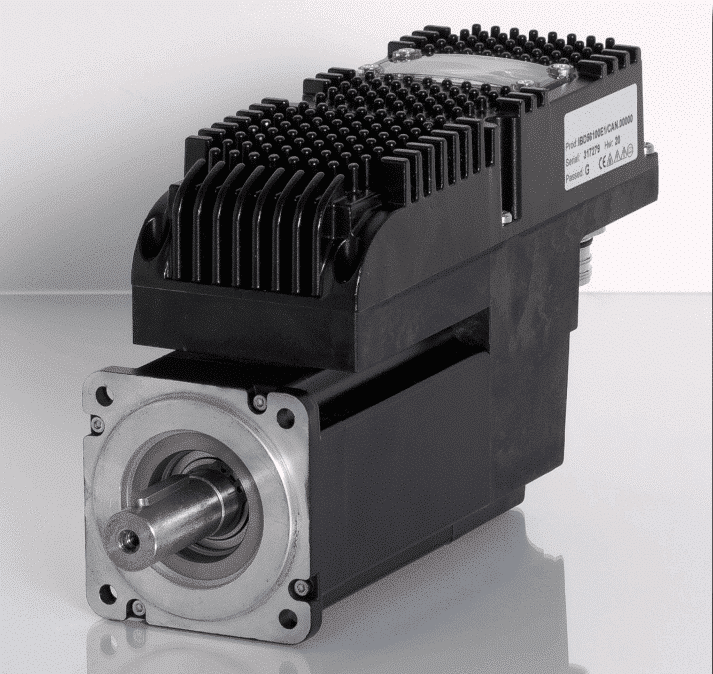

DUET HV 100

Name: DUET HV 100 - KOCO MOTION
SKU: DUET HV 100

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

Flange dimensions: 100 mm
Rated Output Power: 1320 – 1570 W
Rated Torque: 1,18 Nm
Rated Speed: 3000 rpm
Fieldbus: Ethercat

Artikelnummer: DUET HV 100 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 100 mm
Rated Output Power: 1320 – 1570 W
Rated Torque: 1,18 Nm
Rated Speed: 3000 rpm
Fieldbus: Ethercat

Produktvergleich

Specification

Parameter	Unit	DUET HV 100 5,6	DUET HV 100 8
Rated Voltage	Vdc	560	560
Auxiliary Voltage (+6% -10%)	Vdc	24	24
Minimum Voltage	Vdc	275	275
Maximum Voltage	Vdc	740	740
Stall Torque	Nm	5.6	8
Peak Torque	Nm	22	22
Rated Torque	Nm	4.2	5
Rated Output Power	W	1320	1570
Stall Current	Arms	3.5	5
Peak Current	Arms	13.8	13.8
Rated Current	Arms	2.71	3.22
Rated Speed @560Vdc	rpm	3000	3000
Maximum Speed @560Vdc	rpm	4000	4000
Torque Constant (± 5%)	Nm/Arms	1.6	1.6
Voltage Constant (± 5%)	Vrms/Krpm	97	97
Phase/phase resistance (± 10%@25°C)	Ohm	3.64	2.2
Phase/phase inductance (± 10%)	mH	19.7	13.13
Electrical time constant	ms	5.4	6
Thermal Resistance	°C/W	0.95	0.78
Mechanical time constant	ms	0.62	0.53
Rotor Inertia without brake and without feedback	kg·cm²	2.91	4.1
Duet weight	Kg	6.7	8.4
Duet weight with brake	Kg	7.9	9.6
Axial Load applied on the shaft’s center	N	225	225
Radial Load applied on the shaft’s center	N	626	626

Family Specification

Family Specification	Unit	DUET HV 100
Time Rating		Coninuous
Insulation Class		F
Enclosure		Totally enclosed. Self-cooled
Protection Class		IP 65 standard on the body
Motor Insulation System UL /CSA		cURus , DV155J File nr. : E216686
Ambient Temperature	°C	0 to 40
Ambient Humidity		5 to 85% (non-condensing)
Poles		8
Certification		CE
Recommendation		Rated output with 300 x 300 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview

Family Overview	Unit	DUET HV 100
Flange dimensions	mm	100
Rated Output Power	Watt	1320 – 1570
Rated Torque	Nm	1.18
Rated Speed	rpm	3000
Fieldbus		Ethercat

Optionen

Feedback

A1 = Absolute MultiturnEncoder 12+12 Bits 128 Sin/Cos revolution A3 = Absolute MultiturnEncoder 9+12 Bits 16 Sin/Cos revolution A5 = Absolute SingleturnEncoder 9 Bits 16 Sin/Cos revolution

Brake

0 = without brake 1 = with brake

Fieldbus

Ethercat

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

DUET HV 100

DUET-Brake-Features.pdf (pdf, 202.73K)

DUET-HV-60-80-100-142-Dimensions.pdf (pdf, 845.78K)

DUET-Feedback-Features.pdf (pdf, 273.64K)

DUET-Wiring-Cables.pdf (pdf, 1.26M)

DUET-HV-60-80-100-142-Torque-Speed-Chart.pdf (pdf, 530.48K)

Datenblatt

DUET-Connectors.pdf (pdf, 715.57K)
