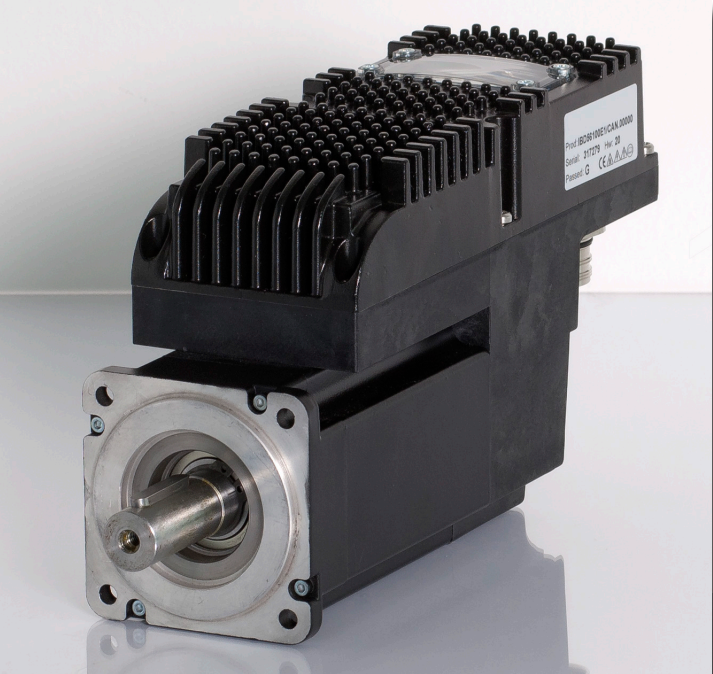

DUET HV 100 5,6

Name: DUET HV 100 5,6 - KOCO MOTION
SKU: DUET HV 100 5,6

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. 19 % MwSt.

Flange dimensions: 100 mm
Rated Output Power: 1320 – 1570 W
Rated Torque: 1,18 Nm
Rated Speed: 3000 rpm
Fieldbus: Ethercat

Artikelnummer: DUET HV 100 5,6 Kategorie: Servo Motors

Beschreibung

Beschreibung

Flange dimensions: 100 mm
Rated Output Power: 1320 – 1570 W
Rated Torque: 1,18 Nm
Rated Speed: 3000 rpm
Fieldbus: Ethercat

Specification	DUET HV 100 5,6
Rated Voltage	560 Vdc
Auxiliary Voltage (+6% -10%)	24 Vdc
Minimum Voltage	275 Vdc
Maximum Voltage	740 Vdc
Stall Torque	5.6 Nm
Peak Torque	22 Nm
Rated Torque	4.2 Nm
Rated Output Power	1320 W
Stall Current	3.5 Arms
Peak Current	13.8 Arms
Rated Current	2.71 Arms
Rated Speed @560Vdc	3000 rpm
Maximum Speed @560Vdc	4000 rpm
Torque Constant (± 5%)	1.6 Nm/Arms
Voltage Constant (± 5%)	97 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	3.64 Ω
Phase/phase inductance (± 10%)	19.7 mH
Electrical time constant	5.4 ms
Thermal Resistance	0.95 °C/W
Mechanical time constant	0.62 ms
Rotor Inertia without brake and without feedback	2.91 kg·cm²
Duet weight	6.7 Kg
Duet weight with brake	7.9 Kg
Axial Load applied on the shaft’s center	225 N
Radial Load applied on the shaft’s center	626 N

Family Specification	DUET HV 100 5,6
Time Rating	Coninuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL /CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	5 to 85% (non-condensing)
Poles	8
Certification	CE
Recommendation	Rated output with 300 x 300 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing

Family Overview	DUET HV 100 5,6
Flange dimensions	100 mm
Rated Output Power	1320 – 1570 Watt
Rated Torque	1.18 Nm
Rated Speed	3000 rpm
Fieldbus	Ethercat

Optionen

Feedback

A1 = Absolute MultiturnEncoder 12+12 Bits 128 Sin/Cos revolution A3 = Absolute MultiturnEncoder 9+12 Bits 16 Sin/Cos revolution A5 = Absolute SingleturnEncoder 9 Bits 16 Sin/Cos revolution

Brake

0 = without brake 1 = with brake

Fieldbus

Ethercat

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

DUET HV 100

Datenblatt

Dimensions (pdf, 845.78K)

Torque-Speed-Chart (pdf, 530.48K)

DUET-Connectors (pdf, 715.57K)

DUET-Brake-Features (pdf, 202.73K)

DUET-Feedback-Features (pdf, 273.64K)

DUET-Wiring-Cables (pdf, 1.26M)
