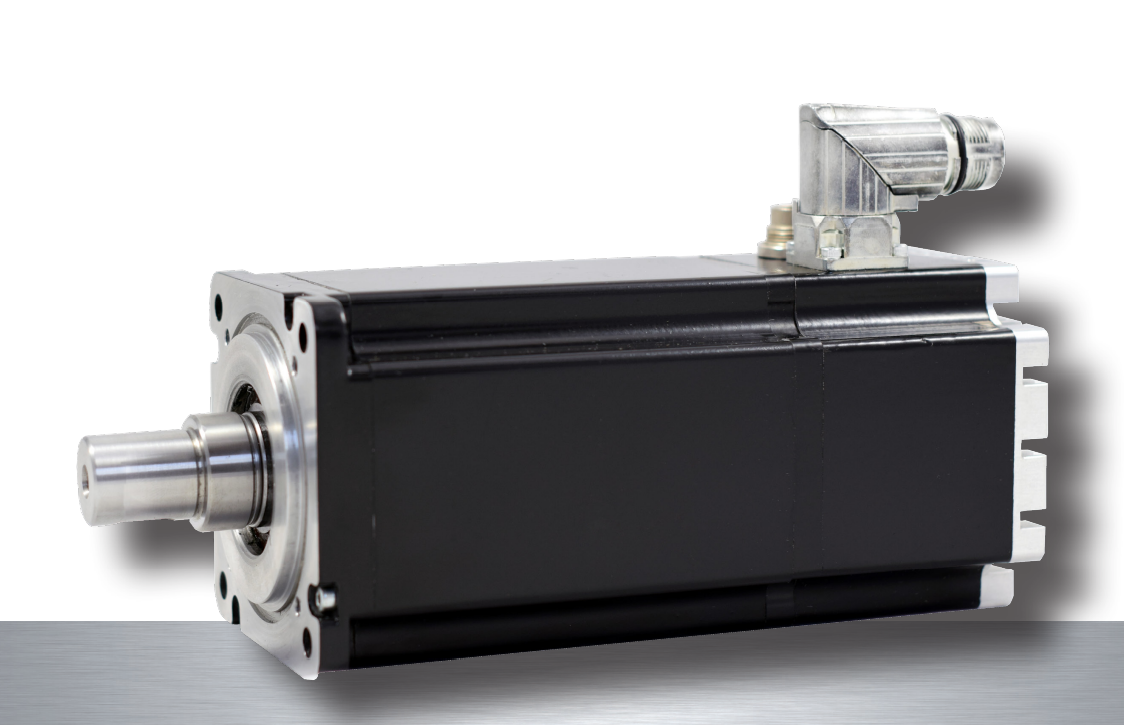

Name: DUET AD 80 - KOCO MOTION
SKU: DUET AD 80

Specification	DUET AD 80 1,5 03	DUET AD 80 2,8 02
Rated Voltage	48 Vdc	48 Vdc
Auxiliary Voltage (+6% -10%)	24 Vdc	24 Vdc
Minimum Voltage	40 Vdc	40 Vdc
Maximum Voltage	48 Vdc	48 Vdc
Stall Torque	1.74 Nm	2.22 Nm
Peak Torque	4.5 Nm	5.36 Nm
Rated Torque	1.53 Nm	2 Nm
Rated Output Power	480 W	630 W
Stall Current	12.3 Arms	19.65 Arms
Peak Current	35.1 Arms	50 Arms
Rated Current	11 Arms	17.7 Arms
Rated Speed @48Vdc	3000 rpm	3000 rpm
Maximum Speed @48Vdc	4500 rpm	4500 rpm
Torque Constant (± 5%)	0.141 Nm/Arms	0.113 Nm/Arms
Voltage Constant (± 5%)	8.5 Vrms/Krpm	6.8 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	0.136 Ω	0.064 Ω

Family Specification	DUET AD 80
Time Rating	Coninuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL /CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	5 to 85% (non-condensing)
Poles	8
Certification	CE
Recommendation	Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Continuous duty (S1) operation with cooling system appropriately sized.

Family Overview	DUET AD 80
Flange dimensions	80 mm
Rated Output Power	480 – 630 Watt
Rated Torque	1,53 – 2,0 Nm
Rated Speed	3000 rpm
Fieldbus	CanOpen/Modbus RTUY 485/Ethercat/Profinet

Optionen

Feedback

E6 = 14 Bit absolute singleturn encoder

Brake

0 = without brake 1 = with brake

Fieldbus

C = CanOpen D = Modbus RTU E = Ethercat P = Profinet

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

DUET AD 80

Datenblatt

Dimensions-PROFINET-Model (pdf, 584.52K)

Dimensions-ETHERCAT-Model (pdf, 560.32K)

Dimensions-CANOPEN-Model (pdf, 477.65K)

Dimensions-Modbus-Model (pdf, 514.81K)

Torque-Speed-Chart (pdf, 520.26K)

DUET-Connectors (pdf, 715.57K)

DUET-Brake-Features (pdf, 202.73K)

DUET-Feedback-Features (pdf, 273.64K)

DUET-Wiring-Cables (pdf, 1.26M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	DUET AD 80 1,5 03
Rated Voltage	48 Vdc
Auxiliary Voltage (+6% -10%)	24 Vdc
Minimum Voltage	40 Vdc
Maximum Voltage	48 Vdc
Stall Torque	1.74 Nm
Peak Torque	4.5 Nm
Rated Torque	1.53 Nm
Rated Output Power	480 W
Stall Current	12.3 Arms
Peak Current	35.1 Arms
Rated Current	11 Arms
Rated Speed @48Vdc	3000 rpm
Maximum Speed @48Vdc	4500 rpm
Torque Constant (± 5%)	0.141 Nm/Arms
Voltage Constant (± 5%)	8.5 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	0.136 Ω

Family Specification	DUET AD 80 1,5 03
Time Rating	Coninuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL /CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	5 to 85% (non-condensing)
Poles	8
Certification	CE
Recommendation	Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Continuous duty (S1) operation with cooling system appropriately sized.

Family Overview	DUET AD 80 1,5 03
Flange dimensions	80 mm
Rated Output Power	480 – 630 Watt
Rated Torque	1,53 – 2,0 Nm
Rated Speed	3000 rpm
Fieldbus	CanOpen/Modbus RTUY 485/Ethercat/Profinet

Optionen

Feedback

E6 = 14 Bit absolute singleturn encoder

Brake

0 = without brake 1 = with brake

Fieldbus

C = CanOpen D = Modbus RTU E = Ethercat P = Profinet

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

DUET AD 80

Datenblatt

Dimensions-PROFINET-Model (pdf, 584.52K)

Dimensions-ETHERCAT-Model (pdf, 560.32K)

Dimensions-CANOPEN-Model (pdf, 477.65K)

Dimensions-Modbus-Model (pdf, 514.81K)

Torque-Speed-Chart (pdf, 520.26K)

DUET-Connectors (pdf, 715.57K)

DUET-Brake-Features (pdf, 202.73K)

DUET-Feedback-Features (pdf, 273.64K)

DUET-Wiring-Cables (pdf, 1.26M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	DUET AD 80 2,8 02
Phase/phase inductance (± 10%)	0.24 mH
Electrical time constant	3.75 ms
Thermal Resistance	1.4 °C/W
Mechanical time constant	0.65 ms
Rotor Inertia without brake and without feedback	1.16 kg·cm²
Duet weight	3.3 Kg
Duet weight with brake	4 Kg
Axial Load applied on the shaft’s center	110 N
Radial Load applied on the shaft’s center	350 N
Rated Voltage	48 Vdc
Auxiliary Voltage (+6% -10%)	24 Vdc
Minimum Voltage	40 Vdc
Maximum Voltage	48 Vdc
Stall Torque	2.22 Nm
Peak Torque	5.36 Nm
Rated Torque	2 Nm
Rated Output Power	630 W
Stall Current	19.65 Arms
Peak Current	50 Arms
Rated Current	17.7 Arms
Rated Speed @48Vdc	3000 rpm
Maximum Speed @48Vdc	4500 rpm
Torque Constant (± 5%)	0.113 Nm/Arms
Voltage Constant (± 5%)	6.8 Vrms/Krpm
Phase/phase resistance (± 10%@25°C)	0.064 Ω

Family Specification	DUET AD 80 2,8 02
Time Rating	Coninuous
Insulation Class	F
Enclosure	Totally enclosed. Self-cooled
Protection Class	IP 65 standard on the body
Motor Insulation System UL /CSA	cURus , DV155J File nr. : E216686
Ambient Temperature	0 to 40 °C
Ambient Humidity	5 to 85% (non-condensing)
Poles	8
Certification	CE
Recommendation	Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Continuous duty (S1) operation with cooling system appropriately sized.

Family Overview	DUET AD 80 2,8 02
Flange dimensions	80 mm
Rated Output Power	480 – 630 Watt
Rated Torque	1,53 – 2,0 Nm
Rated Speed	3000 rpm
Fieldbus	CanOpen/Modbus RTUY 485/Ethercat/Profinet

Optionen

Feedback

E6 = 14 Bit absolute singleturn encoder

Brake

0 = without brake 1 = with brake

Fieldbus

C = CanOpen D = Modbus RTU E = Ethercat P = Profinet

Mechanical Arrangement

0 – Shaft with key / without oil seal (front flange side IP 54) 1 – Shaft with key / with oil seal (front flange side IP 65) 2 – Shaft without key / without oil seal (front flange side IP 54) 3 – Shaft without key / with oil seal (front flange side IP 65)

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

DUET AD 80

Datenblatt

Dimensions-PROFINET-Model (pdf, 584.52K)

Dimensions-ETHERCAT-Model (pdf, 560.32K)

Dimensions-CANOPEN-Model (pdf, 477.65K)

Dimensions-Modbus-Model (pdf, 514.81K)

Torque-Speed-Chart (pdf, 520.26K)

DUET-Connectors (pdf, 715.57K)

DUET-Brake-Features (pdf, 202.73K)

DUET-Feedback-Features (pdf, 273.64K)

DUET-Wiring-Cables (pdf, 1.26M)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Weiterlesen	DUET AD 80 1,5 03	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	DUET AD 80 2,8 02	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
