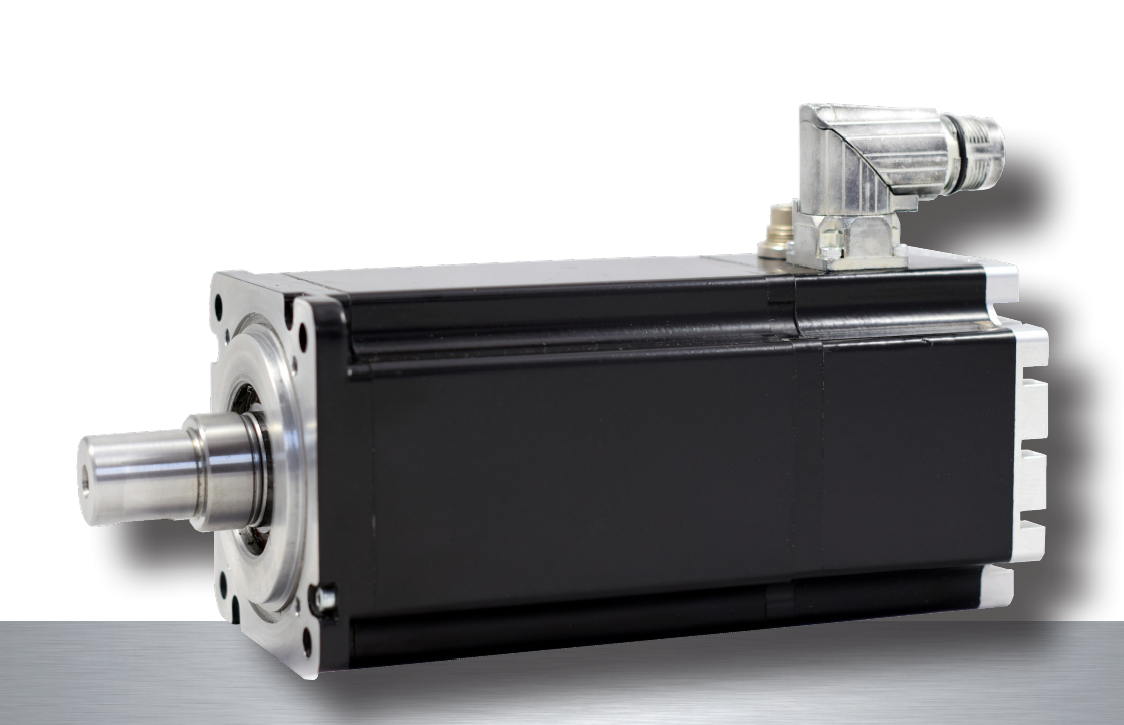

Specification
| Parameter | Unit | DUET AD 80 1,5 03 | DUET AD 80 2,8 02 |
|---|---|---|---|
| Rated voltage | Vdc | 48 | 48 |
| Peak current | Arms | 35.1 | 50 |
| Nominal current | Arms | 11 | 17.7 |
| Rated Speed @48Vdc | rpm | 3000 | 3000 |
| Maximum Speed @48Vdc | rpm | 4500 | 4500 |
| Torque Constant (± 5%) | Nm/Arms | 0.141 | 0.113 |
| Voltage constant | Vrms/Krpm | 8.5 | 6.8 |
| Phase resistance | Ω | 0.136 | 0.064 |
| Phase inductance | – | 0.24 | |
| Electrical time constant | – | 3.75 | |
| Thermal resistance | – | 1.4 | |
| Auxiliary Voltage (+6% -10%) | Vdc | 24 | 24 |
| Mechanical time constant | – | 0.65 | |
| Rotor Inertia without brake and without feedback | – | 1.16 | |
| Duet weight | – | 3.3 | |
| Duet weight with brake | – | 4 | |
| Axial Load applied on the shaft’s center | – | 110 | |
| Radial Load applied on the shaft’s center | – | 350 | |
| Motor length (without brake) | mm | 185 | 210 |
| Motor length (with brake) | mm | 227 | 252 |
| Minimum voltage | Vdc | 40 | 40 |
| Maximum voltage | Vdc | 48 | 48 |
| Stall torque | Nm | 1.74 | 2.22 |
| Peak Torque | Nm | 4.5 | 5.36 |
| Nominal torque | Nm | 1.53 | 2 |
| Rated output power | W | 480 | 630 |
| Stall current | Arms | 12.3 | 19.65 |
Family Specification
| Family Specification | Unit | DUET AD 80 |
|---|---|---|
| Time Rating | Coninuous | |
| Recommendation | Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Continuous duty (S1) operation with cooling system appropriately sized. | |
| Insulation Class | F | |
| Enclosure | Totally enclosed. Self-cooled | |
| Protection Class | IP 65 standard on the body | |
| Motor Insulation System UL /CSA | cURus , DV155J File nr. : E216686 | |
| Ambient Temperature | °C | 0 to 40 |
| Ambient Humidity | 5 to 85% (non-condensing) | |
| Poles | 8 | |
| Certification | CE |
Family Overview
| Family Overview | Unit | DUET AD 80 |
|---|---|---|
| Flange dimensions | mm | 80 |
| Rated Output Power | Watt | 480 – 630 |
| Rated Torque | Nm | 1,53 – 2,0 |
| Rated Speed | rpm | 3000 |
| Fieldbus | CanOpen/Modbus RTUY 485/Ethercat/Profinet |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
DUET AD 80
datasheet
| Parameter | Unit | DUET AD 80 1,5 03 |
|---|---|---|
| Rated voltage | Vdc | 48 |
| Peak current | Arms | 35.1 |
| Nominal current | Arms | 11 |
| Rated Speed @48Vdc | rpm | 3000 |
| Maximum Speed @48Vdc | rpm | 4500 |
| Torque Constant (± 5%) | Nm/Arms | 0.141 |
| Voltage constant | Vrms/Krpm | 8.5 |
| Phase resistance | Ω | 0.136 |
| Phase inductance | – | |
| Electrical time constant | – | |
| Thermal resistance | – | |
| Auxiliary Voltage (+6% -10%) | Vdc | 24 |
| Mechanical time constant | – | |
| Rotor Inertia without brake and without feedback | – | |
| Duet weight | – | |
| Duet weight with brake | – | |
| Axial Load applied on the shaft’s center | – | |
| Radial Load applied on the shaft’s center | – | |
| Motor length (without brake) | mm | 185 |
| Motor length (with brake) | mm | 227 |
| Minimum voltage | Vdc | 40 |
| Maximum voltage | Vdc | 48 |
| Stall torque | Nm | 1.74 |
| Peak Torque | Nm | 4.5 |
| Nominal torque | Nm | 1.53 |
| Rated output power | W | 480 |
| Stall current | Arms | 12.3 |
Family Specification
| Family Specification | Unit | DUET AD 80 1,5 03 |
|---|---|---|
| Time Rating | Coninuous | |
| Recommendation | Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Continuous duty (S1) operation with cooling system appropriately sized. | |
| Insulation Class | F | |
| Enclosure | Totally enclosed. Self-cooled | |
| Protection Class | IP 65 standard on the body | |
| Motor Insulation System UL /CSA | cURus , DV155J File nr. : E216686 | |
| Ambient Temperature | °C | 0 to 40 |
| Ambient Humidity | 5 to 85% (non-condensing) | |
| Poles | 8 | |
| Certification | CE |
Family Overview
| Family Overview | Unit | DUET AD 80 1,5 03 |
|---|---|---|
| Flange dimensions | mm | 80 |
| Rated Output Power | Watt | 480 – 630 |
| Rated Torque | Nm | 1,53 – 2,0 |
| Rated Speed | rpm | 3000 |
| Fieldbus | CanOpen/Modbus RTUY 485/Ethercat/Profinet |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
PDF Downloads
DUET AD 80
datasheet
| Parameter | Unit | DUET AD 80 2,8 02 |
|---|---|---|
| Rated voltage | Vdc | 48 |
| Peak current | Arms | 50 |
| Nominal current | Arms | 17.7 |
| Rated Speed @48Vdc | rpm | 3000 |
| Maximum Speed @48Vdc | rpm | 4500 |
| Torque Constant (± 5%) | Nm/Arms | 0.113 |
| Voltage constant | Vrms/Krpm | 6.8 |
| Phase resistance | Ω | 0.064 |
| Phase inductance | mH | 0.24 |
| Electrical time constant | ms | 3.75 |
| Thermal resistance | °C/W | 1.4 |
| Auxiliary Voltage (+6% -10%) | Vdc | 24 |
| Mechanical time constant | ms | 0.65 |
| Rotor Inertia without brake and without feedback | kg·cm² | 1.16 |
| Duet weight | Kg | 3.3 |
| Duet weight with brake | Kg | 4 |
| Axial Load applied on the shaft’s center | N | 110 |
| Radial Load applied on the shaft’s center | N | 350 |
| Motor length (without brake) | mm | 210 |
| Motor length (with brake) | mm | 252 |
| Minimum voltage | Vdc | 40 |
| Maximum voltage | Vdc | 48 |
| Stall torque | Nm | 2.22 |
| Peak Torque | Nm | 5.36 |
| Nominal torque | Nm | 2 |
| Rated output power | W | 630 |
| Stall current | Arms | 19.65 |
Family Specification
| Family Specification | Unit | DUET AD 80 2,8 02 |
|---|---|---|
| Time Rating | Coninuous | |
| Recommendation | Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Continuous duty (S1) operation with cooling system appropriately sized. | |
| Insulation Class | F | |
| Enclosure | Totally enclosed. Self-cooled | |
| Protection Class | IP 65 standard on the body | |
| Motor Insulation System UL /CSA | cURus , DV155J File nr. : E216686 | |
| Ambient Temperature | °C | 0 to 40 |
| Ambient Humidity | 5 to 85% (non-condensing) | |
| Poles | 8 | |
| Certification | CE |
Family Overview
| Family Overview | Unit | DUET AD 80 2,8 02 |
|---|---|---|
| Flange dimensions | mm | 80 |
| Rated Output Power | Watt | 480 – 630 |
| Rated Torque | Nm | 1,53 – 2,0 |
| Rated Speed | rpm | 3000 |
| Fieldbus | CanOpen/Modbus RTUY 485/Ethercat/Profinet |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
