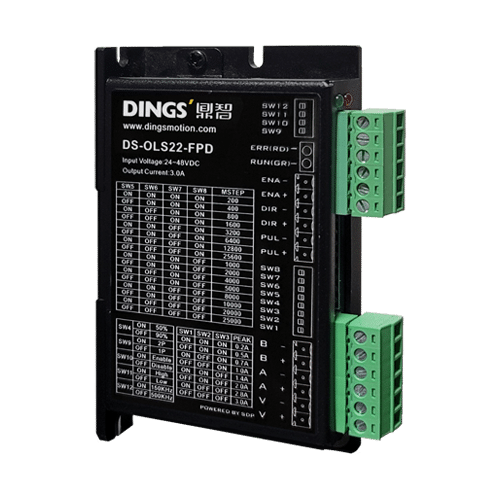

Beschreibung
Features
Specification
Installation (unit : mm)
1. When designs installation, please consider the size of
terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually
within 60°C and motor is within 80°C.
3. When install driver, please install it vertically and laterally
to make the radiator from strong air convection, when
necessary, install a fan near the driver to force heat
dissipation to ensure that the driver works within reliable
working temperature range.
1. Input power : DC 12V – 48V
2. 8 Output current settings
3. PWM constant current bipolar subdivision drive
4. 16 Micro-step resolutions of DIP
5. Single / Double pulse selection
6. Optically isolated input function
7. Motor short circuit protection
8. Compact design, low noise, low vibration.
9. With off-line function

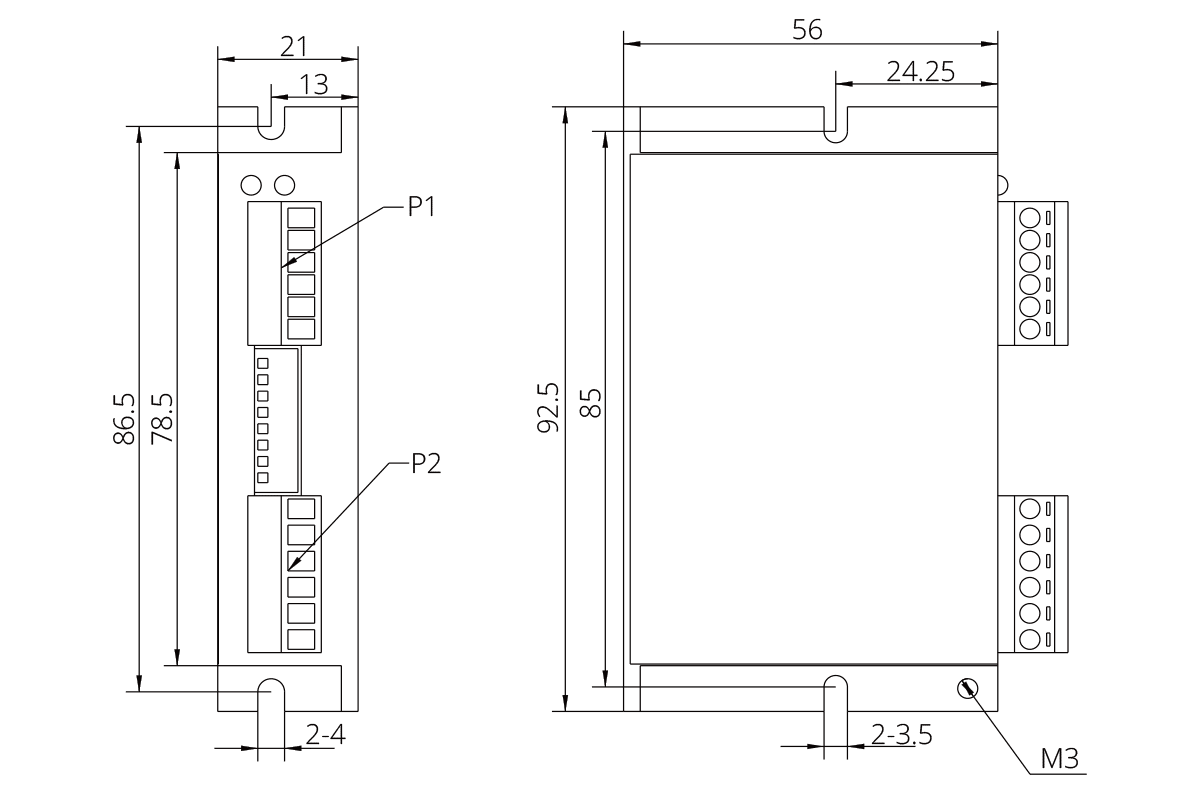

DS-OLS22-FPD-Installation.png1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.

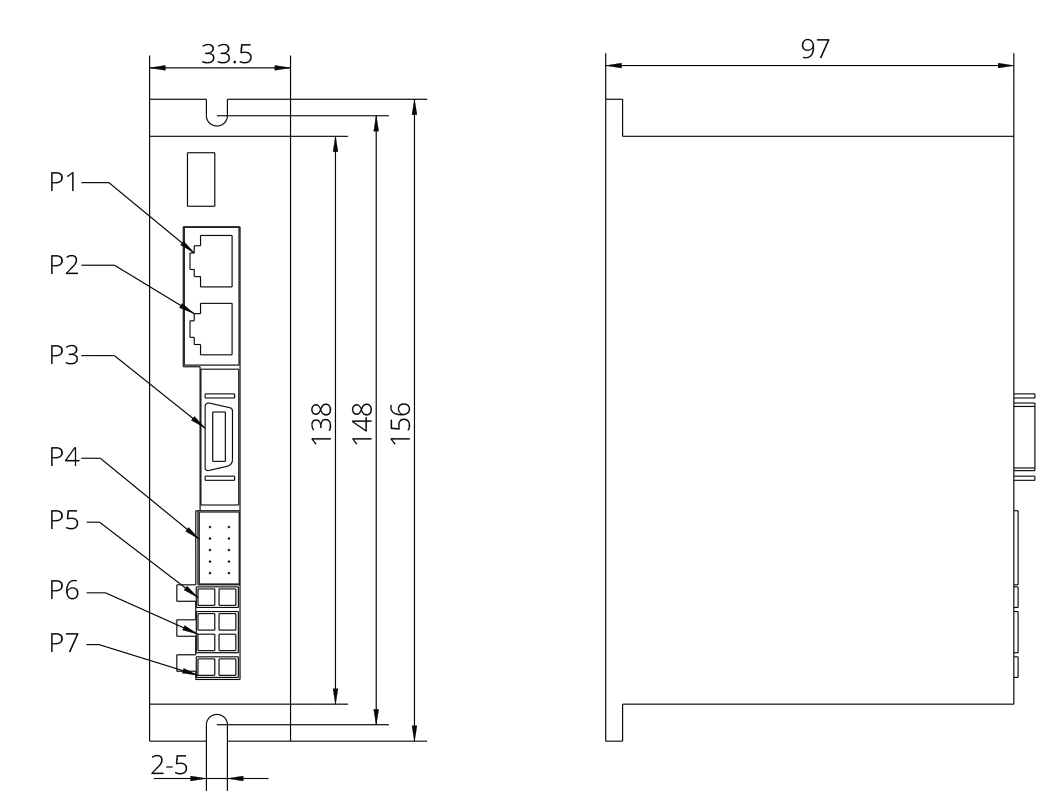

DS-CLS9-FCAO-Installation.png1. When designs installation, please consider the size of terminals and pace required for heat dissipation.
2. The reliable working temperature of the driver is usually within 60℃ and motor is within 80℃.
3. When install driver, please install it vertically and laterally to make the radiator from strong air convection, when necessary, install a fan near the driver to force heat dissipation to ensure that the driver works within reliable working temperature range.
