KOCO offers wide range of Brushless DC Motor electronics for speed and position control.
From low current to Maximum 30A, KOCO provides 4 different kinds of speed controller via RS485 and Analog command.

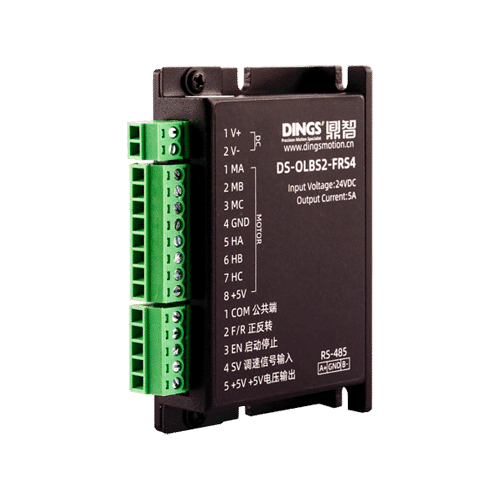

DS-OLBS2-FRS4 Manual
Specification | DS-OLBS2-FRS4 |
---|---|
Adapted Motor | Less than 80W Brushless DC motor |
Power Supply | 12 – 24 VDC |
Output Current | 5 A |
Speed Controlled Analog Voltage | 0 – 5 V |
Structure | Wall mounting |
Cooling Method | Air cooling |
Control Signal | Full isolation of input and output signals |
Protections | Over voltage, under voltage, over current, over temperature, abnormal hall signal and other fault alarms |
Communication Mode | RS-485 Multi-axes communication |
Operating Temperature | 0 ~ 45°C °C |
Storage Temperature | -20 ~ 85°C °C |
Operating Humidity | <85% RH |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
