Beschreibung
KOCO offers wide range of Brushless DC Motor electronics for speed and position control.
From low current to Maximum 30A, KOCO provides 4 different kinds of speed controller via RS485 and Analog command.
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. 19 % MwSt.
KOCO offers wide range of Brushless DC Motor electronics for speed and position control.
From low current to Maximum 30A, KOCO provides 4 different kinds of speed controller via RS485 and Analog command.
KOCO offers wide range of Brushless DC Motor electronics for speed and position control.
From low current to Maximum 30A, KOCO provides 4 different kinds of speed controller via RS485 and Analog command.

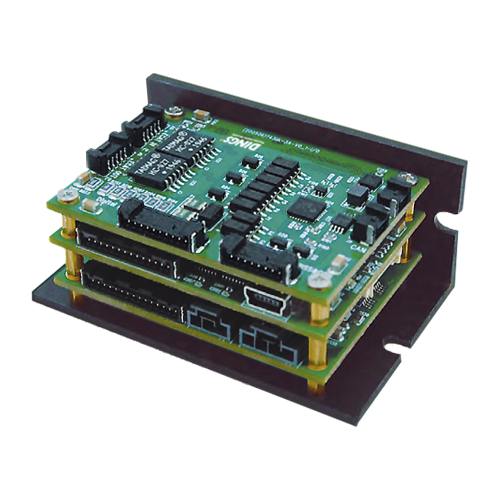

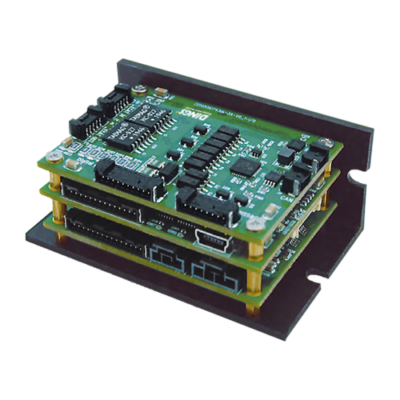

Specification | DS-BVM-FCAO/FETC |
---|---|
Adapted Motor | DC / BLDC / PMSM / VCM |
Current (Torque) Control | Control periodic 24KHz |
Velocity & Position Control | Control periodic 2KHz |
Reference Command | USB + CANopen or EtherCAT (CoE, FoE) |
Auto Tuning | Automatic self-configuration and optimization of motor phasing, wires, current loop, velocity control loop. |
User Interface | GUI : DINGS’ servo studio, Setting, Drive, Motor, Feedback, I/O, Motion |
Protective Functions | Under-and over-voltage, Over-current, Over-load (with PT), Drive over-temperature, Feedback sensor signal lost |
Ambient temperature | 0 ~ 45 °C |
Storage Temperature | 0 ~ 70 °C |
Operating Humidity | 10 ~ 90% RH |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
