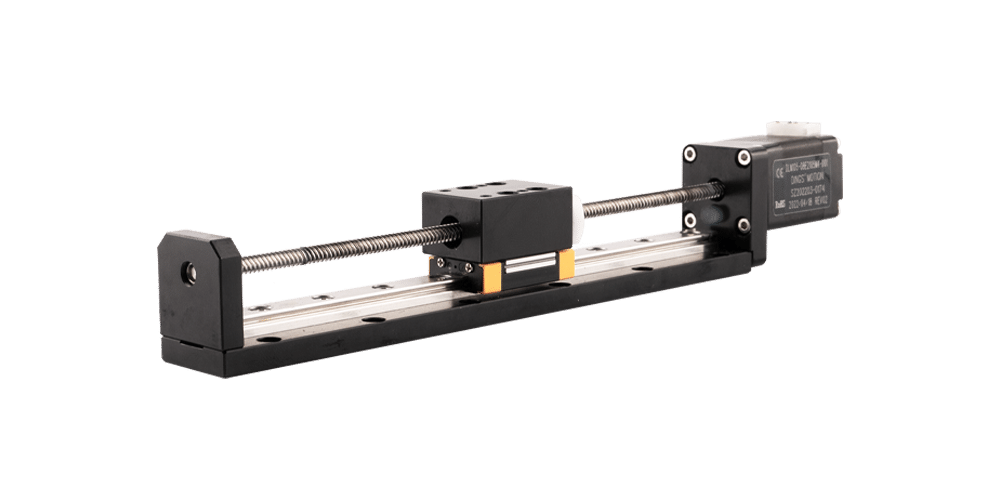

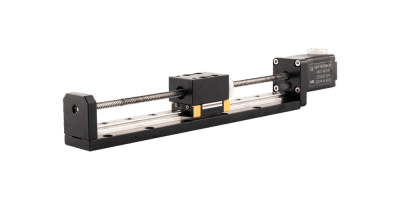

Based on KOCO platform products, high precision of lead screw linear actuator and self-developed simple linear module, DLM 20mm series is compact and reliable structure of linear solution.
DLM 20mm Series is good precision, high diversity of optional stroke and lead based customization linear module which can provide customers with integrated customization solutions.
Based on KOCO platform products, high precision of lead screw linear actuator and self-developed simple linear module, DLM 20mm series is compact and reliable structure of linear solution.
DLM 20mm Series is good precision, high diversity of optional stroke and lead based customization linear module which can provide customers with integrated customization solutions.
| Parameter | Unit | 8E2105 | 8E2205 |
|---|---|---|---|
| Voltage | V | 2.5 | 4.4 |
| Current | A | 0.5 | 0.5 |
| Resistance | Ohm | 5.1 | 8.8 |
| Inductance | mH | 1.5 | 2.7 |
| Motor Length | mm | 27.2 | 38.1 |
| Lead Wire No. | 4 | 4 |
| Lead Screw Code | Unit | DLM – Size 20mm |
|---|---|---|
| AF, Screw Lead | Screw Dia.mm | 3.5 |
| AA, Screw Lead | Screw Dia.mm | 3.5 |
| AB, Screw Lead | Screw Dia.mm | 3.5 |
| B, Screw Lead | Screw Dia.mm | 3.5 |
| G, Screw Lead | Screw Dia.mm | 3.5 |
| M, Screw Lead | Screw Dia.mm | 3.5 |
| T, Screw Lead | Screw Dia.mm | 3.5 |
| Mechanical Specifications | Unit | DLM – Size 20mm |
|---|---|---|
| C100B(dyn) | N | 445 |
| Co(stat) | N | 720 |
| Mro | Nm | 2.6 |
| Mpo | Nm | 1.65 |
| Myo | Nm | 1.65 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

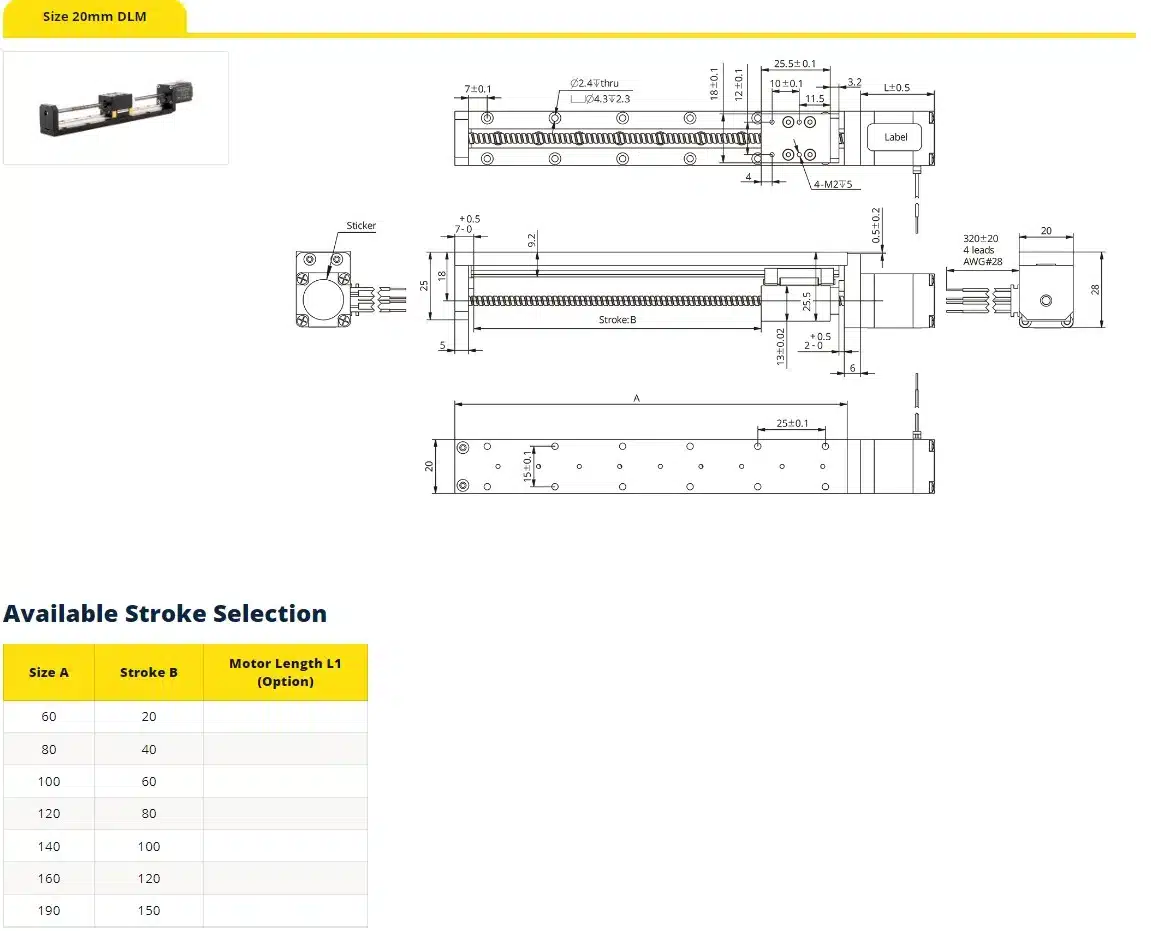

Size 20mm DLM.jpg

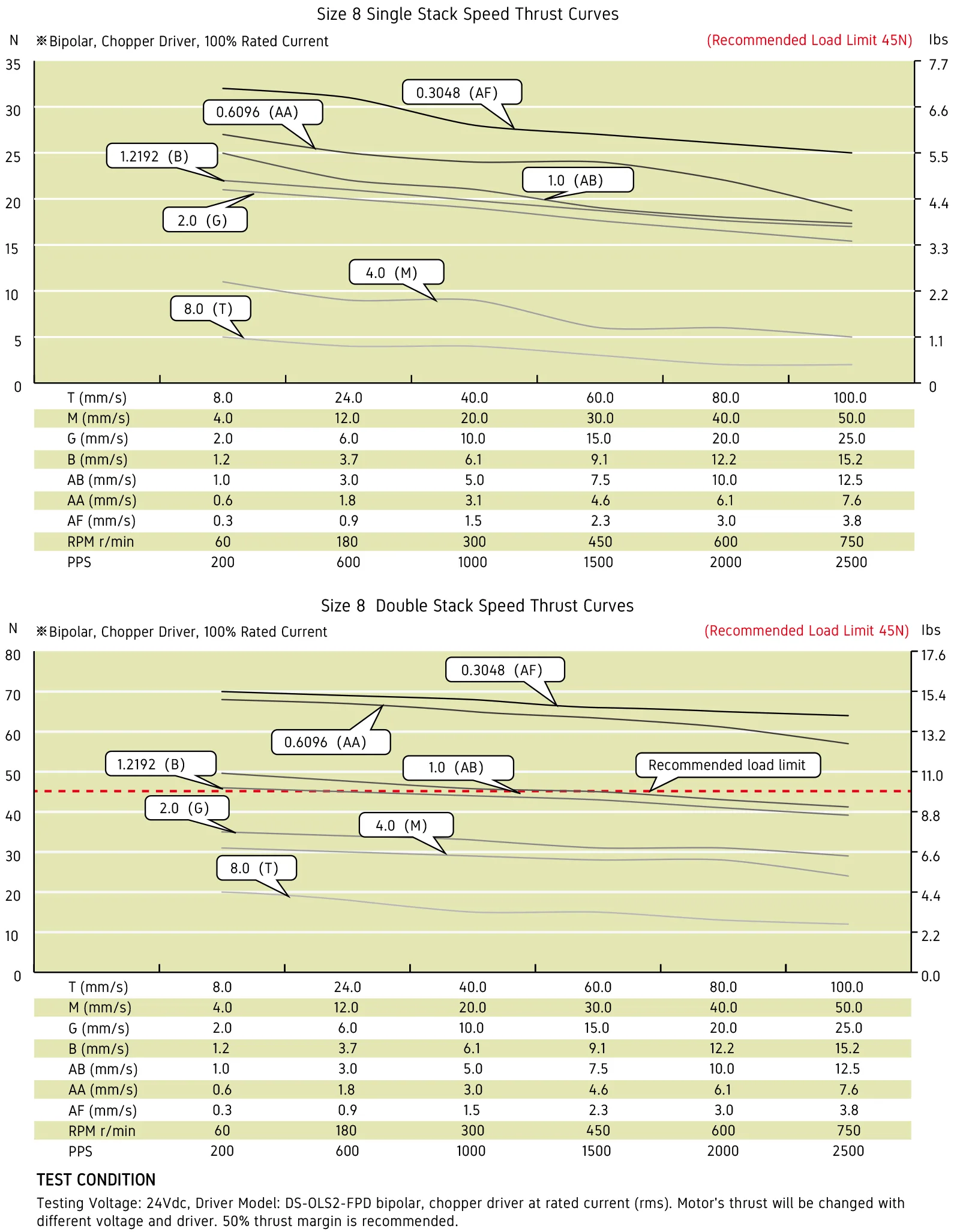

Double Stack Speed Thrust Curves
Single Stack Speed Thrust Curves
| Parameter | Unit | 8E2105 |
|---|---|---|
| Voltage | V | 2.5 |
| Current | A | 0.5 |
| Resistance | Ohm | 5.1 |
| Inductance | mH | 1.5 |
| Motor Length | mm | 27.2 |
| Lead Wire No. | 4 |
| Lead Screw Code | Unit | 8E2105 |
|---|---|---|
| AF, Screw Lead | Screw Dia.mm | 3.5 |
| AA, Screw Lead | Screw Dia.mm | 3.5 |
| AB, Screw Lead | Screw Dia.mm | 3.5 |
| B, Screw Lead | Screw Dia.mm | 3.5 |
| G, Screw Lead | Screw Dia.mm | 3.5 |
| M, Screw Lead | Screw Dia.mm | 3.5 |
| T, Screw Lead | Screw Dia.mm | 3.5 |
| Mechanical Specifications | Unit | 8E2105 |
|---|---|---|
| C100B(dyn) | N | 445 |
| Co(stat) | N | 720 |
| Mro | Nm | 2.6 |
| Mpo | Nm | 1.65 |
| Myo | Nm | 1.65 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Double Stack Speed Thrust Curves
Single Stack Speed Thrust Curves
| Parameter | Unit | 8E2205 |
|---|---|---|
| Voltage | V | 4.4 |
| Current | A | 0.5 |
| Resistance | Ohm | 8.8 |
| Inductance | mH | 2.7 |
| Motor Length | mm | 38.1 |
| Lead Wire No. | 4 |
| Lead Screw Code | Unit | 8E2205 |
|---|---|---|
| AF, Screw Lead | Screw Dia.mm | 3.5 |
| AA, Screw Lead | Screw Dia.mm | 3.5 |
| AB, Screw Lead | Screw Dia.mm | 3.5 |
| B, Screw Lead | Screw Dia.mm | 3.5 |
| G, Screw Lead | Screw Dia.mm | 3.5 |
| M, Screw Lead | Screw Dia.mm | 3.5 |
| T, Screw Lead | Screw Dia.mm | 3.5 |
| Mechanical Specifications | Unit | 8E2205 |
|---|---|---|
| C100B(dyn) | N | 445 |
| Co(stat) | N | 720 |
| Mro | Nm | 2.6 |
| Mpo | Nm | 1.65 |
| Myo | Nm | 1.65 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.

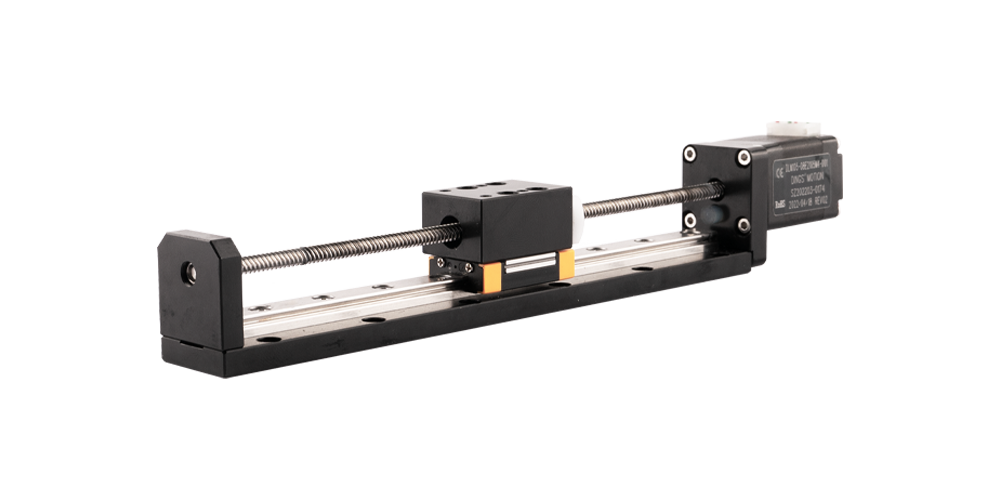

Size 20mm DLM.jpg
Double Stack Speed Thrust Curves
Single Stack Speed Thrust Curves
