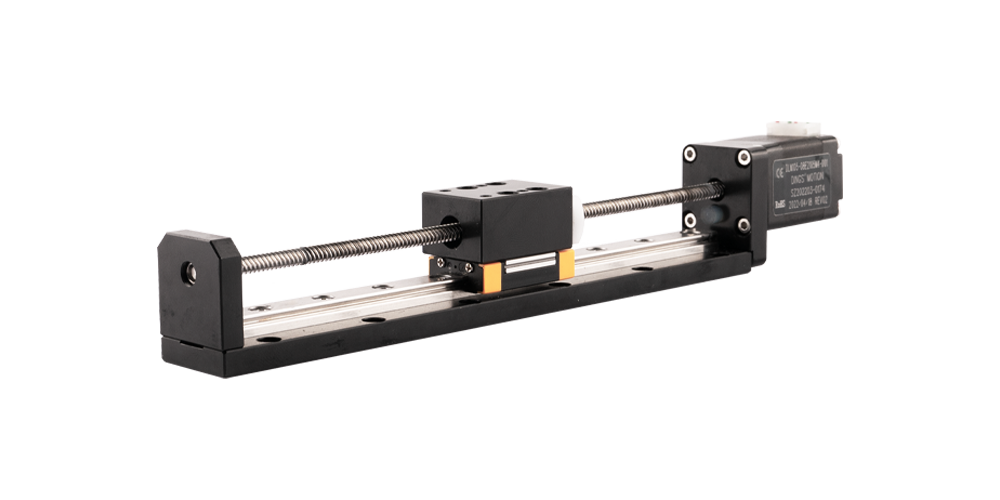

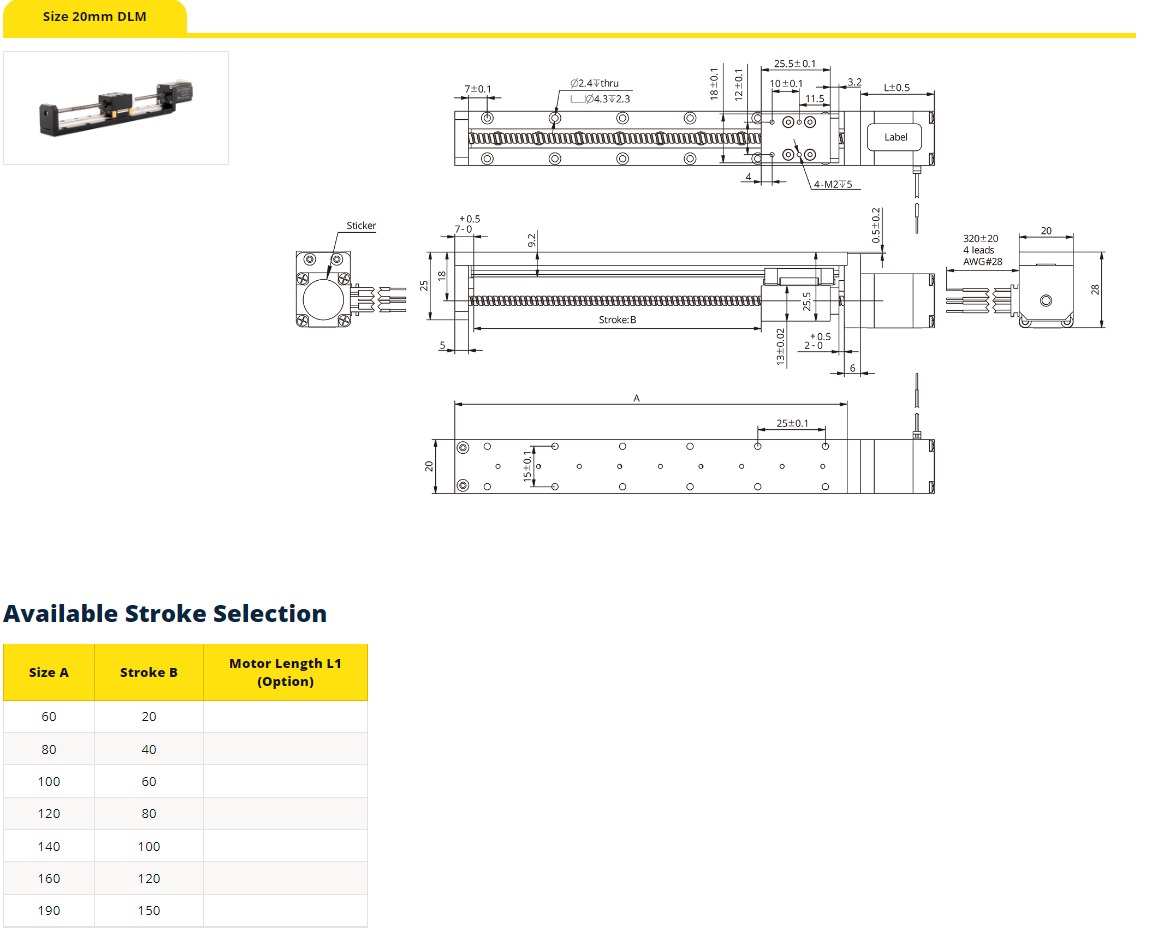

DLM Size 20 mm is a compact, reliable lead screw linear module for precise linear motion and customized integrated solutions. It offers multiple lead and stroke options, dynamic force up to 445 N, static force up to 720 N, and travel per step from 0.0015 to 0.04 mm.
| Parameter | Unit | 8E2105 | 8E2205 |
|---|---|---|---|
| Rated voltage | V | 2.5 | 4.4 |
| Current | A | 0.5 | 0.5 |
| Winding resistance | Ω | 5.1 | 8.8 |
| Inductance | mH | 1.5 | 2.7 |
| Motor length | mm | 27.2 | 38.1 |
| Lead Wire No. | 4 | 4 |
| Screw Dia. | Lead | Lead Code | Travel Per Step @ 1.8° |
|---|---|---|---|
| 3.5 mm | 0.3 mm | AF | 0.0015 mm |
| 3.5 mm | 0.6096 mm | AA | 0.003048 mm |
| 3.5 mm | 1 mm | AB | 0.005 mm |
| 3.5 mm | 1.2192 mm | B | 0.006096 mm |
| 3.5 mm | 2 mm | G | 0.01 mm |
| 3.5 mm | 2.4384 mm | J | 0.012192 mm |
| 3.5 mm | 4 mm | M | 0.02 mm |
| 3.5 mm | 8 mm | T | 0.04 mm |
| Mechanical Specifications | Unit | DLM – Size 20mm |
|---|---|---|
| Max dynamic force for 100km stage travel distance C100B(dyn) | N | 445 |
| Max static force in movement direction Co(stat) | N | 720 |
| Max torque around roll axis (M_roll) | Nm | 2.6 |
| Max torque around pitch axis (M_pitch) | Nm | 1.65 |
| Max torque around yaw axis (M_yaw) | Nm | 1.65 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

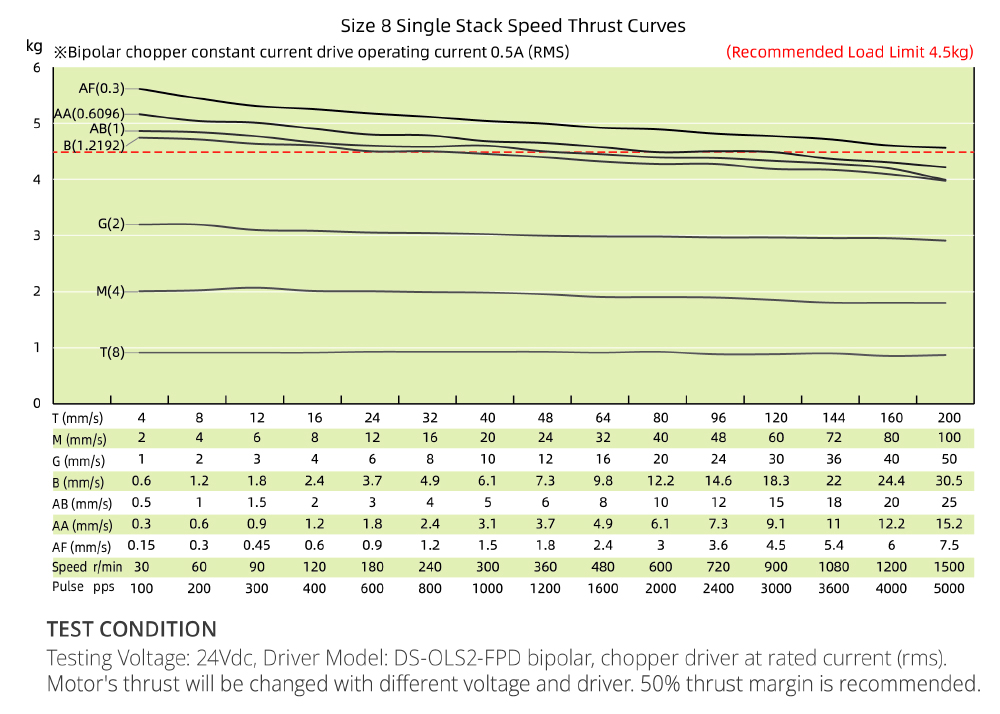

| Parameter | Unit | 8E2105 |
|---|---|---|
| Rated voltage | V | 2.5 |
| Current | A | 0.5 |
| Winding resistance | Ω | 5.1 |
| Inductance | mH | 1.5 |
| Motor length | mm | 27.2 |
| Lead Wire No. | 4 |
| Screw Dia. | Lead | Lead Code | Travel Per Step @ 1.8° |
|---|---|---|---|
| 3.5 mm | 0.3 mm | AF | 0.0015 mm |
| 3.5 mm | 0.6096 mm | AA | 0.003048 mm |
| 3.5 mm | 1 mm | AB | 0.005 mm |
| 3.5 mm | 1.2192 mm | B | 0.006096 mm |
| 3.5 mm | 2 mm | G | 0.01 mm |
| 3.5 mm | 2.4384 mm | J | 0.012192 mm |
| 3.5 mm | 4 mm | M | 0.02 mm |
| 3.5 mm | 8 mm | T | 0.04 mm |
| Mechanical Specifications | Unit | 8E2105 |
|---|---|---|
| Max dynamic force for 100km stage travel distance C100B(dyn) | N | 445 |
| Max static force in movement direction Co(stat) | N | 720 |
| Max torque around roll axis (M_roll) | Nm | 2.6 |
| Max torque around pitch axis (M_pitch) | Nm | 1.65 |
| Max torque around yaw axis (M_yaw) | Nm | 1.65 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

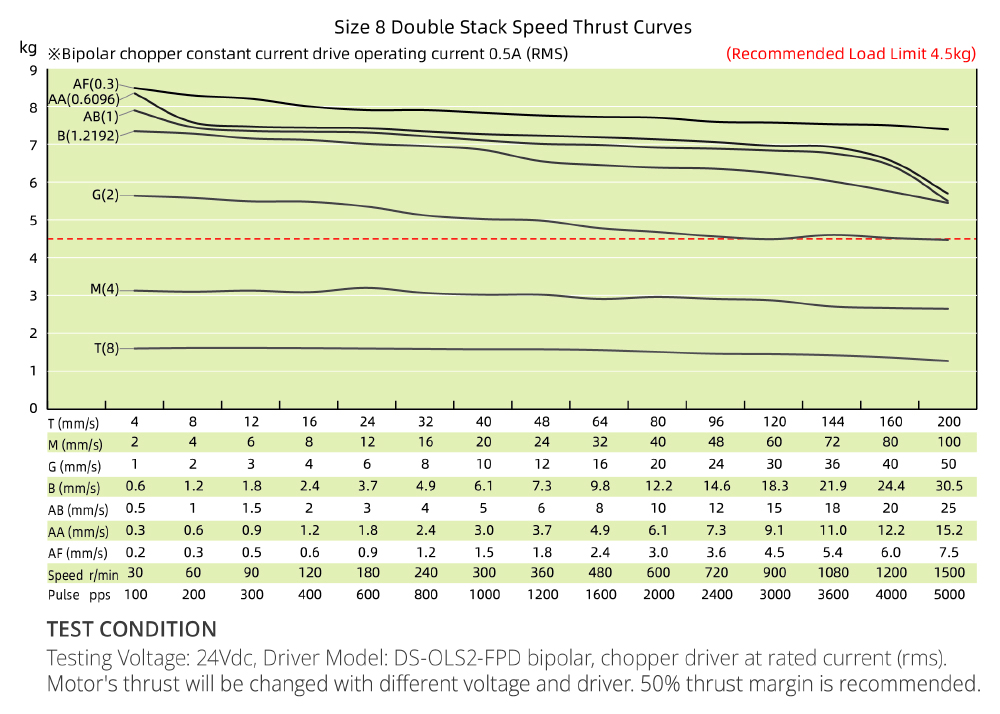

| Parameter | Unit | 8E2205 |
|---|---|---|
| Rated voltage | V | 4.4 |
| Current | A | 0.5 |
| Winding resistance | Ω | 8.8 |
| Inductance | mH | 2.7 |
| Motor length | mm | 38.1 |
| Lead Wire No. | 4 |
| Screw Dia. | Lead | Lead Code | Travel Per Step @ 1.8° |
|---|---|---|---|
| 3.5 mm | 0.3 mm | AF | 0.0015 mm |
| 3.5 mm | 0.6096 mm | AA | 0.003048 mm |
| 3.5 mm | 1 mm | AB | 0.005 mm |
| 3.5 mm | 1.2192 mm | B | 0.006096 mm |
| 3.5 mm | 2 mm | G | 0.01 mm |
| 3.5 mm | 2.4384 mm | J | 0.012192 mm |
| 3.5 mm | 4 mm | M | 0.02 mm |
| 3.5 mm | 8 mm | T | 0.04 mm |
| Mechanical Specifications | Unit | 8E2205 |
|---|---|---|
| Max dynamic force for 100km stage travel distance C100B(dyn) | N | 445 |
| Max static force in movement direction Co(stat) | N | 720 |
| Max torque around roll axis (M_roll) | Nm | 2.6 |
| Max torque around pitch axis (M_pitch) | Nm | 1.65 |
| Max torque around yaw axis (M_yaw) | Nm | 1.65 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
