BS5016NFL-29-48.0
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

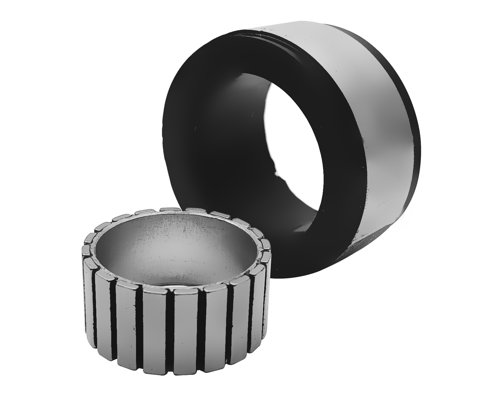

50mm Sensorless BLDC Inner Rotor Motors
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
50mm Sensorless BLDC Inner Rotor Motors
Parameter | Unit | BS5016NFL-29-48.0 |
---|---|---|
Voltage | V | 48.0 |
Nominal current | A | 3.1 |
Max.output power | W | 227 |
Max.efficiency | % | 85 |
Back-EMF constant | mV/rpm | 1.65 |
Torque constant | Nm/A | 0.16 |
KV Value | rpm/V | 60 |
Speed/torque gradient | rpm/Nm | 957 |
Rotor inertia | gcm² | 61 |
Weight | g | 138 |
Thermal resistance winding-ambient | K/W | 3.3 |
Line resistance | Ω | 2.5 |
Thermal time constant winding | s | 120 |
Insulation class | B | |
Operating temperature range | °C | -40~+100 |
Thermal class of winding | °C | 180 |
Circuit type | Y | |
Puncture | 500VAC / 5mA /1s | |
Insulation Resistance | 100MΩ / 500VDC | |
No. of pole pairs | 10 | |
No. of slots | 18 | |
Commutation structure | sensorless | |
Line inductance | mH | 1.3 |
No-load speed | rpm | 2880 |
No-load current | A | 0.2 |
Stall torque | N.m | 3 |
Stall current | A | 19.2 |
Nominal torque | N.m | 0.46 |
Nominal speed | rpm | 2194 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
