BO2828N2B02-112-24.0

Name: BO2828N2B02-112-24.0 - KOCO MOTION
SKU: BO2828N2B02-112-24.0

inkl. 19 % MwSt.

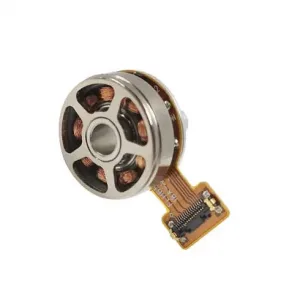

28mm BLDC outer rotor, sensorless

Artikelnummer: BO2828N2B02-112-24.0 Kategorie: Outer Rotor

Beschreibung

28mm BLDC outer rotor, sensorless

Es gibt noch keine Bewertungen.

Schreibe die erste Bewertung für „BO2828N2B02-112-24.0“

Specification	BO2828N2B02-112-24.0
Voltage	24.0 V
Terminal resistance	0.38 Ω
No-load speed	11200 rpm
No-load current	0.32 A
Stall torque	1289 mNm
Stall current	64.0 A
Nominal torque	119.9 mNm
Nominal speed	8750 rpm
Nominal current	5.9 A
Max. output power	380 W
Max. efficiency	86.3 %
Back-EMF constant	2.1 mV/rpm
Torque constant	20.2 mNm/A
KV Value	470 rpm/V
Speed/torque gradient	8.7 rpm/mNm
Rotor inertia	35 g·cm²
Weight	61 g
Thermal resistance housing-ambient	1.6 K/W
Thermal resistance winding-housing	1.4 K/W
Thermal time constant motor	315 s
Thermal time constant winding	45 s
Operating temperature range	-40~+120 °C
Thermal class of winding	180 °C
Axial play	0.012 mm
Radial play	0.008 mm
Axial load dynamic	8 N
Axial load static	85 N
Radial load at 3 mm from mounting face	26 N
No. of pole pairs	7
Bearings	2 ball bearings
Protection class	20 IP
Commutation	Sensorless

lead wires length shaft length special coils gear heads encoder driver

UAV aeromodelling
