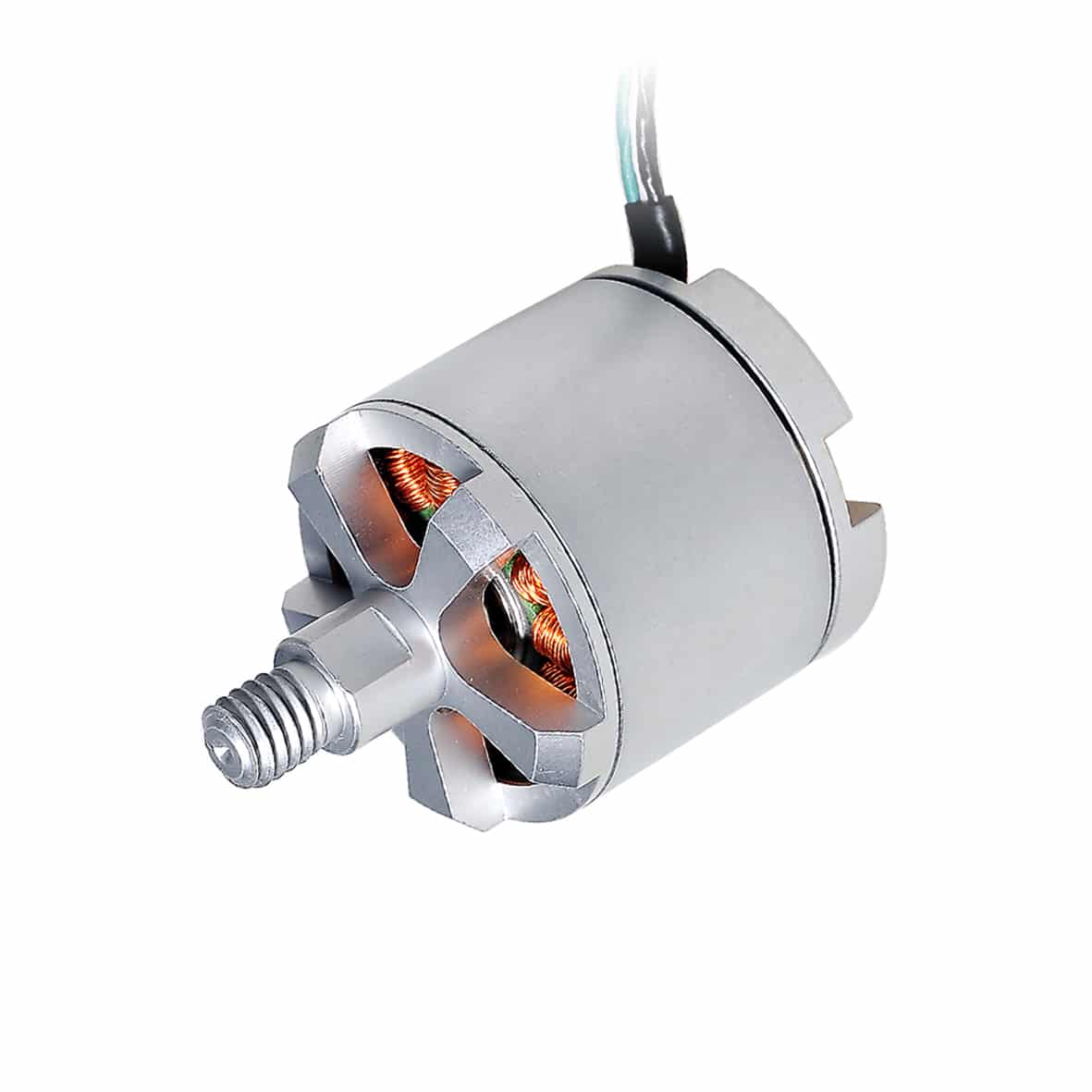

Name: BO2828N2B - KOCO MOTION
SKU: BO2828N2B

Specification	BO2828N2B01-112-12.0	BO2828N2B02-112-24.0	BO2828N2B03-112-36.0
Voltage	12.0 V	24.0 V	36.0 V
Terminal resistance	0.09 Ω	0.38 Ω	0.81 Ω
No-load speed	11200 rpm	11200 rpm	11200 rpm
No-load current	0.63 A	0.32 A	0.20 A
Stall torque	1301 mNm	1289 mNm	1357 mNm
Stall current	127.7 A	64.0 A	44.3 A
Nominal torque	122.7 mNm	119.9 mNm	156.8 mNm
Nominal speed	7320 rpm	8750 rpm	8540 rpm
Nominal current	11.3 A	5.9 A	4.8 A
Max. output power	379 W	380 W	395 W
Max. efficiency	86.4 %	86.3 %	87.1 %
Back-EMF constant	1.1 mV/rpm	2.1 mV/rpm	3.2 mV/rpm
Torque constant	10.2 mNm/A	20.2 mNm/A	30.8 mNm/A
KV Value	928 rpm/V	470 rpm/V	309 rpm/V
Speed/torque gradient	8.6 rpm/mNm	8.7 rpm/mNm	8.2 rpm/mNm
Rotor inertia	35 g·cm²	35 g·cm²	35 g·cm²
Weight	61 g	61 g	61 g
Thermal resistance housing-ambient	1.6 K/W	1.6 K/W	1.6 K/W
Thermal resistance winding-housing	1.4 K/W	1.4 K/W	1.4 K/W
Thermal time constant motor	315 s	315 s	315 s
Thermal time constant winding	45 s	45 s	45 s
Operating temperature range	-40~+120	-40~+120	-40~+120
Thermal class of winding	180 °C	180 °C	180 °C
Axial play	0.012 mm	0.012 mm	0.012 mm
Radial play	0.008 mm	0.008 mm	0.008 mm
Axial load dynamic	8 N	8 N	8 N
Axial load static	85 N	85 N	85 N
Radial load at 3 mm from mounting face	26 N	26 N	26 N
No. of pole pairs	7	7	7
Bearings	2 ball bearings	2 ball bearings	2 ball bearings
Protection class	20 IP	20 IP	20 IP
Commutation	Sensorless	Sensorless	Sensorless

Options

lead wires length shaft length special coils gear heads encoder driver

Anwendungen

UAV aeromodelling

BO2828N2B

2D drawing BO2828N2B (png, 9.16K)
