Beschreibung

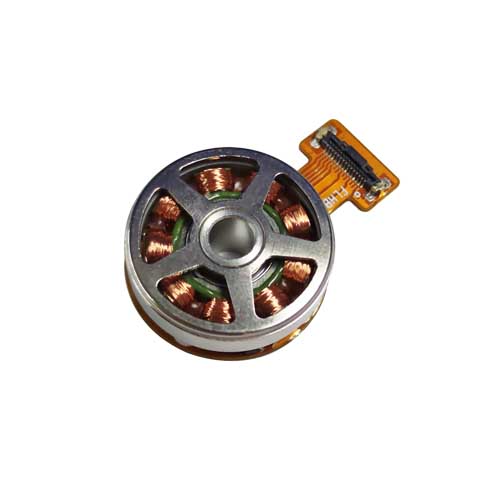

20mm BLDC outer rotor, Hall sensor
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. MwSt.
20mm BLDC outer rotor, Hall sensor
20mm BLDC outer rotor, Hall sensor
Characteristics | BO2008NBH2B01-73-11.4 |
---|---|
Voltage | 11.4 V |
Terminal resistance | 26.0 Ω |
Terminal inductance | 2.30 mH |
No-load speed | 7200 rpm |
No-load current | 0.05 A |
Stall torque | 5.2 mNm |
Stall current | 0.4 A |
Nominal torque | 2.8 mNm |
Nominal speed | 1080 rpm |
Nominal current | 0.3 A |
Max. output power | 1.0 W |
Max. efficiency | 43.8 % |
Back-EMF constant | 1.4 mV/rpm |
Torque constant | 13.4 mNm/A |
Speed/torque gradient | 1384 rpm/mNm |
Rotor inertia | 2.0 gcm² |
Weight | 6.8 g |
Thermal resistance housing-ambient | 28.9 K/W |
Thermal resistance winding-housing | 8.6 K/W |
Thermal time constant motor | 135 s |
Thermal time constant winding | 165 s |
Operating temperature range | -40~+120 |
Thermal class of winding | 155 °C |
Axial play | 0.012 mm |
Radial play | 0.008 mm |
Axial load dynamic | 1.8 N |
Axial load static | 45 N |
Radial load at 3 mm from mounting face | 9 N |
No. of pole pairs | 4 |
Bearings | 2 ball bearings |
Protection class | 20 IP |
Commutation | Sensorless |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
