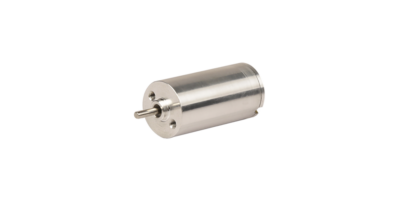

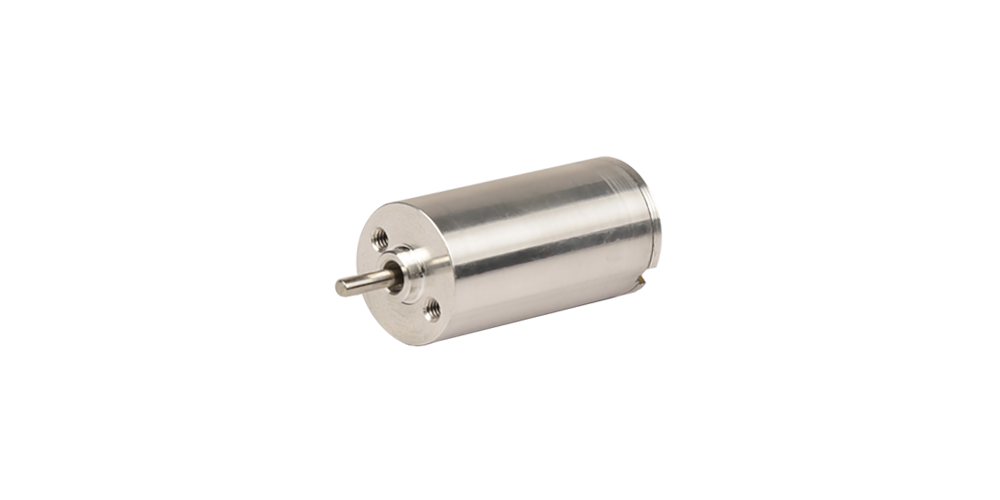

| Parameter | Unit | 28ZWC58L-1 |
|---|---|---|
| Pole pair | 2 | |
| Winding connection method | Star shape | |
| Phase resistance | Ohm | 0.676 |
| Phase inductance | mH | 0.2 |
| Insulation class | B | |
| Duty type | S2 | |
| Feedback method | Hall Sensors | |
| Commutation angle | 120° | |
| Insulation strength (Withstand voltage) | 500VAC/1KHz/1mA/1s | |
| Insulation resistance | 100 MΩ/500VDC | |
| Weight | g | 300 |
| Rated voltage | V | 24 |
| Rated power | W | 52.4 |
| Rated torque | Nm | 0.05 |
| Rated speed | RPM | 10000 |
| Rated current | A | 3 |
| No load speed | RPM | 12000 |
| No load current | A | 0.5 |
| Motor efficiency | % | 77 |
| Static torque | mNm | 12.8 |
| Noise (Ambient noise 20db, test distance 1M) | dB | ＜50 |
| Enclosure – Ambient Thermal Resistance | K/W | 0.38 |
| Ambient temperature | °C | 25 |
| Maximum winding temperature | °C | 75 |
| Torque constant | N·m/A | 0.017 |
| Back-EMF Constant /Effective Value | V/Krpm | 1.78 |
| Peak torque | Nm | 0.15 |
| Peak current | A | 9 |
| Inertia Moment | kg·cm² | 0.011 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
Torque Performance Curves
