B4040NH2B

Name: B4040NH2B - KOCO MOTION
SKU: B4040NH2B

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. MwSt.

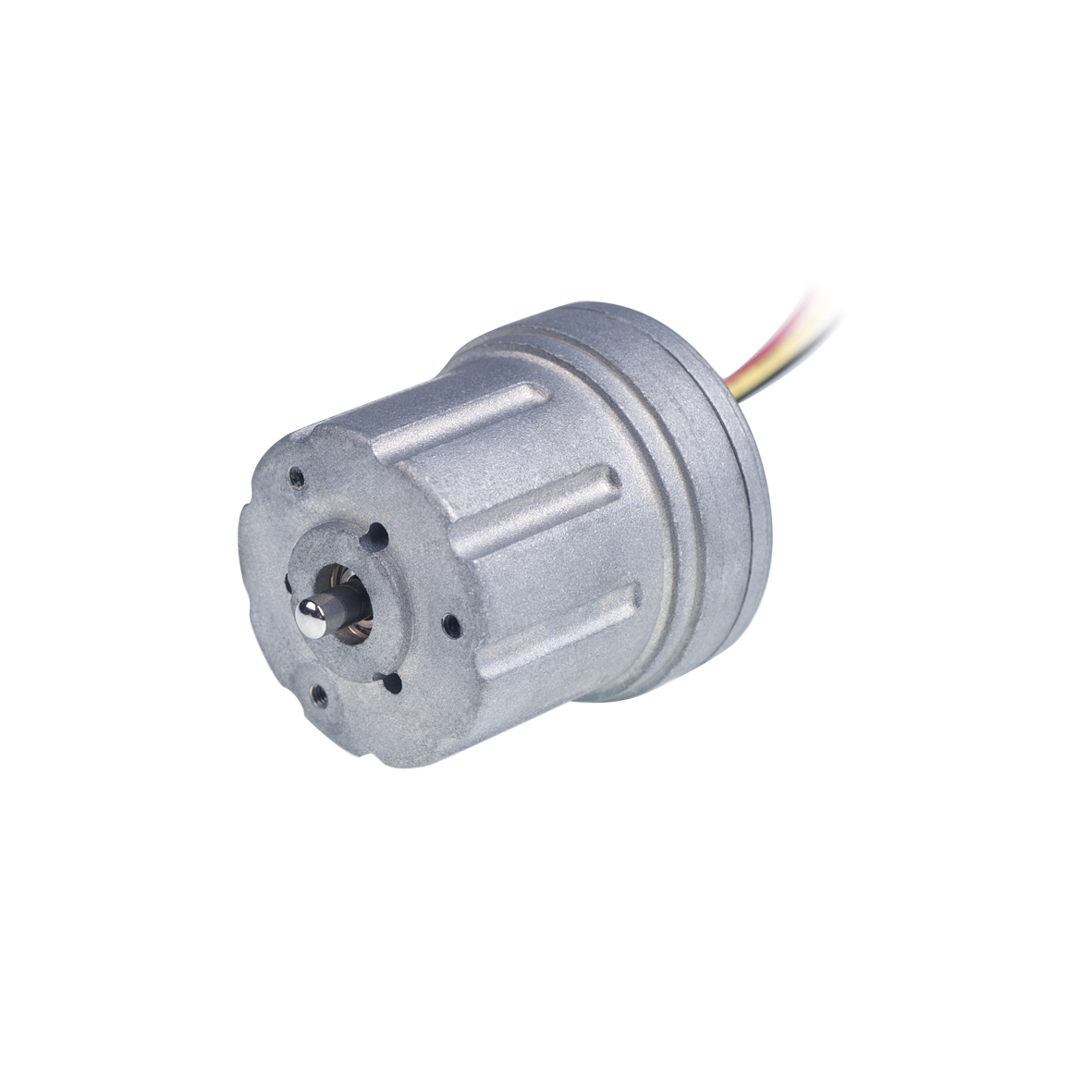

40mm BLDC, inner rotor, slotless, Hall sensor

Artikelnummer: B4040NH2B Kategorie: Inner Rotor

Beschreibung

Beschreibung

40mm BLDC, inner rotor, slotless, Hall sensor

Produktvergleich

Characteristics	B4040NH2B01-420-24.0	B4040NH2B03-300-24.0
Voltage	24.0 V	24.0 V
Terminal resistance	2 Ω	2.8 Ω
No-load speed	42000 rpm	30000 rpm
No-load current	0.2 A	0.2 A
Stall torque	63.3 mNm	62.5 mNm
Stall current	12 A	8.6 A
Nominal torque	5 mNm	5 mNm
Nominal speed	38000 rpm	27000 rpm
Nominal current	1.2 A	0.9 A
Max. output power	69.7 W	49.1 W
Max. efficiency	75.8 %	71.7 %
Back-EMF constant	0.56 mV/rpm	0.78 mV/rpm
Torque constant	5.4 mNm/A	7.5 mNm/A
KV Value	1750 rpm/V	1250 rpm/V
Speed/torque gradient	663.3 rpm/mNm	480.3 rpm/mNm
Rotor inertia	20 gcm²	20 gcm²
Weight	200 g	200 g
Thermal resistance housing-ambient	9 K/W	9 K/W
Thermal resistance winding-housing	2.4 K/W	2.4 K/W
Thermal time constant motor	1400 s	1400 s
Thermal time constant winding	20 s	20 s
Operating temperature range	-40~+120	-40~+120
Thermal class of winding	155 °C	155 °C
Axial play	2.3 mm	2.3 mm
Radial play	0.012 mm	0.012 mm
Axial load dynamic	8 N	8 N
Axial load static	110 N	110 N
Radial load at 3 mm from mounting face	31 N	31 N
No. of pole pairs	2	2
Bearings	2 ball bearings	2 ball bearings
Commutation	Hall Sensor	Hall Sensor
Protection class	20 IP	20 IP

Options

lead wires length shaft length special coils gear heads encoder driver

Anwendungen

medical equipment electrical tools

B4040NH2B

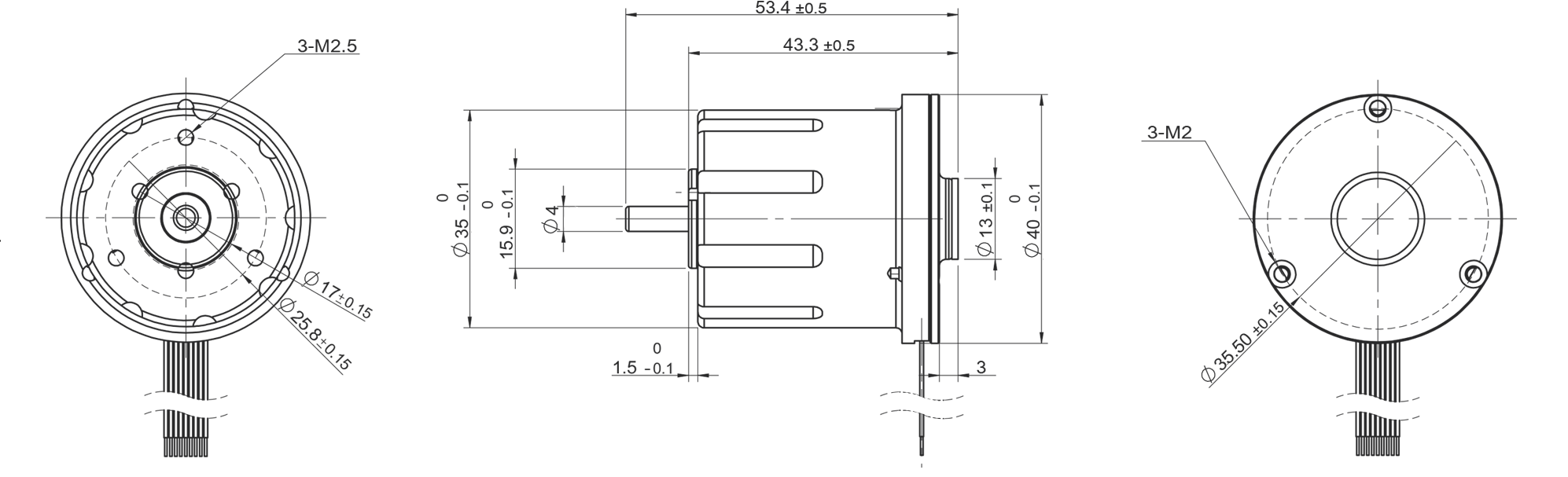

2D drawing B4040NH2B (png, 199.38K)

2D-drawing-B4040NH2B (png, 199.38K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	B4040NH2B01-420-24.0
Voltage	24.0 V
Terminal resistance	2 Ω
No-load speed	42000 rpm
No-load current	0.2 A
Stall torque	63.3 mNm
Stall current	12 A
Nominal torque	5 mNm
Nominal speed	38000 rpm
Nominal current	1.2 A
Max. output power	69.7 W
Max. efficiency	75.8 %
Back-EMF constant	0.56 mV/rpm
Torque constant	5.4 mNm/A
KV Value	1750 rpm/V
Speed/torque gradient	663.3 rpm/mNm
Rotor inertia	20 gcm²
Weight	200 g
Thermal resistance housing-ambient	9 K/W
Thermal resistance winding-housing	2.4 K/W
Thermal time constant motor	1400 s
Thermal time constant winding	20 s
Operating temperature range	-40~+120 °C
Thermal class of winding	155 °C
Axial play	2.3 mm
Radial play	0.012 mm
Axial load dynamic	8 N
Axial load static	110 N
Radial load at 3 mm from mounting face	31 N
No. of pole pairs	2
Bearings	2 ball bearings
Commutation	Hall Sensor
Protection class	20 IP

Options

lead wires length shaft length special coils gear heads encoder driver

Anwendungen

medical equipment electrical tools

B4040NH2B

2D drawing B4040NH2B (png, 199.38K)

2D-drawing-B4040NH2B (png, 199.38K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Specification	B4040NH2B03-300-24.0
Voltage	24.0 V
Terminal resistance	2.8 Ω
No-load speed	30000 rpm
No-load current	0.2 A
Stall torque	62.5 mNm
Stall current	8.6 A
Nominal torque	5 mNm
Nominal speed	27000 rpm
Nominal current	0.9 A
Max. output power	49.1 W
Max. efficiency	71.7 %
Back-EMF constant	0.78 mV/rpm
Torque constant	7.5 mNm/A
KV Value	1250 rpm/V
Speed/torque gradient	480.3 rpm/mNm
Rotor inertia	20 gcm²
Weight	200 g
Thermal resistance housing-ambient	9 K/W
Thermal resistance winding-housing	2.4 K/W
Thermal time constant motor	1400 s
Thermal time constant winding	20 s
Operating temperature range	-40~+120 °C
Thermal class of winding	155 °C
Axial play	2.3 mm
Radial play	0.012 mm
Axial load dynamic	8 N
Axial load static	110 N
Radial load at 3 mm from mounting face	31 N
No. of pole pairs	2
Bearings	2 ball bearings
Commutation	Hall Sensor
Protection class	20 IP

Options

lead wires length shaft length special coils gear heads encoder driver

Anwendungen

medical equipment electrical tools

B4040NH2B

2D drawing B4040NH2B (png, 199.38K)

2D-drawing-B4040NH2B (png, 199.38K)

Nehmen Sie Kontakt auf

+49 7720 995858-0 info@kocomotion.de

Weiterlesen	B4040NH2B01-420-24.0	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
Weiterlesen	B4040NH2B03-300-24.0	Loggen Sie sich ein, um Preise für dieses Produkt zu sehen inkl. 19 % MwSt.
