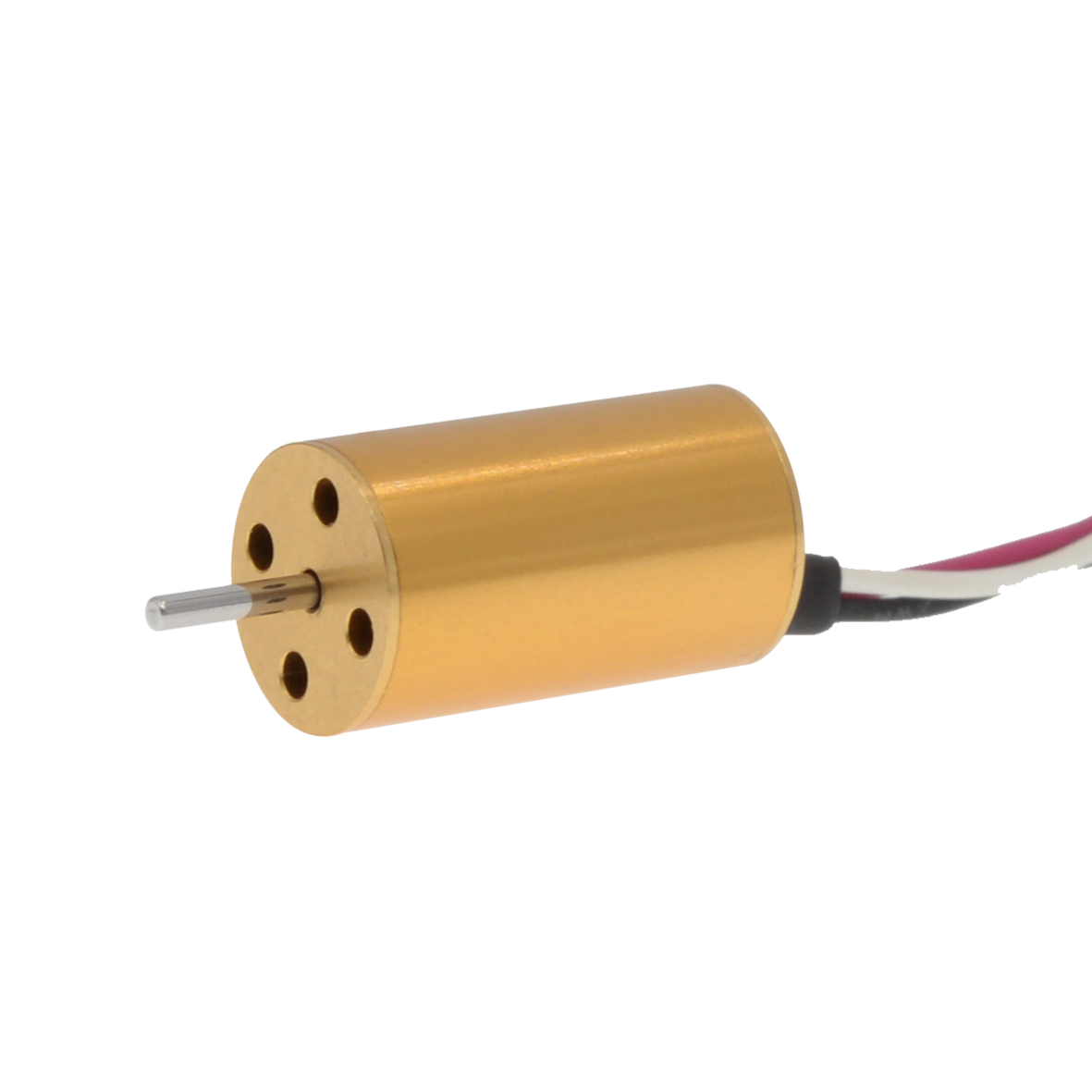

10mm BLDC, inner rotor, slotless, sensorless
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. 19 % MwSt.
10mm BLDC, inner rotor, slotless, sensorless
10mm BLDC, inner rotor, slotless, sensorless
Specification | B1020N05-382-7.4 |
---|---|
Voltage | 7.4 V |
Terminal resistance | 1.4 Ω |
No-load speed | 38200 rpm |
No-load current | 0.24 A |
Stall torque | 8.9 mNm |
Stall current | 5.3 A |
Nominal torque | 2.6 mNm |
Nominal speed | 27000 rpm |
Nominal current | 1.7 A |
Max. output power | 9.0 W |
Max. efficiency | 61 % |
Back-EMF constant | 0.18 mV/rpm |
Torque constant | 1.76 mNm/A |
KV Value | 5160 rpm/V |
Speed/torque gradient | 4290 rpm/mNm |
Rotor inertia | 0.06 gcm² |
Weight | 6.8 g |
Thermal resistance housing-ambient | 44 K/W |
Thermal resistance winding-housing | 10 K/W |
Thermal time constant motor | 124 s |
Thermal time constant winding | 119 s |
Operating temperature range | -20~+100 °C |
Thermal class of winding | 155 °C |
Axial play | 0.012 mm |
Radial play | 0.008 mm |
Axial load dynamic | 1 N |
Axial load static | 25 N |
Radial load at 3 mm from mounting face | 6.3 N |
No. of pole pairs | 1 |
Bearings | 2 sleeve bearings |
Protection class | 20 IP |
Commutation | Sensorless |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
