Beschreibung

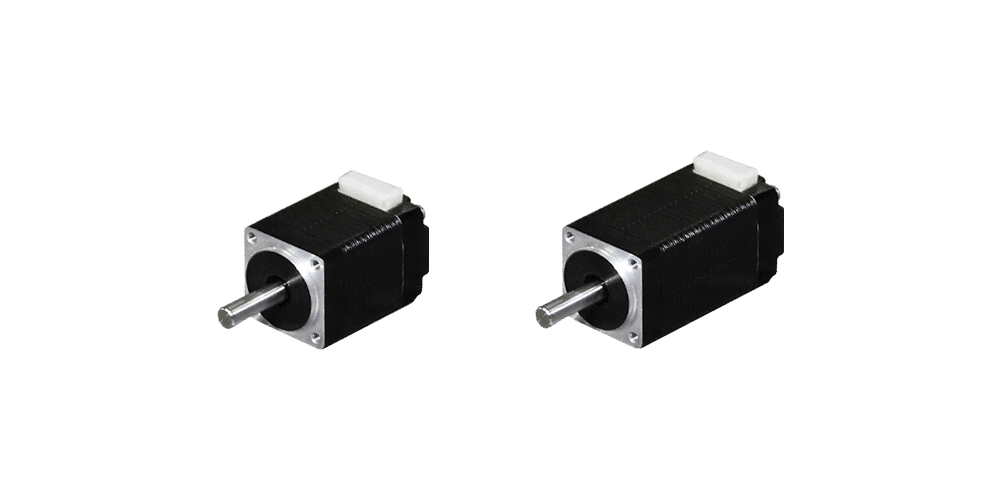

The size 8 [20mm] Hybrid Rotary Stepper Motor has Max. 0.02N·m of holding torque.

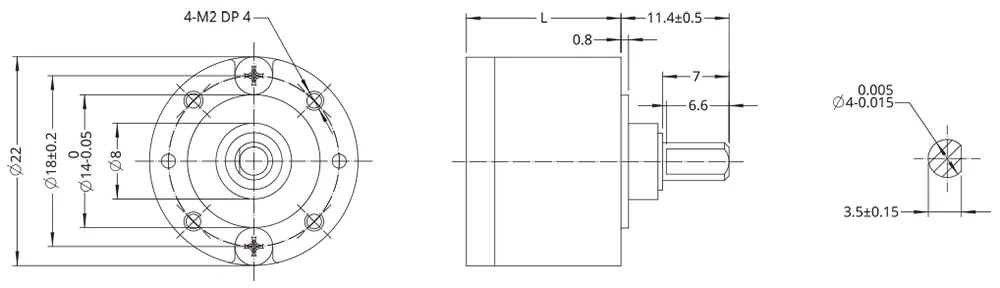

Encoders and 22mm frame planetary gearbox solutions are available.
For special windings or customization, Please contact KOCO for further information.
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. 19 % MwSt.
The size 8 [20mm] Hybrid Rotary Stepper Motor has Max. 0.02N·m of holding torque.
Encoders and 22mm frame planetary gearbox solutions are available.
For special windings or customization, Please contact KOCO for further information.
The size 8 [20mm] Hybrid Rotary Stepper Motor has Max. 0.02N·m of holding torque.
Encoders and 22mm frame planetary gearbox solutions are available.
For special windings or customization, Please contact KOCO for further information.

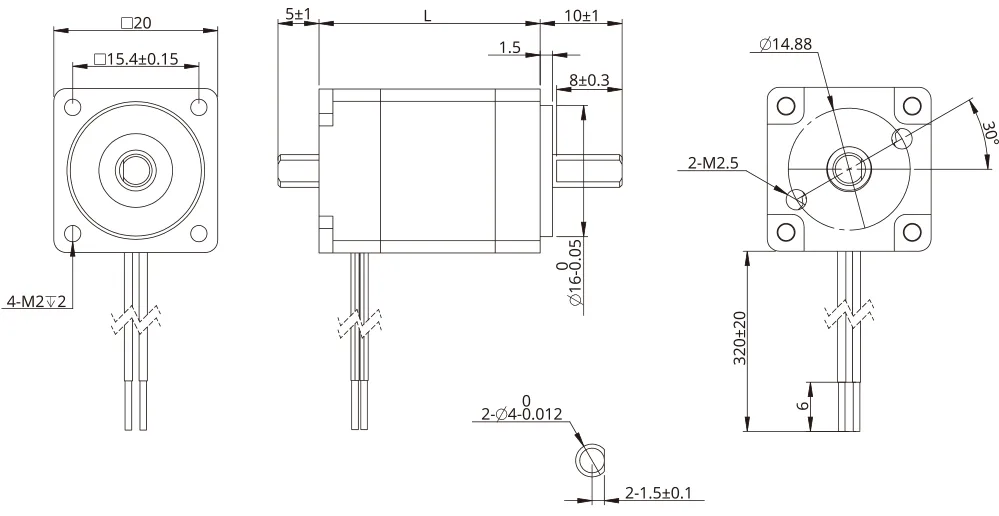

Specification | 8H2028 |
---|---|
Current | 0.5 A |
Resistance | 5.1 Ω |
Inductance | 1.5 mH |
Holding Torque | 0.012 N.m |
Rotor Inertia | 2.7 g·cm² |
Length | 27.2 mm |
Mass | 60 g |
Size | 8 Nema |
Flange size | 20 mm |
Family Specification | 8H2028 |
---|---|
Accuracy step angle | 1.8°±5% |
Accuracy Resistance | ±10% / 20 C |
Accuracy Inductance | ±20% / 1KHz |
Insulation class | B |
Duty type | S1 |
Dielectrical strength | 500 VAC / 1 KHz / 1 mA / 1 s |
Insulation resistance | 100 MΩ / 500 VDC |
Permissible radial load(5MM distance from mounting surface) | 15N |
Permissible radial load(10MM distance from mounting surface) | 12N |
Permissible radial load(15MM distance from mounting surface) | 8N |
Permissible radial load(20MM distance from mounting surface) | 6N |
End bell | Aluminum alloy |
Bearing | Deep groove ball bearing |
Magnet | Sintered NdFeB |
Shaft | Stainless steel |
Wiring | UL 3265, 28 AWG |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
