Description
The size 8 [20mm] Hybrid Rotary Stepper Motor has Max. 0.02N·m of holding torque.

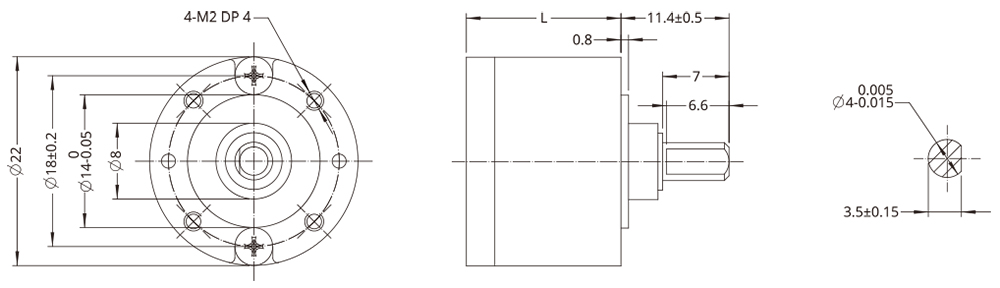

Encoders and 22mm frame planetary gearbox solutions are available.
For special windings or customization, Please contact KOCO for further information.
incl. 19% VAT
The size 8 [20mm] Hybrid Rotary Stepper Motor has Max. 0.02N·m of holding torque.
Encoders and 22mm frame planetary gearbox solutions are available.
For special windings or customization, Please contact KOCO for further information.
The size 8 [20mm] Hybrid Rotary Stepper Motor has Max. 0.02N·m of holding torque.
Encoders and 22mm frame planetary gearbox solutions are available.
For special windings or customization, Please contact KOCO for further information.
Specification | 8H2028 |
---|---|
Current | 0.5 A |
Resistance | 5.1 Ω |
Inductance | 1.5 mH |
Holding Torque | 0.012 N.m |
Rotor Inertia | 2.7 g·cm² |
Length | 27.2 mm |
Mass | 60 g |
