Beschreibung

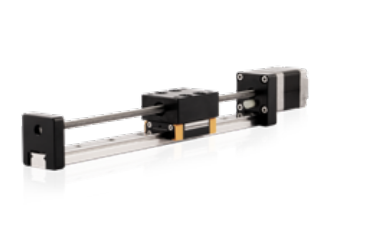

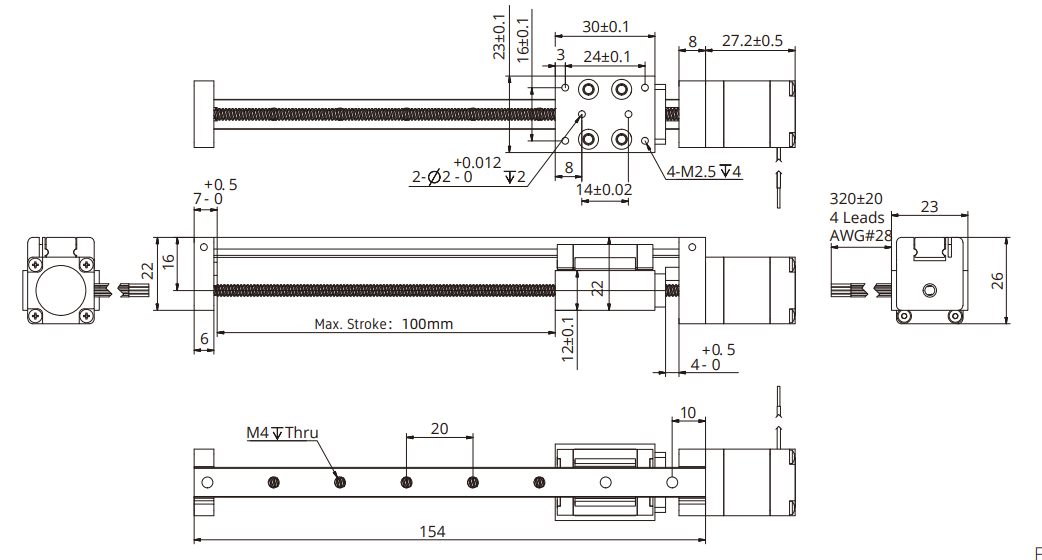

DSM – Size 20mm is a compact linear module built on KOCO platform products, combining a high-precision lead screw linear actuator with a self-developed simple linear module. The series is designed as a compact, reliable linear motion solution and offers good precision with a wide choice of stroke and lead-based customization options. It is intended for applications that need integrated linear positioning in a small 20 mm format.
Key technical strengths include high load capability and broad lead selection. Mechanical specifications for the family include max dynamic force for 100 km stage travel distance C100B(dyn) of 1379 N, max static force in the movement direction Co(stat) of 1820 N, max roll torque of 8.288 Nm, and max pitch and yaw torque of 5.733 Nm each. Available lead screw options cover leads from 0.3 mm to 8 mm, with travel per step at 1.8° from 0.0015 mm to 0.04 mm, supporting both fine positioning and faster linear travel.
- Compact 20 mm linear module with reliable structure
- High-precision lead screw drive with travel per step down to 0.0015 mm
- Lead options: 0.3, 0.6096, 1, 1.2192, 2, 2.4384, 4, and 8 mm
- High force capacity up to 1379 N dynamic and 1820 N static
- Two 4-wire motor versions: article 8E2105 at 2.5 V, 0.5 A, 27.2 mm motor length; article 8E2205 at 4.4 V, 0.5 A, 38.1 mm motor length
The DSM 20 mm series suits compact linear motion tasks where precision, load handling, and configurable travel characteristics are important. Its combination of selectable screw leads, defined step travel, and solid force and torque ratings makes it suitable for integrated customized linear solutions requiring controlled movement in the motion direction as well as stability around roll, pitch, and yaw axes.
