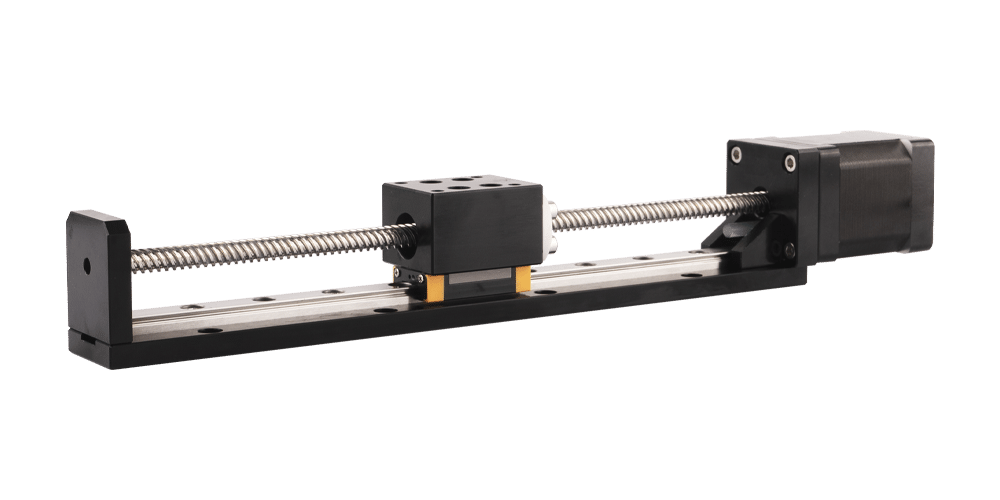

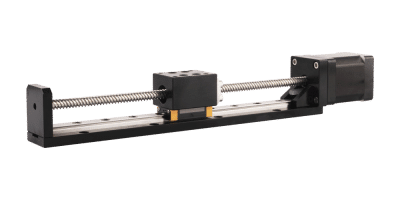

Based on KOCO platform products, high precision of lead screw linear actuator and self-developed simple linear module, DLM 35mm series is compact and reliable structure of linear solution.
DLM 35mm Series is good precision, high diversity of optional stroke and lead based customization linear module which can provide customers with integrated customization solutions.
Based on KOCO platform products, high precision of lead screw linear actuator and self-developed simple linear module, DLM 35mm series is compact and reliable structure of linear solution.
DLM 35mm Series is good precision, high diversity of optional stroke and lead based customization linear module which can provide customers with integrated customization solutions.
inkl. MwSt.
Produkte anzeigen
inkl. 19 % MwSt.
Weiterlesen
inkl. MwSt.
Produkte anzeigen
inkl. MwSt.
Produkte anzeigen| Specification | 14E2205 |
|---|---|
| Voltage | 12 V |
| Current | 0.5 A |
| Resistance | 24 Ω |
| Inductance | 29 mH |
| Motor Length | 45.6 mm |
| Lead Wire No. | 4 |
| Lead Screw Code | 14E2205 |
|---|---|
| AA, Screw Lead | 6.35 Screw Dia.mm |
| AB, Screw Lead | 6.35 Screw Dia.mm |
| B, Screw Lead | 6.35 Screw Dia.mm |
| D, Screw Lead | 6.35 Screw Dia.mm |
| F, Screw Lead | 6.35 Screw Dia.mm |
| J, Screw Lead | 6.35 Screw Dia.mm |
| K, Screw Lead | 6.35 Screw Dia.mm |
| L, Screw Lead | 6.35 Screw Dia.mm |
| Q, Screw Lead | 6.35 Screw Dia.mm |
| R, Screw Lead | 6.35 Screw Dia.mm |
| S, Screw Lead | 6.35 Screw Dia.mm |
| U, Screw Lead | 6.35 Screw Dia.mm |
| W, Screw Lead | 6.35 Screw Dia.mm |
| Y, Screw Lead | 6.35 Screw Dia.mm |
| Z, Screw Lead | 6.35 Screw Dia.mm |
| M, Screw Lead | 8 Screw Dia.mm |
| T, Screw Lead | 8 Screw Dia.mm |
| G, Screw Lead | 8 Screw Dia.mm |
| Mechanical Specifications | 14E2205 |
|---|---|
| C100B(dyn) | 785 N |
| Co(stat) | 1247.5 N |
| Mro | 5.85 Nm |
| Mpo | 3.2 Nm |
| Myo | 3.2 Nm |
