50ZWC25X-1
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

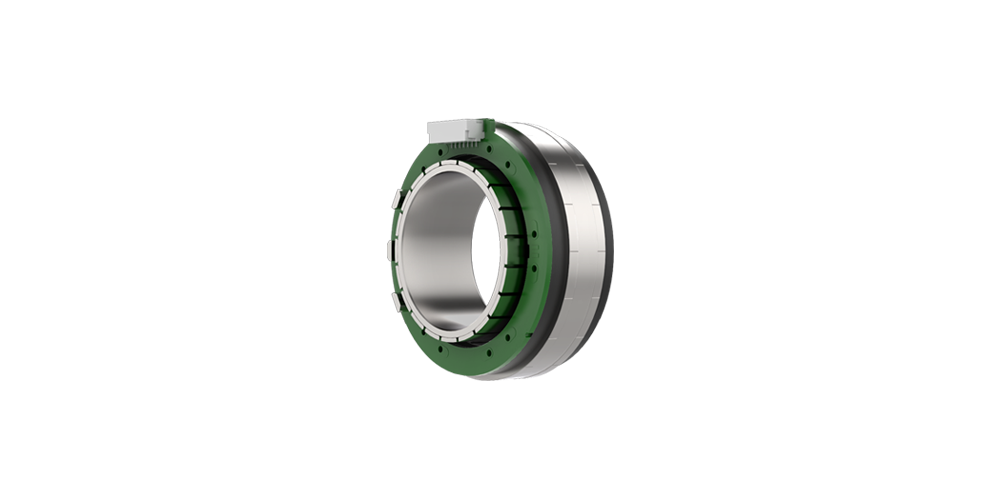

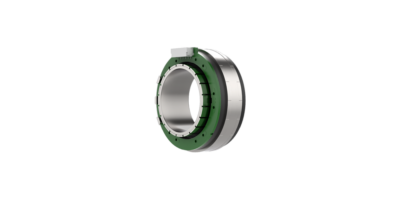

50mm Inner Rotor Frameless Torque Motor
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
50mm Inner Rotor Frameless Torque Motor
| Parameter | Unit | 50ZWC25X-1 |
|---|---|---|
| Stator outer diameter | mm | 50 +/- 0.031 |
| Feedback Method | Hall sensor | |
| Commutation Angle | 120° | |
| Insulation Strength (Dielectric Strength) | VAC/1mA/1s | 500 |
| Insulation resistance | MΩ/500VDC | 100 |
| Stator weight | g | 124 |
| Rotor weight | g | 50 |
| No-load speed | RPM | 5000 |
| No-load current | A | 1.1(REF) |
| Rated voltage | VDC | 48 |
| Rated power | W | 219 |
| Rotor Inner Bore | mm | 30 + 0.033 |
| Rated torque | N·m | 0.51 |
| Rated speed | RPM | 4100 |
| Rated current | A | 5.65 |
| Torque Constant | Nm/A | 0.092 |
| Back-EMF constant (RMS) | Vrms/Krpm | 6.8 |
| Peak Torque | N·m | 1.5 |
| Peak current | A | 16.1 |
| Rotor inertia | g·cm² | 135 |
| Number of Slots | 18 | |
| Number of Pole Pairs | 10 | |
| Phase resistance | Ω | 0.6 |
| Phase inductance | mH | 0.45 |
| Winding Connection Type | Star shape | |
| Insulation Class | F | |
| Duty Cycle | S2 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
