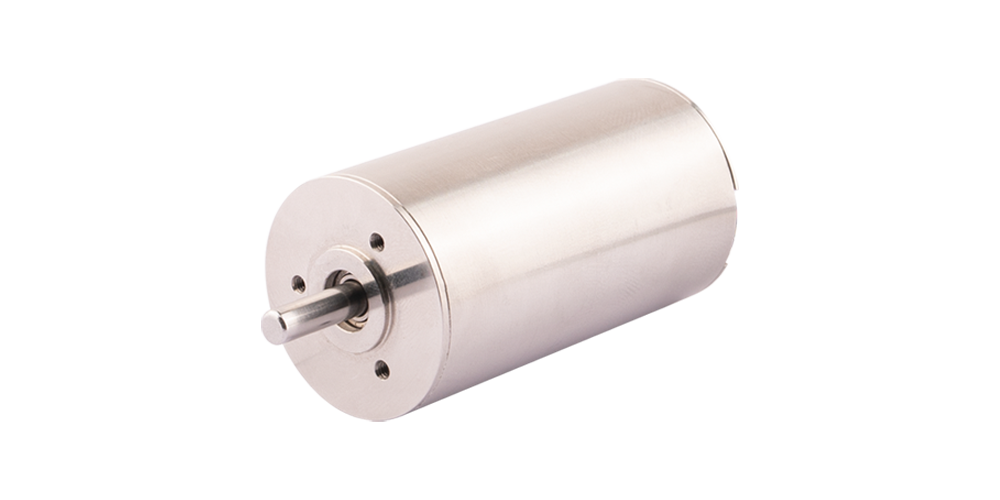

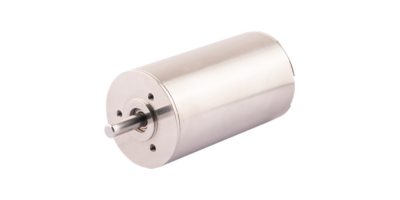

Slotless Brushless DC Motor, 28ZWWC52 can avoid the pulsation of air gap magnetic induction caused by uneven magnetic resistance in the teeth.
It can eliminate the pulse loss in the armature core and the surface loss on the main pole surface.
28ZWWC52 Slotless Brushless DC Motor has high durability, low electrical noise and high efficiency.
Maximum efficiency of motor reaches 85% and this motor is suitable for the servo system which needs quick movement and high power.
28ZWWC52 Rated Power is 35W and Peak Torque is 288.25mN.m.
