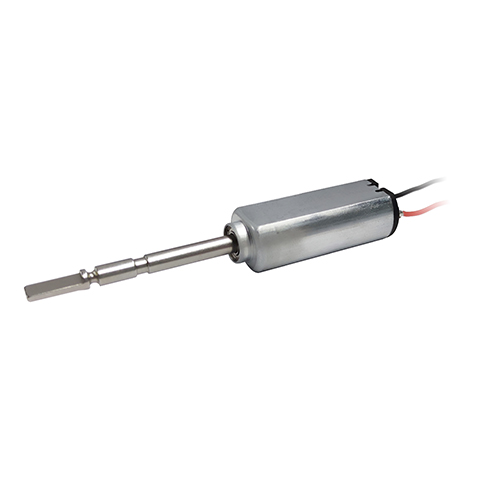

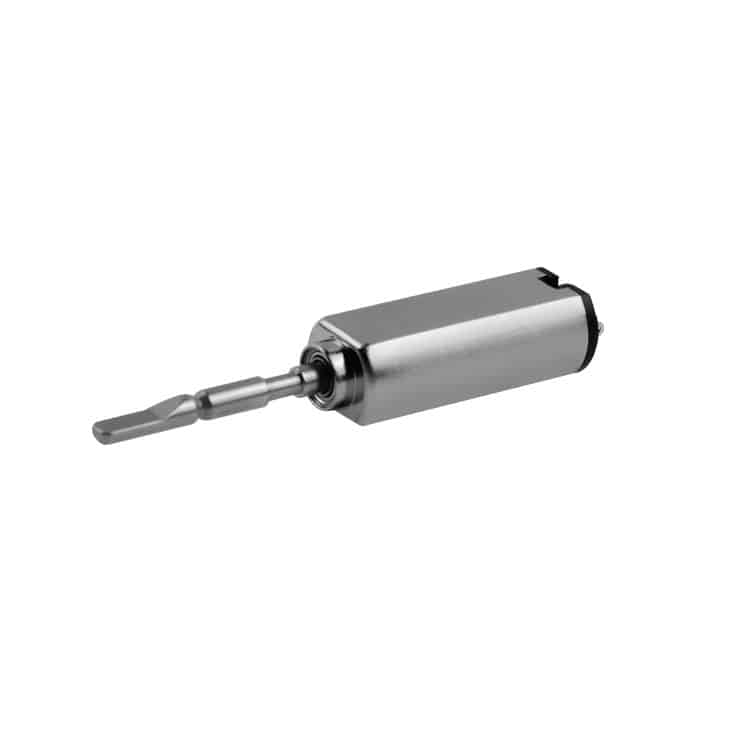

15mm DC Sonic Micro Motor

1538ZDF

The 1538ZDF series is a compact 15mm DC sonic motor designed for high-frequency, low-vibration applications such as electric toothbrushes, health care devices, and cleaning equipment. Delivering precise vibration control (up to 40,800 times/min at no load) with robust starting torque and customizable options, this motor ensures reliable performance in demanding, compact environments. Multiple voltage configurations and design flexibility available.

Weiterlesen
Weiterlesen
Weiterlesen
Artikelnummer: 1538ZDF Kategorie:

Beschreibung

1538ZDF Series – 15mm DC Sonic Motor

  • Versatile Performance: Designed for efficiency and reliability, the 1538ZDF series offers voltage options of 2.5V and 3.7V, with resistance at 3.8Ω. The motor delivers up to 40,800 vibration cycles per minute in no-load conditions and maintains consistent output with a starting torque of up to 13 mNm.

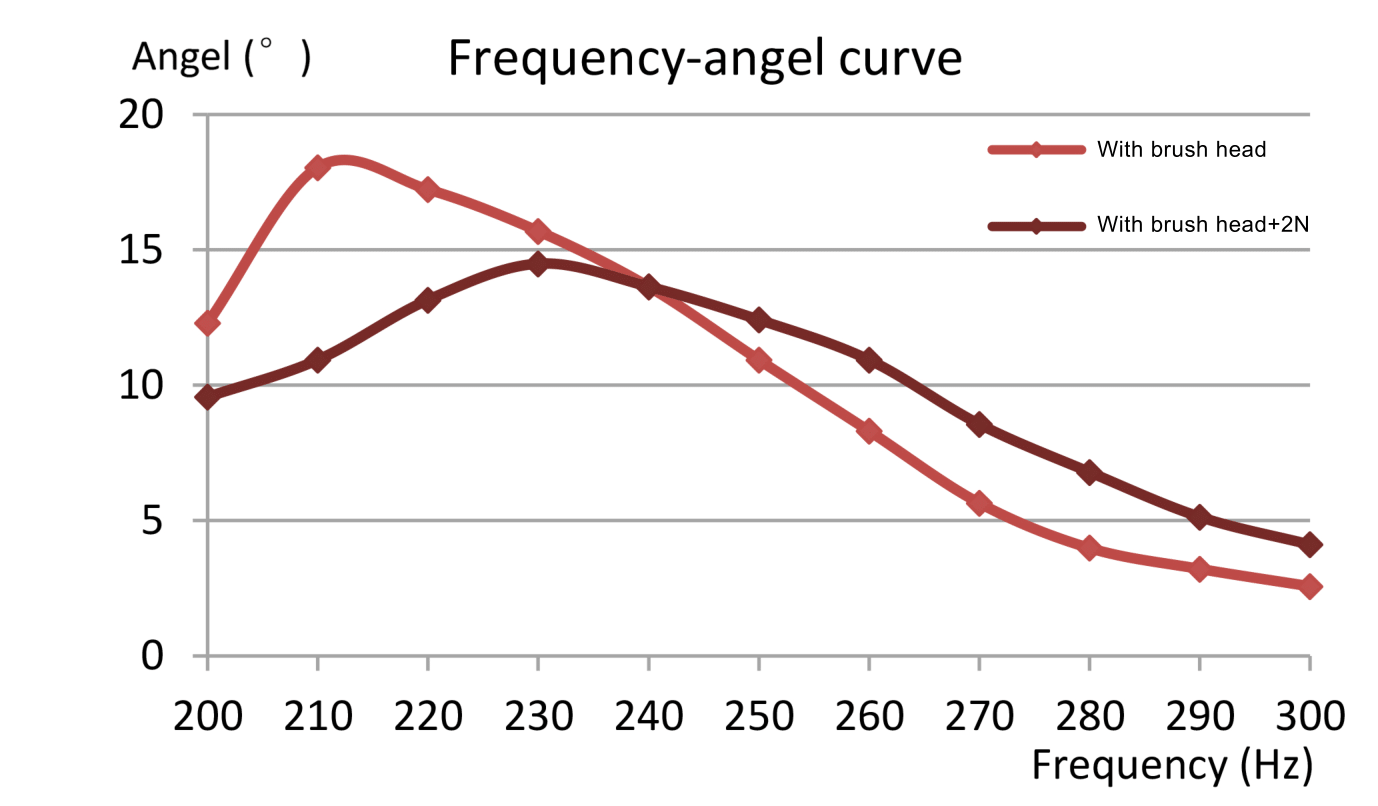

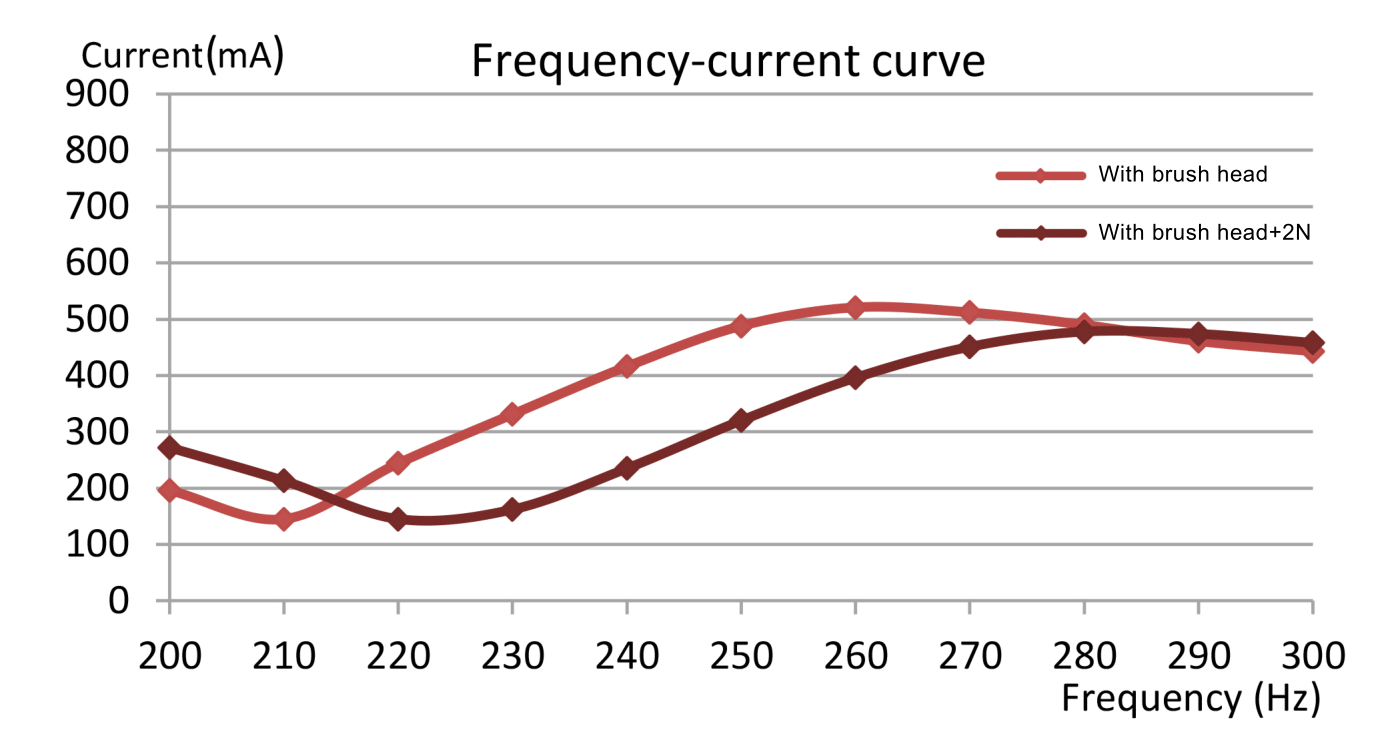

  • High Precision & Reliability: Consistent operating frequency range (200–360 Hz), low rotor inertia (1.1 gcm²), and stable current draw (starting current up to 0.9A) enable fine vibration control critical for personal care and sensitive applications.
  • Application-Focused: Ideal for electric toothbrushes, health care products, and portable cleaning equipment, where low noise, precise actuation, and compact design are essential.
  • Robust Construction: Operating temperature range of -10°C to +60°C and a compact 20g body ensure suitability for integration in portable, battery-powered designs.
  • Customizable Options: A range of configuration options including lead wire length, shaft length, and special coils support tailored solutions for specialized OEM requirements.

Competitive Advantages: The 1538ZDF motors deliver consistent high-frequency vibration under load, with low weight and energy-efficient current consumption (no-load current as low as 90mA). Flexible design options enable rapid integration into new device generations.
