1339ZDF-1-L3-2.5

Name: 1339ZDF-1-L3-2.5 - KOCO MOTION
SKU: 1339ZDF-1-L3-2.5

inkl. 19 % MwSt.

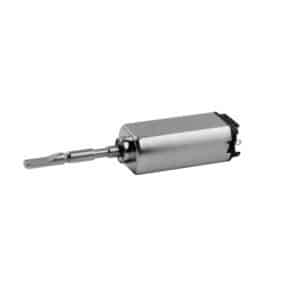

13mm DC sonic motor

Artikelnummer: 1339ZDF-1-L3-2.5 Kategorie: Sonic Motors

Beschreibung

13mm DC sonic motor

Specification	1339ZDF-1-L3-2.5
Voltage	2.5 V
Resistance	4 Ω

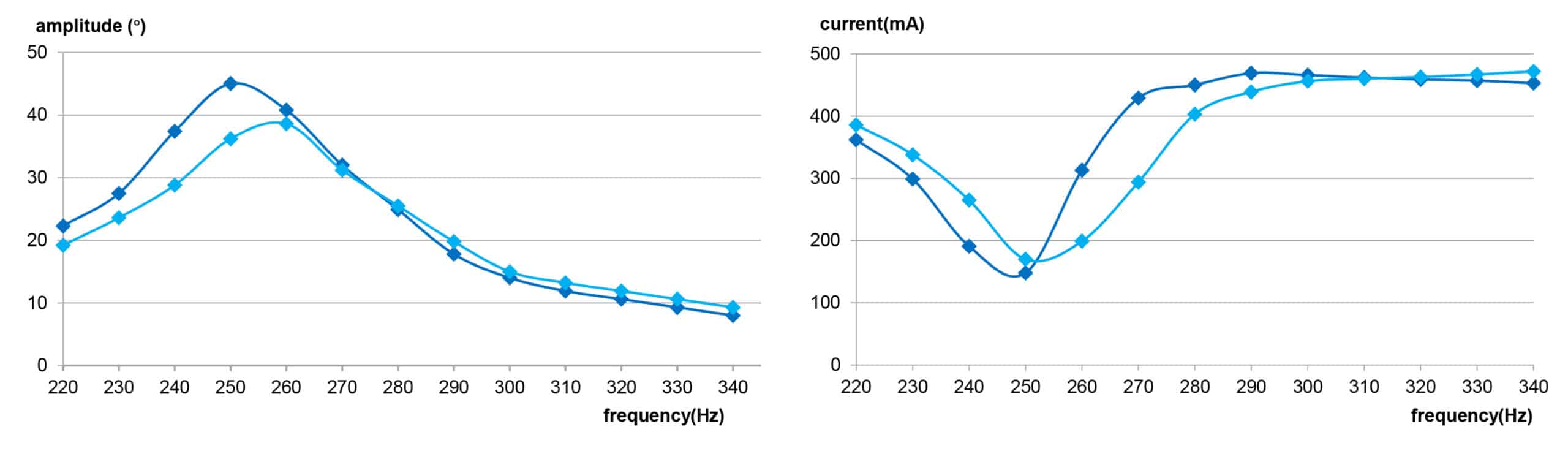

Operating frequency range	220~360 Hz
No-load vibration frequency	39600 Times / minute
No-load current	75 mA
Starting torque	8 mNm
Starting current	0.7 A
Rated load (Brush head)	3.8 g
Load vibration frequency	31200 Times / minute
Load current	330 mA
Rotor inertia	0.75 g·cm²
Weight	19 g
Operating temperature range	-10~+60 °C

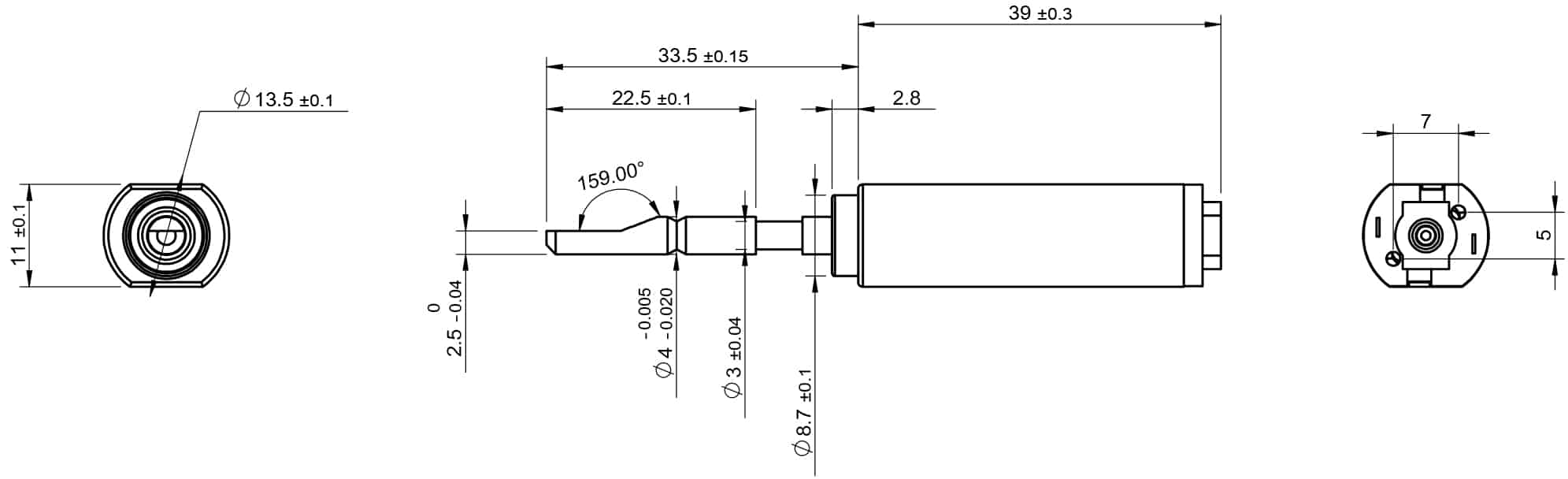

lead wires length shaft length special coils

electric toothbrushes health care products cleaning equipment
