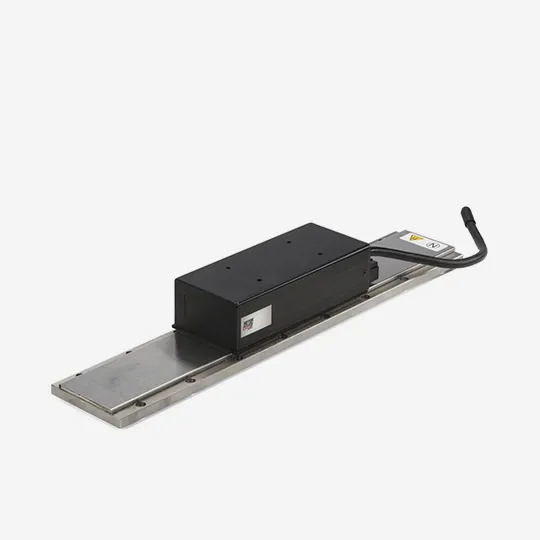

Specification
| Parameter | Unit | SKA DDL 30.40 | SKA DDL 30.80 | SKA DDL 50.75 | SKA DDL 50.150 | SKA DDL 55.275 | SKA DDL 55.550 | SKA DDL 75.660 | SKA DDL 75.990 | SKA DDL 100.1200 | SKA DDL 100.1600 | SKA DDL 125.2000 | SKA DDL 150.2400 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Peak force | N | 134.8 | 269.5 | 247 | 495 | 825 | 1650 | 1980 | 2970 | 3600 | 4800 | 6000 | 7200 |
| Magnet track width | mm | 50 | 50 | 70 | 70 | 90 | 90 | 120 | 120 | 140 | 140 | 175 | 200 |
| Magnet track height | mm | 10.8 | 10.8 | 10.8 | 10.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 | 14.8 |
| Magnet track weight | kg/m | 3.3 | 3.3 | 5 | 5 | 9.1 | 9.1 | 12.2 | 12.2 | 14.6 | 14.6 | 18 | 21.4 |
| Continuous force | N | 40 | 80 | 75 | 150 | 275 | 550 | 660 | 990 | 1200 | 1600 | 2000 | 2400 |
| Magnetic attraction | N | 260 | 520 | 430 | 860 | 1202 | 2405 | 3143 | 4663 | 5831 | 7774 | 9829 | 11790 |
| Speed | m/s | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 3 | 3 |
| Acceleration | m/s² | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Coil length | mm | 102 | 186 | 102 | 186 | 186 | 354 | 354 | 522 | 522 | 690 | 690 | 690 |
| Coil width | mm | 56 | 56 | 76 | 76 | 80 | 80 | 100 | 100 | 125 | 125 | 150 | 175 |
| Coil height | mm | 23 | 23 | 23 | 23 | 47.5 | 47.5 | 47.5 | 47.5 | 47.5 | 47.5 | 47.5 | 47.5 |
| Coil weight | kg | 0.55 | 1 | 0.8 | 1.6 | 3 | 7 | 10 | 14 | 18 | 25 | 31 | 38 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | SKA DDL 30.40 |
|---|---|---|
| Peak force | N | 134.8 |
| Magnet track width | mm | 50 |
| Magnet track height | mm | 10.8 |
| Magnet track weight | kg/m | 3.3 |
| Continuous force | N | 40 |
| Magnetic attraction | N | 260 |
| Speed | m/s | 5 |
| Acceleration | m/s² | 50 |
| Coil length | mm | 102 |
| Coil width | mm | 56 |
| Coil height | mm | 23 |
| Coil weight | kg | 0.55 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | SKA DDL 30.80 |
|---|---|---|
| Peak force | N | 269.5 |
| Magnet track width | mm | 50 |
| Magnet track height | mm | 10.8 |
| Magnet track weight | kg/m | 3.3 |
| Continuous force | N | 80 |
| Magnetic attraction | N | 520 |
| Speed | m/s | 5 |
| Acceleration | m/s² | 50 |
| Coil length | mm | 186 |
| Coil width | mm | 56 |
| Coil height | mm | 23 |
| Coil weight | kg | 1 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | SKA DDL 50.75 |
|---|---|---|
| Peak force | N | 247 |
| Magnet track width | mm | 70 |
| Magnet track height | mm | 10.8 |
| Magnet track weight | kg/m | 5 |
| Continuous force | N | 75 |
| Magnetic attraction | N | 430 |
| Speed | m/s | 5 |
| Acceleration | m/s² | 50 |
| Coil length | mm | 102 |
| Coil width | mm | 76 |
| Coil height | mm | 23 |
| Coil weight | kg | 0.8 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | SKA DDL 50.150 |
|---|---|---|
| Peak force | N | 495 |
| Magnet track width | mm | 70 |
| Magnet track height | mm | 10.8 |
| Magnet track weight | kg/m | 5 |
| Continuous force | N | 150 |
| Magnetic attraction | N | 860 |
| Speed | m/s | 5 |
| Acceleration | m/s² | 50 |
| Coil length | mm | 186 |
| Coil width | mm | 76 |
| Coil height | mm | 23 |
| Coil weight | kg | 1.6 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | SKA DDL 55.275 |
|---|---|---|
| Peak force | N | 825 |
| Magnet track width | mm | 90 |
| Magnet track height | mm | 14.8 |
| Magnet track weight | kg/m | 9.1 |
| Continuous force | N | 275 |
| Magnetic attraction | N | 1202 |
| Speed | m/s | 5 |
| Acceleration | m/s² | 50 |
| Coil length | mm | 186 |
| Coil width | mm | 80 |
| Coil height | mm | 47.5 |
| Coil weight | kg | 3 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | SKA DDL 55.550 |
|---|---|---|
| Peak force | N | 1650 |
| Magnet track width | mm | 90 |
| Magnet track height | mm | 14.8 |
| Magnet track weight | kg/m | 9.1 |
| Continuous force | N | 550 |
| Magnetic attraction | N | 2405 |
| Speed | m/s | 5 |
| Acceleration | m/s² | 50 |
| Coil length | mm | 354 |
| Coil width | mm | 80 |
| Coil height | mm | 47.5 |
| Coil weight | kg | 7 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | SKA DDL 75.660 |
|---|---|---|
| Peak force | N | 1980 |
| Magnet track width | mm | 120 |
| Magnet track height | mm | 14.8 |
| Magnet track weight | kg/m | 12.2 |
| Continuous force | N | 660 |
| Magnetic attraction | N | 3143 |
| Speed | m/s | 5 |
| Acceleration | m/s² | 50 |
| Coil length | mm | 354 |
| Coil width | mm | 100 |
| Coil height | mm | 47.5 |
| Coil weight | kg | 10 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | SKA DDL 75.990 |
|---|---|---|
| Peak force | N | 2970 |
| Magnet track width | mm | 120 |
| Magnet track height | mm | 14.8 |
| Magnet track weight | kg/m | 12.2 |
| Continuous force | N | 990 |
| Magnetic attraction | N | 4663 |
| Speed | m/s | 5 |
| Acceleration | m/s² | 50 |
| Coil length | mm | 522 |
| Coil width | mm | 100 |
| Coil height | mm | 47.5 |
| Coil weight | kg | 14 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | SKA DDL 100.1200 |
|---|---|---|
| Peak force | N | 3600 |
| Magnet track width | mm | 140 |
| Magnet track height | mm | 14.8 |
| Magnet track weight | kg/m | 14.6 |
| Continuous force | N | 1200 |
| Magnetic attraction | N | 5831 |
| Speed | m/s | 5 |
| Acceleration | m/s² | 50 |
| Coil length | mm | 522 |
| Coil width | mm | 125 |
| Coil height | mm | 47.5 |
| Coil weight | kg | 18 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | SKA DDL 100.1600 |
|---|---|---|
| Peak force | N | 4800 |
| Magnet track width | mm | 140 |
| Magnet track height | mm | 14.8 |
| Magnet track weight | kg/m | 14.6 |
| Continuous force | N | 1600 |
| Magnetic attraction | N | 7774 |
| Speed | m/s | 5 |
| Acceleration | m/s² | 50 |
| Coil length | mm | 690 |
| Coil width | mm | 125 |
| Coil height | mm | 47.5 |
| Coil weight | kg | 25 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | SKA DDL 125.2000 |
|---|---|---|
| Peak force | N | 6000 |
| Magnet track width | mm | 175 |
| Magnet track height | mm | 14.8 |
| Magnet track weight | kg/m | 18 |
| Continuous force | N | 2000 |
| Magnetic attraction | N | 9829 |
| Speed | m/s | 3 |
| Acceleration | m/s² | 50 |
| Coil length | mm | 690 |
| Coil width | mm | 150 |
| Coil height | mm | 47.5 |
| Coil weight | kg | 31 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Parameter | Unit | SKA DDL 150.2400 |
|---|---|---|
| Peak force | N | 7200 |
| Magnet track width | mm | 200 |
| Magnet track height | mm | 14.8 |
| Magnet track weight | kg/m | 21.4 |
| Continuous force | N | 2400 |
| Magnetic attraction | N | 11790 |
| Speed | m/s | 3 |
| Acceleration | m/s² | 50 |
| Coil length | mm | 690 |
| Coil width | mm | 175 |
| Coil height | mm | 47.5 |
| Coil weight | kg | 38 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
