Compact integrated motor with CANopen CiA301 and CiA402. Feedback options include open loop, or closed loop with an incremental or multi-turn absolute encoder with hMTechnology.
Motor size: NEMA 17 (42 mm)
Holding Torque range: ???
Input voltage: +12 to +48 VDC

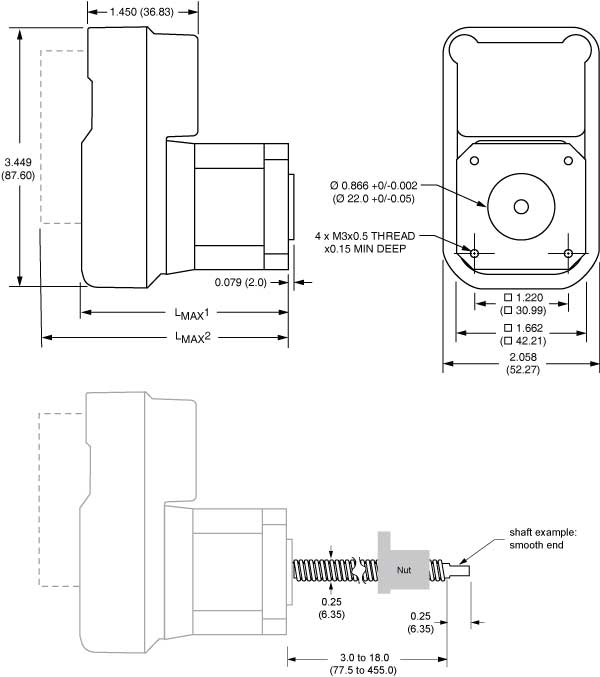

| Parameter | Unit | LMD17 NEMA 17 CANopen External Linear Actuator with M12 Connectors |
|---|---|---|
| Control type | CANopen | |
| Communications interface | CAN Bus 2.0B | |
| Communications features | CANopen DS301, DSP402 | |
| NEMA size | 17 (42×42 mm) | |
| Torque range | Nm | – |
| Temperature heatsink (short-time) | °C | max. 85 |
| IP rating | IP65 | |
| Input voltage | +VDC | +12 to +48 |
| Power supply current requirement | A | 2.0 |
| Aux-logic supply voltage | +VDC | 12 … 24 |
| Aux-logic Supply Current | mA max | 194 |
| Spec | Notes | Value |
|---|---|---|
| Maximum screw misalignment | ° | ±1 |
| General purpose nut max. thrust | kg | 11 |
| General purpose nut max.repeatability | mm | 0.127 |
| Anti-backlash nut max.thrust | kg | 2 |
| Anti-backlash nut max.repeatability | mm | 0.0127 |
| Rotor inertia | kg-cm2 | 0.034 |
| Weight (motor+driver) | g | 386 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
