Description
Graphite Brush

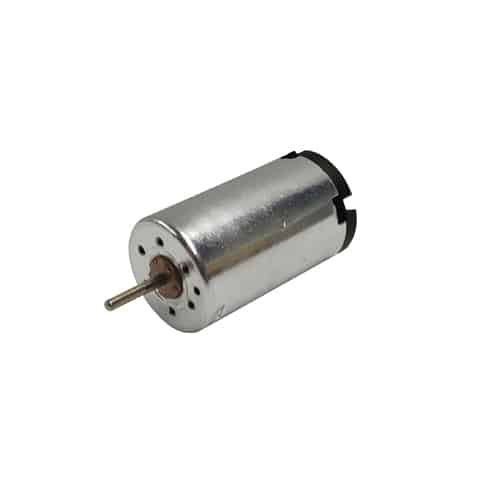

| Specification | C1628R31-0108 |
|---|---|
| Voltage | 12 V |
| No-load speed | 10800 rpm |
| No-load current | 63 mA |
| Stall torque | 5.9 mNm |
| Stall current | 700 mA |
| Load torque | 1.96 mNm |
| Load speed | 7200 rpm |
| Load current | 275 mA |
| Max. output power | 1.67 W |
| Max. efficiency | 47.1 % |
| Torque constant | 9.26 mNm/A |
| Speed/torque gradient | 1831 rpm/mNm |
| Varistor | Yes Yes/No |
| Weight | 20.8 g |
| Operating temperature range | -20~+60 °C |
Applications
small electronic products
smart home
