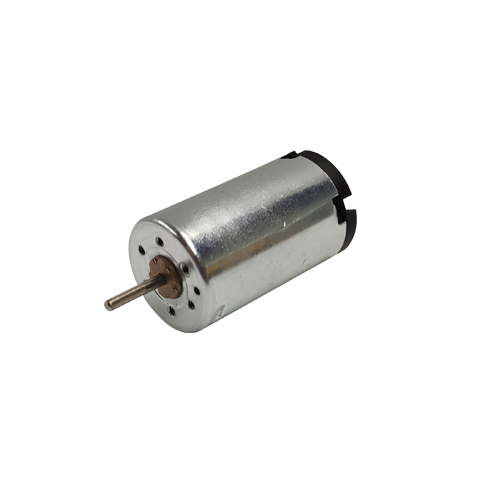

| Motor Characteristics | 12**M7—M—1230N7M**-48-4.5 |
|---|---|
| Voltage | 4.5 V |
| Terminal resistance | 8.5 Ω |
| No-load speed | 4800 rpm |
| No-load current | 15 mA |
| Stall torque | 4.6 mNm |
| Stall current | 530 mA |
| Nominal torque | 2.0 mNm |
| Nominal speed | 2760 rpm |
| Nominal current | 235 mA |
| Back-EMF constant | 0.91 mV/rpm |
| Torque constant | 8.70 mNm/A |
| Gearbox characteristics | Produkt | ||
|---|---|---|---|
| Gearbox stages | 1 | ||
| Reduction ratio | 4 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 2 | ||
| Reduction ratio | 16 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 3 | ||
| Reduction ratio | 64 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 4 | ||
| Reduction ratio | 256 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 5 | ||
| Reduction ratio | 1024 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 6 | ||
| Reduction ratio | 4096 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
| Encoder Characteristics | Produkt | ||
|---|---|---|---|
| Number of channels | 2 | ||
| Counts per turn |
|
||
| Supply voltage |
|
||
| Max. speed |
|
||
| Phase shift |
|
||
| Output signal | TTL | ||
| Diameter |
|
||
| Length |
|
||
| Number of channels | 3 | ||
| Counts per turn |
|
||
| Supply voltage |
|
||
| Max. speed |
|
||
| Phase shift |
|
||
| Output signal | TTL | ||
| Diameter |
|
||
| Length |
|
Applications
medical equipment
intelligent prostheses
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
Produkt
| Specification | 12**M7—M—1230N7M**-48-4.5 |
|---|---|
| Voltage | 4.5 V |
| Terminal resistance | 8.5 Ω |
| No-load speed | 4800 rpm |
| No-load current | 15 mA |
| Stall torque | 4.6 mNm |
| Stall current | 530 mA |
| Nominal torque | 2.0 mNm |
| Nominal speed | 2760 rpm |
| Nominal current | 235 mA |
| Back-EMF constant | 0.91 mV/rpm |
| Torque constant | 8.70 mNm/A |
Applications
medical equipment
intelligent prostheses
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
