Description

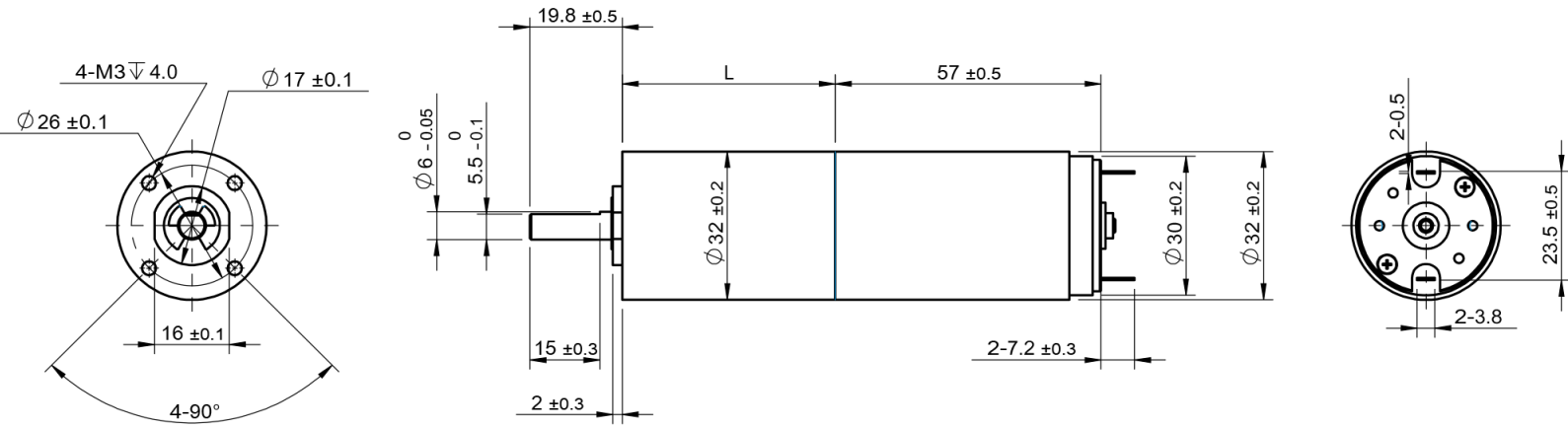

32mm planetary gearbox series
| Parameter | Unit | 32**—32MP—3257N9C2B08-74-12.0 |
|---|---|---|
| Voltage | V | 12.0 |
| Terminal resistance | Ohm | 1.84 |
| No-load speed | rpm | 7400 |
| No-load current | mA | 100 |
| Stall torque | mNm | 397.7 |
| Stall current | mA | 13040 |
| Nominal torque | mNm | 31.8 |
| Nominal speed | rpm | 6810 |
| Nominal current | mA | 1130 |
| Max. output power | W | 77 |
| Max. efficiency | % | 83 |
| Back-EMF constant | mV/rpm | 3.2 |
| Torque constant | mNm/A | 30.7 |
| Speed/torque gradient | rpm/mNm | 18.6 |
| Rotor inertia | g·cm² | 42 |
| Weight | g | 230 |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
