Description

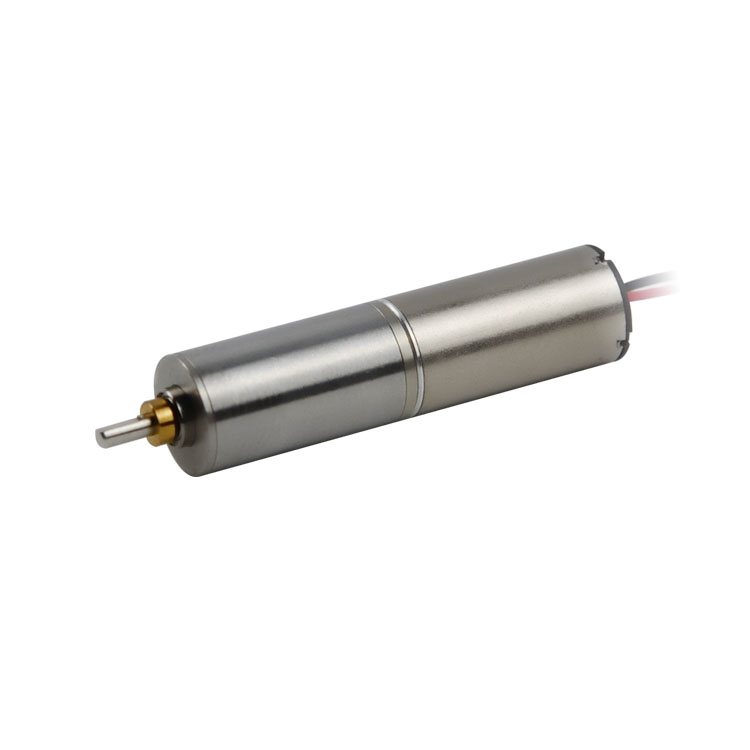

8mm small gear motor
| Specification | 08**—08*P—0816N5M02-137-4.2 |
|---|---|
| Voltage | 4.2 V |
| Terminal resistance | 13.5 Ω |
| No-load speed | 13700 rpm |
| No-load current | 15 mA |
| Stall torque | 0.82 mNm |
| Stall current | 310 mA |
| Nominal torque | 0.25 mNm |
| Nominal speed | 9530 rpm |
| Nominal current | 100 mA |
| Max. output power | 0.30 W |
| Max. efficiency | 61 % |
| Back-EMF constant | 0.3 mV/rpm |
| Torque constant | 2.8 mNm/A |
| Speed/torque gradient | 16700 rpm/mNm |
| Rotor inertia | 0.04 g·cm² |
| Weight | 3.6 g |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
