| Characteristics | B1233NH2B42-200-12.0 | B1233NH2B54-117-24.0 | B1233NH2B55-105-9.0 |
|---|---|---|---|
| Voltage | 12.0 V | 24.0 V | 9.0 V |
| Terminal resistance | 3.3 Ω | 39.3 Ω | 6.7 Ω |
| No-load speed | 20000 rpm | 11700 rpm | 10500 rpm |
| No-load current | 0.15 A | 0.04 A | 0.07 A |
| Stall torque | 19.2 mNm | 10.6 mNm | 9.8 mNm |
| Stall current | 3.6 A | 0.6 A | 1.4 A |
| Nominal torque | 1.1 mNm | 3.0 mNm | 3.0 mNm |
| Nominal speed | 18900 rpm | 8400 rpm | 7300 rpm |
| Nominal current | 0.35 A | 0.2 A | 0.5 A |
| Max. output power | 10 W | 3.3 W | 2.7 W |
| Max. efficiency | 63 % | 57 % | 59 % |
| Back-EMF constant | 0.6 mV/rpm | 1.9 mV/rpm | 0.81 mV/rpm |
| Torque constant | 5.5 mNm/A | 18.5 mNm/A | 7.75 mNm/A |
| KV Value | 1660 rpm/V | 487 rpm/V | 1160 rpm/V |
| Speed/torque gradient | 1040 rpm/mNm | 297 rpm/mNm | 1071 rpm/mNm |
| Rotor inertia | 0.21 gcm² | 0.21 gcm² | 0.21 gcm² |
| Weight | 16 g | 16 g | 16 g |
| Thermal resistance housing-ambient | 24 K/W | 24 K/W | 24 K/W |
| Thermal resistance winding-housing | 4.5 K/W | 4.5 K/W | 4.5 K/W |
| Thermal time constant motor | 240 s | 240 s | 240 s |
| Thermal time constant winding | 2 s | 2 s | 2 s |
| Operating temperature range | -40~+100 | -40~+100 | -40~+100 |
| Thermal class of winding | 155 °C | 155 °C | 155 °C |
| Axial play | 0.012 mm | 0.012 mm | 0.012 mm |
| Radial play | 0.008 mm | 0.008 mm | 0.008 mm |
| Axial load dynamic | 1 N | 1 N | 1 N |
| Axial load static | 25 N | 25 N | 25 N |
| Radial load at 3 mm from mounting face | 6.3 N | 6.3 N | 6.3 N |
| No. of pole pairs | 1 | 1 | 1 |
| Bearings | 2 ball bearings | 2 ball bearings | 2 ball bearings |
| Protection class | 20 IP | 20 IP | 20 IP |
| Commutation | Hall Sensor | Hall Sensor | Hall Sensor |
Applications
industrial automation
medical equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

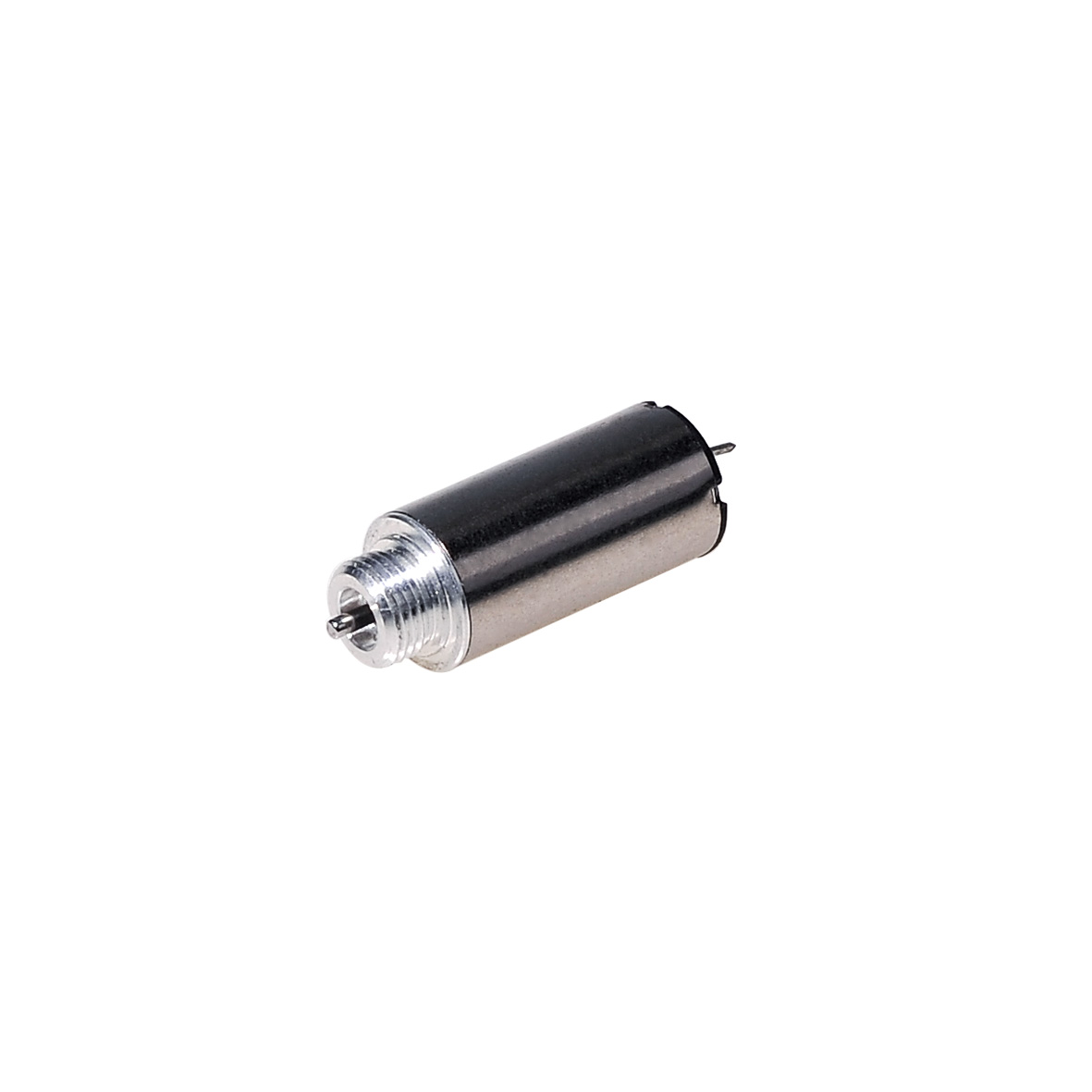

B1233NH2B
| Specification | B1233NH2B42-200-12.0 |
|---|---|
| Voltage | 12.0 V |
| Terminal resistance | 3.3 Ω |
| No-load speed | 20000 rpm |
| No-load current | 0.15 A |
| Stall torque | 19.2 mNm |
| Stall current | 3.6 A |
| Nominal torque | 1.1 mNm |
| Nominal speed | 18900 rpm |
| Nominal current | 0.35 A |
| Max. output power | 10 W |
| Max. efficiency | 63 % |
| Back-EMF constant | 0.6 mV/rpm |
| Torque constant | 5.5 mNm/A |
| KV Value | 1660 rpm/V |
| Speed/torque gradient | 1040 rpm/mNm |
| Rotor inertia | 0.21 gcm² |
| Weight | 16 g |
| Thermal resistance housing-ambient | 24 K/W |
| Thermal resistance winding-housing | 4.5 K/W |
| Thermal time constant motor | 240 s |
| Thermal time constant winding | 2 s |
| Operating temperature range | -40~+100 °C |
| Thermal class of winding | 155 °C |
| Axial play | 0.012 mm |
| Radial play | 0.008 mm |
| Axial load dynamic | 1 N |
| Axial load static | 25 N |
| Radial load at 3 mm from mounting face | 6.3 N |
| No. of pole pairs | 1 |
| Bearings | 2 ball bearings |
| Protection class | 20 IP |
| Commutation | Hall Sensor |
Applications
industrial automation
medical equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
B1233NH2B
| Specification | B1233NH2B54-117-24.0 |
|---|---|
| Voltage | 24.0 V |
| Terminal resistance | 39.3 Ω |
| No-load speed | 11700 rpm |
| No-load current | 0.04 A |
| Stall torque | 10.6 mNm |
| Stall current | 0.6 A |
| Nominal torque | 3.0 mNm |
| Nominal speed | 8400 rpm |
| Nominal current | 0.2 A |
| Max. output power | 3.3 W |
| Max. efficiency | 57 % |
| Back-EMF constant | 1.9 mV/rpm |
| Torque constant | 18.5 mNm/A |
| KV Value | 487 rpm/V |
| Speed/torque gradient | 297 rpm/mNm |
| Rotor inertia | 0.21 gcm² |
| Weight | 16 g |
| Thermal resistance housing-ambient | 24 K/W |
| Thermal resistance winding-housing | 4.5 K/W |
| Thermal time constant motor | 240 s |
| Thermal time constant winding | 2 s |
| Operating temperature range | -40~+100 °C |
| Thermal class of winding | 155 °C |
| Axial play | 0.012 mm |
| Radial play | 0.008 mm |
| Axial load dynamic | 1 N |
| Axial load static | 25 N |
| Radial load at 3 mm from mounting face | 6.3 N |
| No. of pole pairs | 1 |
| Bearings | 2 ball bearings |
| Commutation | Hall Sensor |
| Protection class | 20 IP |
Applications
industrial automation
medical equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
B1233NH2B
| Specification | B1233NH2B55-105-9.0 |
|---|---|
| Voltage | 9.0 V |
| Terminal resistance | 6.7 Ω |
| No-load speed | 10500 rpm |
| No-load current | 0.07 A |
| Stall torque | 9.8 mNm |
| Stall current | 1.4 A |
| Nominal torque | 3.0 mNm |
| Nominal speed | 7300 rpm |
| Nominal current | 0.5 A |
| Max. output power | 2.7 W |
| Max. efficiency | 59 % |
| Back-EMF constant | 0.81 mV/rpm |
| Torque constant | 7.75 mNm/A |
| KV Value | 1160 rpm/V |
| Speed/torque gradient | 1071 rpm/mNm |
| Rotor inertia | 0.21 gcm² |
| Weight | 16 g |
| Thermal resistance housing-ambient | 24 K/W |
| Thermal resistance winding-housing | 4.5 K/W |
| Thermal time constant motor | 240 s |
| Thermal time constant winding | 2 s |
| Operating temperature range | -40~+100 °C |
| Thermal class of winding | 155 °C |
| Axial play | 0.012 mm |
| Radial play | 0.008 mm |
| Axial load dynamic | 1 N |
| Axial load static | 25 N |
| Radial load at 3 mm from mounting face | 6.3 N |
| No. of pole pairs | 1 |
| Bearings | 2 ball bearings |
| Commutation | Hall Sensor |
| Protection class | 20 IP |
Applications
industrial automation
medical equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
