Description

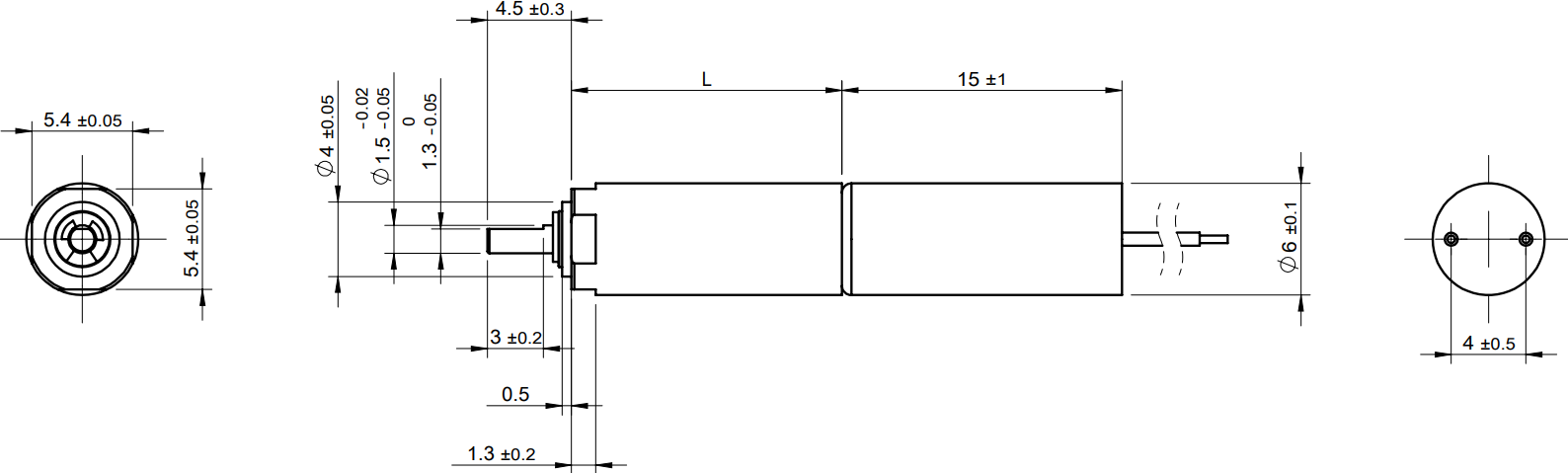

6mm micro DC gear motor
| Specification | 06**—06*P—0615N5M03-295-6.0 |
|---|---|
| Voltage | 6.0 V |
| Terminal resistance | 10.1 Ω |
| No-load speed | 29500 rpm |
| No-load current | 20 mA |
| Stall current | 1.07 mNm |
| Stall current | 590 mA |
| Nominal torque | 0.30 mNm |
| Nominal speed | 21230 rpm |
| Nominal current | 180 mA |
| Max. output power | 0.83 W |
| Max. efficiency | 67 % |
| Back-EMF constant | 0.2 mV/rpm |
| Torque constant | 1.9 mNm/A |
| Speed/torque gradient | 27600 rpm/mNm |
| Rotor inertia | 0.015 g·cm² |
| Weight | 2.5 g |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
