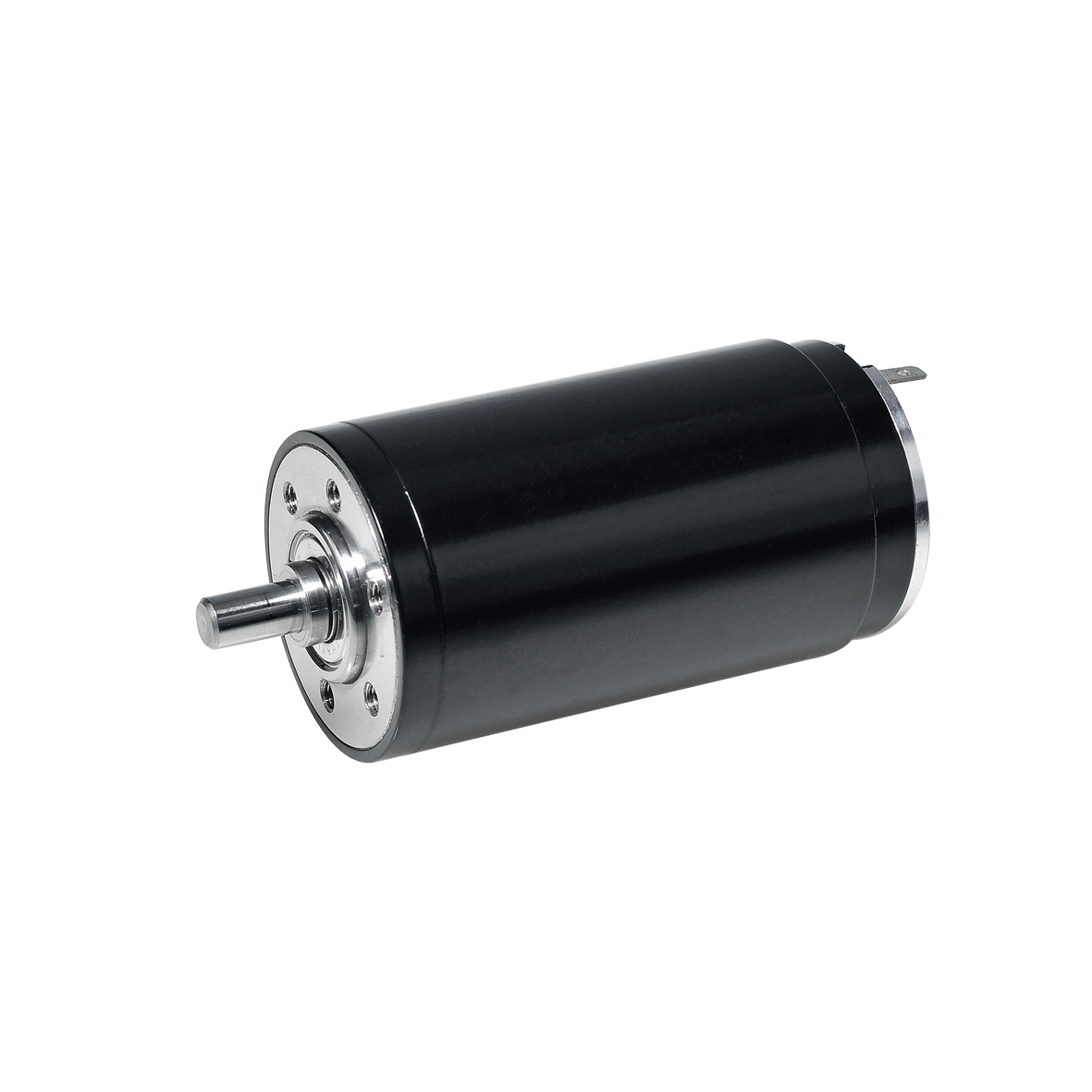

| Characteristics | 0816N5M02-137-4.2 | 0816N5M11-148-6.0 | 0816N5M01-155-8.0 |
|---|---|---|---|
| Voltage | 4.2 V | 6.0 V | 8.0 V |
| Terminal resistance | 13.5 Ω | 25.3 Ω | 60.0 Ω |
| No-load speed | 13700 rpm | 14800 rpm | 15500 rpm |
| No-load current | 15 mA | 7 mA | 6 mA |
| Stall torque | 0.82 mNm | 0.88 mNm | 0.58 mNm |
| Stall current | 310 mA | 240 mA | 130 mA |
| Nominal torque | 0.25 mNm | 0.30 mNm | 0.15 mNm |
| Nominal speed | 9530 rpm | 9730 rpm | 11520 rpm |
| Nominal current | 100 mA | 90 mA | 40 mA |
| Max. output power | 0.30 W | 0.34 W | 0.24 W |
| Max. efficiency | 61 % | 69 % | 62 % |
| Back-EMF constant | 0.3 mV/rpm | 0.4 mV/rpm | 0.5 mV/rpm |
| Torque constant | 2.8 mNm/A | 3.8 mNm/A | 4.7 mNm/A |
| Speed/torque gradient | 16700 rpm/mNm | 16900 rpm/mNm | 26600 rpm/mNm |
| Rotor inertia | 0.04 g·cm² | 0.04 g·cm² | 0.04 g·cm² |
| Weight | 3.6 g | 3.6 g | 3.6 g |
| Thermal resistance housing-ambient | 66.15 K/W | 66.15 K/W | 66.15 K/W |
| Thermal resistance winding-housing | 27.25 K/W | 27.25 K/W | 27.25 K/W |
| Thermal time constant motor | 104 s | 104 s | 104 s |
| Thermal time constant winding | 21 s | 21 s | 21 s |
| Operating temperature range | -20~+85 | -20~+85 | -20~+85 |
| Thermal class of winding | 130 °C | 130 °C | 130 °C |
| Axial play | ≤0.3 | ≤0.3 | ≤0.3 |
| Radial play | 0.012 mm | 0.012 mm | 0.012 mm |
| Axial load dynamic | 0.15 N | 0.15 N | 0.15 N |
| Axial load static | 10 N | 10 N | 10 N |
| Radial load at 3 mm from mounting face | 0.7 N | 0.7 N | 0.7 N |
| No. of pole pairs | 1 | 1 | 1 |
| Bearings | 2 sleeve bearings | 2 sleeve bearings | 2 sleeve bearings |
| Commutator | metal 5 segments | metal 5 segments | metal 5 segments |
| Protection class | 40 IP | 40 IP | 40 IP |
Applications
healthcare products
automotive
robotics
industrial automation
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Specification | 0816N5M02-137-4.2 |
|---|---|
| Voltage | 4.2 V |
| Terminal resistance | 13.5 Ω |
| No-load speed | 13700 rpm |
| No-load current | 15 mA |
| Stall torque | 0.82 mNm |
| Stall current | 310 mA |
| Nominal torque | 0.25 mNm |
| Nominal speed | 9530 rpm |
| Nominal current | 100 mA |
| Max. output power | 0.30 W |
| Max. efficiency | 61 % |
| Back-EMF constant | 0.3 mV/rpm |
| Torque constant | 2.8 mNm/A |
| Speed/torque gradient | 16700 rpm/mNm |
| Rotor inertia | 0.04 g·cm² |
| Weight | 3.6 g |
| Thermal resistance housing-ambient | 66.15 K/W |
| Thermal resistance winding-housing | 27.25 K/W |
| Thermal time constant motor | 104 s |
| Thermal time constant winding | 21 s |
| Operating temperature range | -20~+85 °C |
| Thermal class of winding | 130 °C |
| Axial play | ≤0.3 mm |
| Radial play | 0.012 mm |
| Axial load dynamic | 0.15 N |
| Axial load static | 10 N |
| Radial load at 3 mm from mounting face | 0.7 N |
| No. of pole pairs | 1 |
| Bearings | 2 sleeve bearings |
| Commutator | metal 5 segments |
| Protection class | 40 IP |
Applications
healthcare products
automotive
robotics
industrial automation
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Specification | 0816N5M11-148-6.0 |
|---|---|
| Voltage | 6.0 V |
| Terminal resistance | 25.3 Ω |
| No-load speed | 14800 rpm |
| No-load current | 7 mA |
| Stall torque | 0.88 mNm |
| Stall current | 240 mA |
| Nominal torque | 0.30 mNm |
| Nominal speed | 9730 rpm |
| Nominal current | 90 mA |
| Max. output power | 0.34 W |
| Max. efficiency | 69 % |
| Back-EMF constant | 0.4 mV/rpm |
| Torque constant | 3.8 mNm/A |
| Speed/torque gradient | 16900 rpm/mNm |
| Rotor inertia | 0.04 g·cm² |
| Weight | 3.6 g |
| Thermal resistance housing-ambient | 66.15 K/W |
| Thermal resistance winding-housing | 27.25 K/W |
| Thermal time constant motor | 104 s |
| Thermal time constant winding | 21 s |
| Operating temperature range | -20~+85 °C |
| Thermal class of winding | 130 °C |
| Axial play | ≤0.3 mm |
| Radial play | 0.012 mm |
| Axial load dynamic | 0.15 N |
| Axial load static | 10 N |
| Radial load at 3 mm from mounting face | 0.7 N |
| No. of pole pairs | 1 |
| Bearings | 2 sleeve bearings |
| Commutator | metal 5 segments |
| Protection class | 40 IP |
Applications
healthcare products
automotive
robotics
industrial automation
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Specification | 0816N5M01-155-8.0 |
|---|---|
| Voltage | 8.0 V |
| Terminal resistance | 60.0 Ω |
| No-load speed | 15500 rpm |
| No-load current | 6 mA |
| Stall torque | 0.58 mNm |
| Stall current | 130 mA |
| Nominal torque | 0.15 mNm |
| Nominal speed | 11520 rpm |
| Nominal current | 40 mA |
| Max. output power | 0.24 W |
| Max. efficiency | 62 % |
| Back-EMF constant | 0.5 mV/rpm |
| Torque constant | 4.7 mNm/A |
| Speed/torque gradient | 26600 rpm/mNm |
| Rotor inertia | 0.04 g·cm² |
| Weight | 3.6 g |
| Thermal resistance housing-ambient | 66.15 K/W |
| Thermal resistance winding-housing | 27.25 K/W |
| Thermal time constant motor | 104 s |
| Thermal time constant winding | 21 s |
| Operating temperature range | -20~+85 °C |
| Thermal class of winding | 130 °C |
| Axial play | ≤0.3 mm |
| Radial play | 0.012 mm |
| Axial load dynamic | 0.15 N |
| Axial load static | 10 N |
| Radial load at 3 mm from mounting face | 0.7 N |
| No. of pole pairs | 1 |
| Bearings | 2 sleeve bearings |
| Commutator | metal 5 segments |
| Protection class | 40 IP |
Applications
healthcare products
automotive
robotics
industrial automation
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
