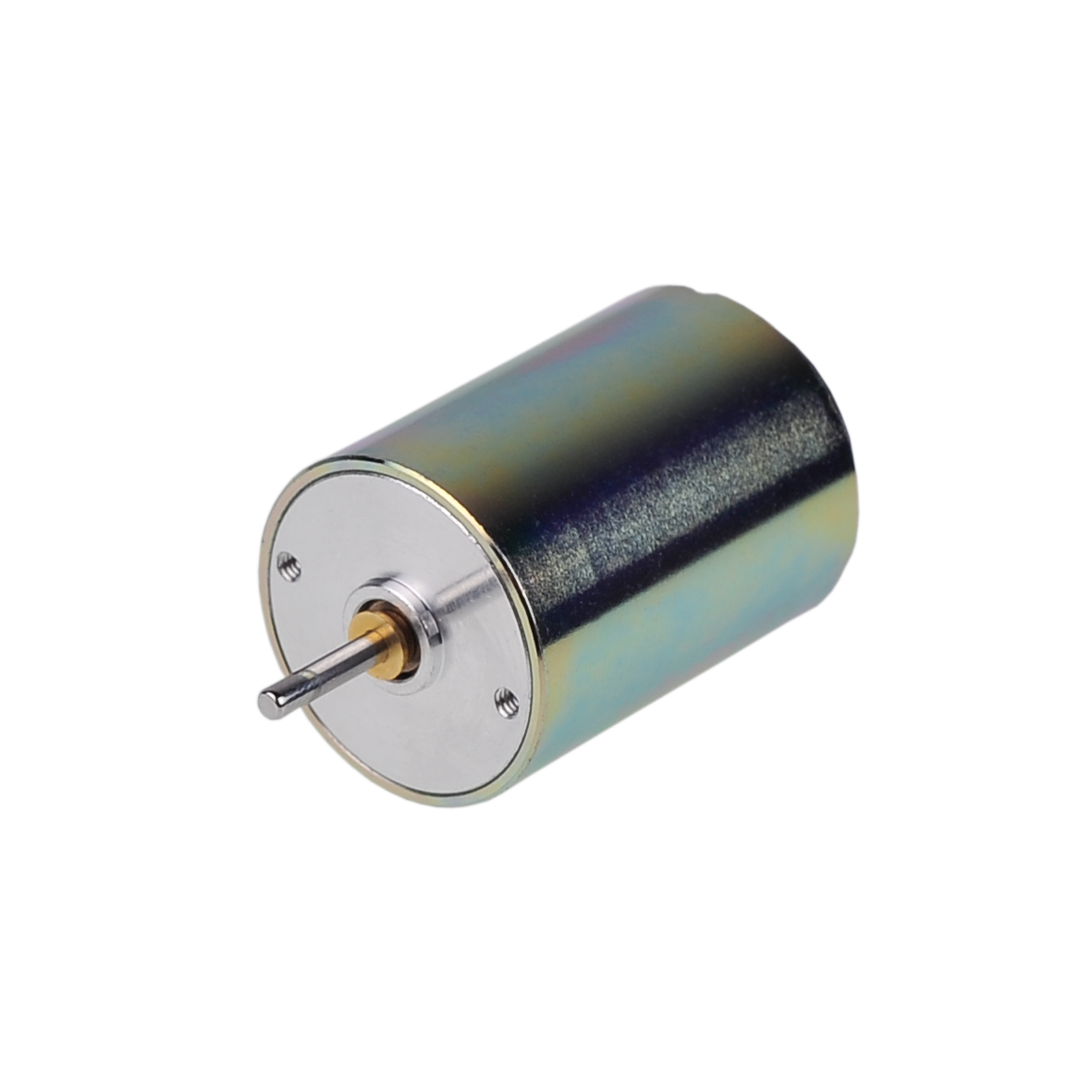

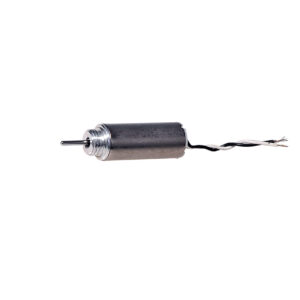

Description
Precious Metal Commutation
| Specification | 2232N5M2B04-100-12.0 |
|---|---|
| Voltage | 12.0 V |
| Terminal resistance | 4.3 Ω |
| No-load speed | 10000 rpm |
| No-load current | 20 mA |
| Stall torque | 31.5 mNm |
| Stall current | 2790 mA |
| Nominal torque | 8.0 mNm |
| Nominal speed | 7460 rpm |
| Nominal current | 720 mA |
| Max. output power | 8.3 W |
| Max. efficiency | 84 % |
| Back-EMF constant | 1.2 mV/rpm |
| Torque constant | 11.4 mNm/A |
| Speed/torque gradient | 320 rpm/mNm |
| Rotor inertia | 4.4 g·cm² |
| Weight | 55.8 g |
| Thermal resistance housing-ambient | 19.4 K/W |
| Thermal resistance winding-housing | 21.7 K/W |
| Thermal time constant motor | 383 s |
| Thermal time constant winding | 329 s |
| Operating temperature range | -20~+85 °C |
| Thermal class of winding | 130 °C |
| Axial play | 0.02~0.15 mm |
| Radial play | 0.025 mm |
| Axial load dynamic | 3.3 N |
| Axial load static | 60 N |
| Radial load at 3 mm from mounting face | 14 N |
| No. of pole pairs | 1 |
| Bearings | 2 ball bearings |
| Commutator | metal 5 segments |
| Protection class | 30 IP |
Applications
medical equipment and devices
healthcare products
automotive
robotics
industrial automation
